N2XH Cable Description

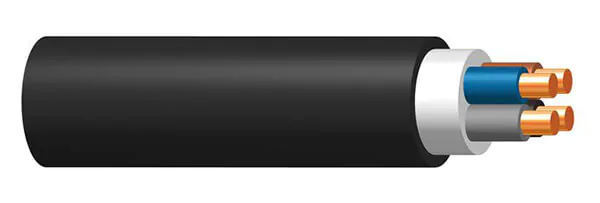

N2XH cables feature copper conductors and XLPE insulation. Their low-smoke, zero-halogen, flame-retardant, non-corrosive (FRNC) outer sheaths prevent the spread of fire and reduce the emission of smoke and corrosive gases, thus limiting the damage caused by fire accidents.
N2XH cables are available with (N2XH-J) or without (N2XH-O) a green/yellow protective conductor.
N2XH Cable Construction
| N2XH IEC 60502-1 XLPE FRNC 0.6/1kV Cable | N2XH Enhanced Flex 0.6/1kV Cable | |
|---|---|---|
| CONDUCTOR | Up to 16mm2: Class 1 Solid Copper Above 16mm2: Class 2 Stranded Copper | Class 5 Flexible Stranded Copper |
| INSULATION | XLPE (Cross-Linked Polyethylene) | |
| OUTER SHEATH | LSZH (Low Smoke Zero Halogen) | LSZH-FRNC (Low Smoke Zero Halogen Flame Retardant Non-Corrosive) |
N2XH Cable Characteristics
| N2XH IEC 60502-1 XLPE FRNC 0.6/1kV Cable | N2XH Enhanced Flex 0.6/1kV Cable | |
|---|---|---|
| Voltage Rating Uo/U | 0.6/1kV | Nominal voltage (AC) U0/U: 0.6/1kV Max operating voltage (DC) U0/U: 0.9/1.8kV |
| Temperature Rating | Fixed: -30°C to +90°C | Fixed: -40°C to +90°C |
| Minimum Bending Radius | During Installation: 15 x overall diameter Fixed: 10 x overall diameter | Fixed: 6x overall diameter |
N2XH Cable Meaning
- N: indicates that the product is designed and manufactured according to VDE standards
- 2X: indicates that the cable uses XLPE (cross-linked polyethylene) insulation
- H: indicates that the cable uses LSZH (low-smoke, zero-halogen) outer sheath
- N2XH IEC 60502-1 XLPE FRNC 0.6/1kV Cable
- N2XH Enhanced Flex 0.6/1kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR TYPE | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 1.5 | RE | 0.7 | 7 | 60 |
| 1 | 2.5 | RE | 0.7 | 8 | 75 |
| 1 | 4 | RM | 0.7 | 8.35 | 90 |
| 1 | 6 | RM | 0.7 | 8.9 | 115 |
| 1 | 10 | RM | 0.7 | 9.65 | 165 |
| 1 | 16 | RM | 0.7 | 10.5 | 230 |
| 1 | 25 | RM | 0.9 | 12.05 | 340 |
| 1 | 35 | RM | 0.9 | 13.1 | 440 |
| 1 | 50 | RM | 1 | 14.5 | 570 |
| 1 | 70 | RM | 1.1 | 16.3 | 795 |
| 1 | 95 | RM | 1.1 | 18 | 1055 |
| 1 | 120 | RM | 1.3 | 19.5 | 1315 |
| 1 | 150 | RM | 1.4 | 21.7 | 1600 |
| 1 | 185 | RM | 1.6 | 23.5 | 1975 |
| 1 | 240 | RM | 1.7 | 26.4 | 2525 |
| 1 | 300 | RM | 1.8 | 28.7 | 3030 |
| 1 | 400 | RM | 2 | 31.9 | 3820 |
| 1 | 500 | RM | 2.2 | 35.3 | 4825 |
| 1 | 630 | RM | 2.4 | 39.6 | 6200 |
| 2 | 1.5 | RE | 0.7 | 9.35 | 125 |
| 2 | 2.5 | RE | 0.7 | 155 | |
| 2 | 4 | RE | 0.7 | 11.05 | 195 |
| 2 | 6 | RE | 0.7 | 12.05 | 295 |
| 2 | 10 | RE | 0.7 | 14.5 | 390 |
| 2 | 16 | RE | 0.7 | 16.4 | 560 |
| 2 | 25 | RM | 0.9 | 19.9 | 850 |
| 2 | 35 | RM | 0.9 | 22.2 | 1010 |
| 2 | 50 | RM | 1 | 25 | 1364 |
| 2 | 70 | RM | 1.1 | 28.8 | 1924 |
| 2 | 95 | RM | 1.1 | 32.6 | 2578 |
| 2 | 120 | RM | 1.3 | 36 | 3307 |
| 2 | 150 | RM | 1.4 | 41.2 | 4005 |
| 2 | 185 | RM | 1.6 | 45.2 | 4964 |
| 2 | 240 | RM | 1.7 | 51.2 | 6503 |
| 2 | 300 | RM | 1.8 | 56.2 | 8219 |
| 3 | 1.5 | RE | 0.7 | 9.8 | 145 |
| 3 | 2.5 | RE | 0.7 | 10.6 | 180 |
| 3 | 4 | RE | 0.7 | 11.65 | 235 |
| 3 | 6 | RE | 0.7 | 12.7 | 325 |
| 3 | 10 | RE | 0.7 | 15.35 | 485 |
| 3 | 16 | RE | 0.7 | 17.4 | 705 |
| 3 | 25 | RM | 0.9 | 21.15 | 1080 |
| 3 | 35 | SM | 0.9 | 23.6 | 1425 |
| 3 | 50 | SM | 1 | 26.65 | 1840 |
| 3 | 70 | SM | 1.1 | 30.7 | 2540 |
| 3 | 95 | SM | 1.1 | 35 | 3430 |
| 3 | 120 | SM | 1.3 | 38.65 | 4440 |
| 3 | 150 | SM | 1.4 | 44 | 5380 |
| 3 | 185 | SM | 1.6 | 48.3 | 6920 |
| 3 | 240 | SM | 1.7 | 55 | 8420 |
| 3 | 300 | SM | 1.8 | 60.3 | 10927 |
| 3 | 400 | SM | 2 | 67.8 | 13709 |
| 3 + E | 45946 | RE | 0.7 | 18.45 | 779 |
| 3 + E | 25/16 | RM | 0.9 | 22.4 | 1175 |
| 3 + E | 35/16 | SM | 0.9 | 24.3 | 1480 |
| 3 + E | 50/25 | SM | 1 | 28 | 2031 |
| 3 + E | 70/35 | SM | 1.1 | 31.9 | 2813 |
| 3 + E | 95/50 | SM | 1.1 | 36.4 | 3772 |
| 3 + E | 120/70 | SM | 1.3 | 40.65 | 4858 |
| 3 + E | 150/70 | SM | 1.4 | 45.4 | 5680 |
| 3 + E | 185/95 | SM | 1.6 | 50.1 | 7082 |
| 3 + E | 240/120 | SM | 1.7 | 56.7 | 9363 |
| 3 + E | 300/150 | SM | 1.9 | 62.6 | 11939 |
| 4 | 1.5 | RE | 0.7 | 10.5 | 170 |
| 4 | 2.5 | RE | 0.7 | 11.4 | 215 |
| 4 | 4 | RE | 0.7 | 12.6 | 290 |
| 4 | 6 | RE | 0.7 | 390 | |
| 4 | 10 | RE | 0.7 | 17 | 600 |
| 4 | 16 | RE | 0.7 | 19 | 870 |
| 4 | 25 | RM | 0.9 | 23.35 | 1365 |
| 4 | 35 | SM | 0.9 | 25.85 | 1875 |
| 4 | 50 | SM | 1 | 29.45 | 2550 |
| 4 | 70 | SM | 1.1 | 34 | 3010 |
| 4 | 95 | SM | 1.1 | 38.75 | 3960 |
| 4 | 120 | SM | 1.3 | 42.55 | 5160 |
| 4 | 150 | SM | 1.4 | 48.7 | 6150 |
| 4 | 185 | SM | 1.6 | 53.45 | 7780 |
| 4 | 240 | SM | 1.7 | 60.9 | 9550 |
| 5 | 1.5 | RE | 0.7 | 11.45 | 195 |
| 5 | 2.5 | RE | 0.7 | 12.45 | 255 |
| 5 | 4 | RE | 0.7 | 13.8 | 345 |
| 5 | 6 | RE | 0.7 | 15.1 | 475 |
| 5 | 10 | RE | 0.7 | 18.6 | 735 |
| 5 | 16 | RE | 0.7 | 21 | 1070 |
| 5 | 25 | RM | 0.9 | 25.7 | 1605 |
| 5 | 35 | RM | 0.9 | 28.7 | 2139 |
| 5 | 50 | RM | 1 | 32.7 | 2870 |
| 5 | 70 | RM | 1.1 | 37.6 | 4054 |
| 5 | 95 | RM | 1.1 | 42.8 | 5415 |
| 5 | 120 | RM | 1.3 | 47.8 | 7039 |
| 5 | 150 | RM | 1.4 | 54.2 | 8447 |
| 5 | 185 | RM | 1.6 | 59 | 10800 |
| 5 | 240 | RM | 1.7 | 69.9 | 14600 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 1.5 | 1.6 | 0.7 | 0.92 | 5.4 | 66 |
| 1 | 2.5 | 2 | 0.7 | 0.92 | 5.8 | 70 |
| 1 | 4 | 2.5 | 0.7 | 0.92 | 6.3 | 74 |
| 1 | 6 | 3 | 0.7 | 0.92 | 6.8 | 95 |
| 1 | 10 | 4.1 | 0.7 | 0.92 | 7.9 | 138 |
| 1 | 16 | 5.25 | 0.7 | 0.92 | 9.1 | 199 |
| 1 | 25 | 6.6 | 0.9 | 0.92 | 10.8 | 288 |
| 1 | 35 | 7.5 | 0.9 | 0.92 | 11.7 | 381 |
| 1 | 50 | 9.25 | 1 | 0.92 | 13.7 | 526 |
| 1 | 70 | 11.2 | 1.1 | 0.92 | 15.8 | 720 |
| 1 | 95 | 12.5 | 1.1 | 1 | 17.3 | 941 |
| 1 | 120 | 14 | 1.2 | 1 | 19 | 1183 |
| 1 | 150 | 15.75 | 1.4 | 1.08 | 21.4 | 1456 |
| 1 | 185 | 18.2 | 160 | 1.12 | 24.2 | 1807 |
| 1 | 240 | 20 | 1.7 | 1.16 | 26.4 | 2295 |
| 1 | 300 | 23.1 | 1.8 | 1.16 | 29.7 | 2846 |
| 1 | 400 | 26.4 | 2 | 1.16 | 33.4 | 3681 |
| 1 | 500 | 29.7 | 2 | 1.24 | 37.3 | 4720 |
| 1 | 630 | 33 | 2 | 1.56 | 41.2 | 6176 |
| 2 | 1.5 | 1.6 | 0.7 | 1.24 | 10 | 147 |
| 2 | 2.5 | 2 | 0.7 | 1.24 | 10.8 | 179 |
| 4 | 2.5 | 0.7 | 1.24 | 11.8 | 226 | |
| 2 | 6 | 3 | 0.7 | 1.24 | 12.8 | 281 |
| 2 | 10 | 4.1 | 0.7 | 1.24 | 15.2 | 412 |
| 2 | 16 | 5.25 | 0.7 | 1.24 | 17.5 | 577 |
| 2 | 25 | 6.6 | 0.9 | 1.24 | 21.4 | 858 |
| 2 | 35 | 7.5 | 0.9 | 1.24 | 23.2 | 1092 |
| 2 | 50 | 9.25 | 1 | 1.24 | 27.1 | 1503 |
| 2 | 70 | 11.2 | 1.1 | 1.24 | 31.6 | 2045 |
| 2 | 95 | 12.5 | 1.1 | 1.4 | 34.8 | 2643 |
| 2 | 120 | 14 | 1.2 | 1.48 | 38.6 | 3318 |
| 2 | 150 | 15.75 | 1.4 | 1.56 | 43.7 | 4146 |
| 2 | 185 | 18.2 | 1.6 | 1.64 | 49.8 | 5215 |
| 2 | 240 | 20 | 1.7 | 1.8 | 54.2 | 6491 |
| 2 | 300 | 23 | 1.8 | 1.8 | 60.8 | 8079 |
| 2 | 400 | 26 | 2 | 2.04 | 67.6 | 10390 |
| 3 | 1.5 | 1.6 | 70 | 1.24 | 10.5 | 165 |
| 3 | 2.5 | 2 | 0.7 | 1.24 | 11.3 | 206 |
| 4 | 2.5 | 0.7 | 1.24 | 12.4 | 266 | |
| 3 | 6 | 3 | 0.7 | 1.4 | 13.5 | 337 |
| 3 | 10 | 4.1 | 0.7 | 1.48 | 16.1 | 503 |
| 3 | 16 | 5.25 | 0.7 | 1.56 | 18.6 | 718 |
| 3 | 25 | 6.60 | 0.9 | 1.64 | 22.7 | 1071 |
| 3 | 35 | 7.5 | 0.9 | 1.24 | 24.7 | 1388 |
| 3 | 50 | 9.25 | 1.1 | 1.24 | 29.1 | 1919 |
| 3 | 70 | 11.2 | 1.1 | 1.32 | 34 | 2603 |
| 3 | 95 | 12.5 | 1.1 | 1.4 | 37.2 | 3423 |
| 3 | 120 | 14 | 1.2 | 1.48 | 41.2 | 4316 |
| 3 | 150 | 15.75 | 1.4 | 1.64 | 46.9 | 5397 |
| 3 | 185 | 18.2 | 1.6 | 1.72 | 53.4 | 6761 |
| 3 | 240 | 20 | 1.7 | 1.88 | 57.9 | 8483 |
| 3 | 300 | 23 | 1.8 | 2.04 | 65.3 | 10583 |
| 3 | 400 | 26 | 2 | 2.24 | 73.2 | 13671 |
| 4 | 1.5 | 1.6 | 0.7 | 1.24 | 11.3 | 193 |
| 4 | 2.5 | 2 | 0.7 | 1.24 | 12.2 | 243 |
| 4 | 4 | 2.5 | 1.1 | 1.24 | 13.4 | 320 |
| 4 | 6 | 3 | 0.7 | 1.24 | 14.6 | 411 |
| 4 | 10 | 4.1 | 0.7 | 1.24 | 17.5 | 620 |
| 4 | 16 | 5.25 | 0.7 | 1.24 | 20.3 | 895 |
| 4 | 25 | 6.6 | 0.9 | 1.24 | 24.9 | 1340 |
| 4 | 35 | 7.5 | 0.9 | 1.24 | 27.3 | 1752 |
| 4 | 50 | 9.25 | 1 | 1.32 | 32 | 2449 |
| 4 | 70 | 11.2 | 1.1 | 1.4 | 37.4 | 3379 |
| 4 | 95 | 12.5 | 1.1 | 1.48 | 41.2 | 4387 |
| 4 | 120 | 14 | 1.2 | 1.64 | 45.9 | 5561 |
| 4 | 150 | 15.75 | 1.4 | 1.72 | 51.9 | 7091 |
| 4 | 185 | 18.2 | 1.6 | 1.88 | 59.2 | 8681 |
| 4 | 240 | 20 | 1.7 | 2.04 | 64.4 | 10919 |
| 4 | 300 | 23 | 1.8 | 2.2 | 72.6 | 13618 |
| 4 | 400 | 26 | 2 | 2.28 | 80.8 | 17511 |
| 5 | 1.5 | 1.6 | 0.7 | 1.24 | 12.3 | 213 |
| 5 | 2.5 | 2 | 0.7 | 1.24 | 13.4 | 278 |
| 5 | 4 | 2.5 | 1.1 | 1.24 | 14.7 | 377 |
| 5 | 6 | 3 | 0.7 | 1.24 | 16.2 | 509 |
| 5 | 10 | 4.1 | 0.7 | 1.24 | 19.3 | 743 |
| 5 | 16 | 5.25 | 0.7 | 1.24 | 22.4 | 1075 |
| 5 | 25 | 6.6 | 0.9 | 1.24 | 27.5 | 1657 |
| 5 | 35 | 7.5 | 0.9 | 1.32 | 30.1 | 2154 |
| 5 | 50 | 9.25 | 1 | 1.4 | 35.6 | 3002 |
| 5 | 70 | 11.2 | 1.1 | 1.48 | 41.6 | 4121 |
| 5 | 95 | 12.5 | 1.1 | 1.64 | 45.9 | 5390 |
| 5 | 120 | 14 | 1.2 | 1.72 | 50.9 | 6782 |
| 5 | 150 | 15.75 | 1.4 | 1.88 | 57.5 | 8515 |
| 5 | 185 | 18.2 | 1.6 | 2.04 | 65.8 | 10679 |
| 5 | 240 | 20 | 1.7 | 2.2 | 71.6 | 13602 |
| 5 | 300 | 23 | 1.8 | 2.24 | 80.2 | 16906 |
| 7 | 6 | 3.1 | 0.7 | 1.24 | 19 | 675 |
| 7 | 10 | 4.1 | 0.7 | 1.24 | 22 | 1005 |
