H1Z2Z2-K Cable Description
H1Z2Z2-K cables are manufactured according to European standard EN 50618, featuring a double-insulated design with UV resistance, water resistance (AD8 rating), and abrasion and impact resistance. Its low-smoke halogen-free (LSZH) insulation and sheath make it suitable for locations where corrosive fumes may endanger personal safety during a fire.
The compounds used in the insulation and outer sheath of H1Z2Z2-K cables are halogen-free cross-linked compounds; hence, these cables are called “cross-linked solar cables.” They have high voltage resistance (up to 1.5kV DC), excellent fire resistance (CPR Cca), and a long service life, making them a durable and safe choice for interconnecting solar panels.

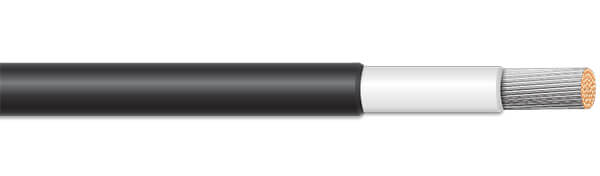

H1Z2Z2-K Cable Construction
- Conductor
- Class 5 Flexible Stranded Tinned Copper
- Insulation
- Halogen-Free Cross-Linked Compound
- Outer Sheath
- Halogen-Free Cross-Linked, Flame Retardant Compound
H1Z2Z2-K Cable Characteristics
- Voltage Rating Uo/U
- AC: 1000/1000V
- DC: 1500/1500V
- Maximum Voltage (Umax)
- 1800V
- Temperature Rating
- Fixed: -40°C to +90°C
- Minimum Bending Radius
- 5 x overall diameter
H1Z2Z2-K Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | TENSILE STRENGTH IN OPERATION N |
|---|---|---|---|---|
| 1 | 1.5 | 4.6 | 36 | 22 |
| 1 | 2.5 | 5 | 46 | 37 |
| 1 | 4 | 5.6 | 62 | 60 |
| 1 | 6 | 6.1 | 82 | 90 |
| 1 | 10 | 7.1 | 125 | 150 |
| 1 | 16 | 8.5 | 190 | 240 |
| 1 | 25 | 10.4 | 285 | 375 |
| 1 | 35 | 11.5 | 385 | 525 |
| 1 | 50 | 13.7 | 540 | 750 |
| 1 | 70 | 15.8 | 740 | 1050 |
| 1 | 95 | 17.3 | 965 | 1350 |
| 1 | 120 | 19.1 | 1210 | 1800 |
| 1 | 150 | 21.4 | 1495 | 2250 |
| 1 | 185 | 24.9 | 1885 | 2775 |
| 1 | 240 | 27.3 | 2395 | 3600 |
