Profibus Cable Description

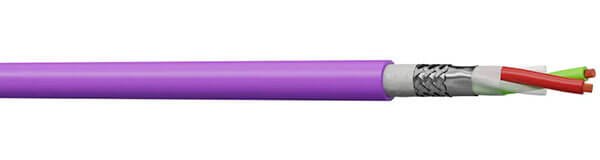

Profibus cables feature a dual-core design (red and green) with a polyvinyl chloride (PVC), low-smoke halogen-free (LSZH), or low-smoke halogen-free flame-retardant non-corrosive (LSZH-FRNC) outer sheath. They also feature double shielding (aluminum foil and braided layers) for effective protection against electromagnetic interference (EMI). They provide excellent power delivery performance for distributed peripheral (DP) and process automation (PA) applications.
There are two types of Profibus cables, primarily distinguished by their application areas. Profibus DP is considered the standard protocol, designed for time-critical communication between process automation systems and distributed peripherals, and is widely used in field communication within plant processes and cellular networks.
Profibus PA, on the other hand, is a subset of this standard, designed specifically for connecting control systems to field instruments in process automation applications. It uses segmented couplers to achieve transparent communication between general automation networks and process automation networks.
Profibus Cable Construction
| Profibus DP FC L2/FIP PVC Cable | Profibus DP FC L2/FIP LSZH Cable | Profibus PA FRNC-LSZH Cable | Profibus PA PVC Cable | Profibus DP LSZH SWB Cable | Profibus PA LSZH SWB Cable | |
|---|---|---|---|---|---|---|
| Conductor | Solid Bare Copper Wire (22/1AWG) | Solid Bare Copper Wire (18/1AWG) | Class 1 Solid Copper | |||
| Insulation | Foam-skin PE (Polyethylene) | Solid PE (Polyethylene) | Foam-skin PE (Polyethylene) | |||
| Separator | PET (Polyester Tape) | |||||
| Inner Sheath | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) | - | LSZH-FRNC (Low Smoke Zero Halogen Flame Retardant Non-Corrosive) | ||
| Filler | - | LSZH (Low Smoke Zero Halogen) | PET (Polyethylene Terephthalate) Fibres | HFFR (Halogen Free Flame Retardant) | ||
| Screen | Al/PET (Aluminium/Polyester Tape) | |||||
| Braid | TCWB (Tinned Copper Wires Braid) 60% Coverage | TCWB (Tinned Copper Wire Braid) | ||||
| Armour | - | GSWB (Galvanized Steel Wire Braid) | ||||
| Outer Sheath | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) | LSZH-FRNC (Low Smoke Zero Halogen Flame Retardant Non-Corrosive) | ||
Profibus Cable Characteristics
| Profibus DP FC L2/FIP PVC Cable | Profibus DP FC L2/FIP LSZH Cable | Profibus PA FRNC-LSZH Cable | Profibus PA PVC Cable | Profibus DP LSZH SWB Cable | Profibus PA LSZH SWB Cable | |
|---|---|---|---|---|---|---|
| Voltage | 300V | |||||
| Temperature Rating | Fixed: -40°C to +70°C Flexing: -10°C to +50°C | Fixed: -30°C to +80°C | Fixed: -40°C to +80ºC | Fixed: -30°C to +80ºC | ||
| Minimum Bending Radius | Fixed: 12 x overall diameter | Fixed: 10 x overall diameter | Fixed: 15 x overall diameter | |||
- Profibus DP FC L2/FIP PVC Cable
- Profibus DP FC L2/FIP LSZH Cable
- Profibus PA FRNC-LSZH Cable
- Profibus PA PVC Cable
- Profibus DP LSZH SWB Cable
- Profibus PA LSZH SWB Cable
| NO. OF PAIRS | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL DIAMETER OF INSULATION mm | NOMINAL OUTER DIAMETER OF INNER SHEATH mm | NOMINAL DIAMETER OF OUTER SHEATH mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 0.35 | 0.64 | 2.5 | 5.5 | 7.9 | 76 |
| NO. OF PAIRS | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL DIAMETER OF INSULATION mm | NOMINAL OUTER DIAMETER OF INNER SHEATH mm | NOMINAL DIAMETER OF OUTER SHEATH mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 0.35 | 0.64 | 2.5 | 5.5 | 7.9 | 76 |
| NO. OF PAIRS | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL DIAMETER OF INSULATION mm | NOMINAL OUTER DIAMETER OF FILLER SHEATH mm | NOMINAL DIAMETER OF OUTER SHEATH mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 0.85 | 1.04 | 2.5 | 5.5 | 7.6 | 89 |
| NO. OF PAIRS | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL DIAMETER OF INSULATION mm | NOMINAL OUTER DIAMETER OF FILLER SHEATH mm | NOMINAL DIAMETER OF OUTER SHEATH mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 0.85 | 1.04 | 2.5 | 5.5 | 7.6 | 89 |
| NO. OF PAIRS | DIAMETER OF CONDUCTOR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 0.64 | 11.2 | 175 |
| NO. OF PAIRS | DIAMETER OF CONDUCTOR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 0.85 | 11 | 190 |
