SZ-K Cable Description
SZ-K cables use silicone rubber insulation, capable of withstanding extremely high thermal stress (up to 150°C), making them ideal for demanding industrial environments. The cable is flame-retardant, producing minimal smoke and no toxic gases when burning.
It is resistant to UV radiation, chemical reagents, and low temperatures, making it suitable for both indoor and outdoor installations. It is commonly used in fire alarms, emergency circuits, ventilation systems, and other industrial machinery with extremely high fire safety requirements.

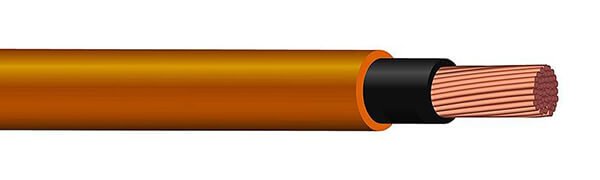

SZ-K Cable Construction
- Conductor
- Copper, class 5 (flexible)
- Separator
- Polyester tape applied over the conductor
- Insulation
- Silicone rubber
- Outer sheath
- Rubber LSZH
SZ-K Cable Characteristics
- Voltage Rating
- 0,6/1 kV
- 1,8/3 kV
- Thermal performance
- Maximum conductor temperature: 150ºC.
- Maximum short-circuit temperature: 350ºC (max. 5 s)
- Minimum service temperature: -40ºC
- Minimum bending radius
- 5x cable diameter
SZ-K Cable Specifications
| Cross-section (mm²) | Conductor Diameter (mm) | Insulation thickness (mm) | Outer sheath thickness (mm) | External Diameter (mm) | Weight (kg/km) | Maximum R 20°C (Ω/km) |
|---|---|---|---|---|---|---|
| SZ-K (AS) 0,6/1 kV | ||||||
| 1 x 25 (4 AWG) | 6,4 | 1,2 | 1,4 | 11,6 | 315 | 0,780 |
| 1 x 35 (2 AWG) | 7,5 | 1,2 | 1,4 | 12,7 | 410 | 0,554 |
| 1 x 50 (1 AWG) | 9,0 | 1,4 | 1,4 | 14,6 | 560 | 0,386 |
| 1 x 70 (2/0 AWG) | 10,5 | 1,4 | 1,5 | 16,3 | 755 | 0,272 |
| 1 x 95 (3/0 AWG) | 12,2 | 1,6 | 1,5 | 18,4 | 980 | 0,206 |
| 1 x 120 (4/0 AWG) | 13,7 | 1,6 | 1,6 | 20,1 | 1.225 | 0,161 |
| 1 x 150 (250 MCM) | 15,4 | 1,8 | 1,7 | 22,4 | 1.52 | 0,129 |
| 1 x 185 (350 MCM) | 16,5 | 2,0 | 1,8 | 24,1 | 1.83 | 0,106 |
| 1 x 240 (450 MCM) | 19,5 | 2,2 | 1,8 | 27,5 | 2.38 | 0,0801 |
| 1 x 300 (550 MCM) | 22,1 | 2,4 | 2,0 | 30,9 | 3.025 | 0,0641 |
| 1 x 400 (750 MCM) | 26,0 | 2,6 | 2,1 | 35,4 | 3.96 | 0,0486 |
| SZ-K (AS) 1,8/3 kV | ||||||
| 1 x 25 (4 AWG) | 6,4 | 2,2 | 1,4 | 13,6 | 370 | 0,780 |
| 1 x 35 (2 AWG) | 7,5 | 2,2 | 1,4 | 14,7 | 475 | 0,554 |
| 1 x 50 (1 AWG) | 9,0 | 2,2 | 1,5 | 16,4 | 625 | 0,386 |
| 1 x 70 (2/0 AWG) | 10,5 | 2,2 | 1,5 | 17,9 | 815 | 0,272 |
| 1 x 95 (3/0 AWG) | 12,2 | 2,4 | 1,6 | 20,2 | 1.06 | 0,206 |
| 1 x 120 (4/0 AWG) | 13,7 | 2,4 | 1,7 | 21,9 | 1.31 | 0,161 |
| 1 x 150 (250 MCM) | 15,4 | 2,4 | 1,7 | 23,6 | 1.585 | 0,129 |
| 1 x 185 (350 MCM) | 16,5 | 2,4 | 1,8 | 24,9 | 1.87 | 0,106 |
| 1 x 240 (450 MCM) | 19,5 | 2,4 | 1,9 | 28,1 | 2.42 | 0,0801 |
| 1 x 300 (550 MCM) | 22,1 | 2,4 | 2,0 | 30,9 | 3.025 | 0,0641 |
| 1 x 400 (750 MCM) | 26,0 | 2,6 | 2,1 | 35,4 | 3.96 | 0,0486 |
