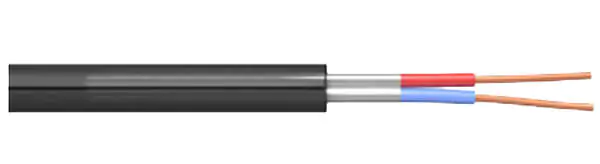

Twin Datalink Cable

Twin Datalink Cable is a specific type of railway cable used in Solid State Interlocking (SSI) systems. It is designed as an interconnect cable and is primarily used in railway signaling and control systems.

Twin Datalink Cable Description

Twin Datalink Cable is manufactured to standards such as BR1932 from Network Rail. 6/166063 Data Link Cable has an LSZH sheath and is suitable for use in tunnels and stations.

These cables allow trackside data transfer between the Main Processor Module (MPM) and the Trackside Functional Module (TFM) (signal module or turnout module) via a Data Link Module (DLM).

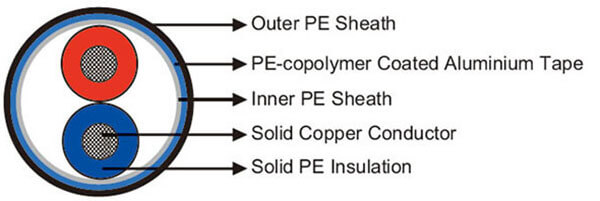

Twin Datalink Cable Construction

	Railway Cables - BR1932 Twin Datalink Cable	Railway cables - LSZH Twin Datalink Cable [A-2Y2Y(L)H]
CONDUCTOR	Class 1 Solid Copper
INSULATION	PE (Polyethylene)
WRAPPING	-	Polyester Tape
BEDDING	PE (Polyethylene)
MOISTURE BARRIER	Al/PET (Aluminium Polyethylene) Tape
OUTER SHEATH	PE (Polyethylene)	LSZH (Low Smoke Zero Halogen)

Twin Datalink Cable Characteristics

	Railway Cables - BR1932 Twin Datalink Cable	Railway cables - LSZH Twin Datalink Cable [A-2Y2Y(L)H]
Voltage Rating (Uo/U)	-	0.65/1.1kV
Minimum Bending Radius	6 x overall diameter	-
Core Identification	-	1 Pair: Red, Blue
Sheath Colour	Black, Blue

Twin Datalink Cable Applications

Trackside
Primarily intended for external trackside installation in railway environments.
Troughing or Direct Burial
It can be installed in troughing or directly buried in the ground, with a thicker outer sheath when buried.

BR1932 Twin Datalink Cable

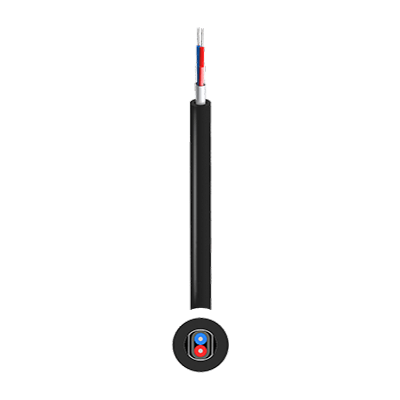

Railway Cables - BR1932 Twin Datalink Cable

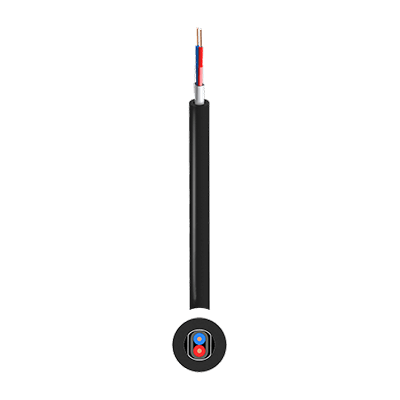

Railway Cables - LSZH Twin Datalink Cable [A-2Y2Y(L)H]

RAIL CATALOGUE NO.	NO. OF PAIRS	NOMINAL DIAMETER OF STRANDS mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SHEATH mm	MAXIMUM OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
6/166065	1	1.27	0.6	2.5	12.5	190
BLU6/166065	1	1.27	0.6	2.5	12.5	190

SHEATH COLOUR	NO. OF PAIRS	THICKNESS OF INNER SHEATH mm	NOMINAL DIAMETER OVER INSULATION mm	THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
Black	1	0.6	2.6	2.5	12.5	190
Blue	1	0.6	2.6	2.5	12.5	190
