XCMK-HF Cable Description
XCMK-HF cables feature copper conductors, cross-linked polyethylene insulation, and a halogen-free, flame-retardant sheath. Manufactured according to Finnish standard SFS 5546, they can be directly buried. These cables meet fire safety standards for low smoke and low corrosive gas emissions during fires.

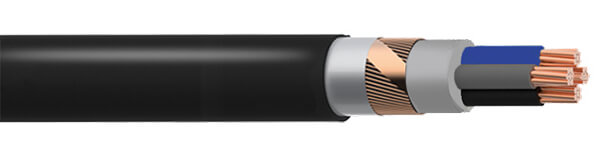

XCMK-HF Cable Construction
- Conductor
- Up to 6 mm²: Class 1 Circular, solid copper
- Up to 10 mm² Class 2 Circular, stranded copper
- Above 35mm²: Class 2 Sector-shaped, stranded copper
- Insulation
- XPLE compound (Cross-Linked Polyethylene)
- Filler
- HFFR compound (Halogen-free flame retardant) or tape
- Screen
- Copper wires and copper tape
- Sheath
- Halogen free polyolefin
XCMK-HF Cable Characteristics
- Voltage Rating
- 0.6/1 (1.2)kV
- Temperature Rating
- Operating: -15ºC to +90ºC
- Short Circuit Temperature
- +250°C
- Minimum Bending Radius
- 10 x overall diameter
XCMK-HF Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 3 | 1.5/1.5 | 14 | 210 |
| 3 | 2.5/2.5 | 15 | 260 |
| 3 | 6/6 | 17 | 450 |
| 3 | 10/10 | 21 | 670 |
| 3 | 16/16 | 24 | 970 |
| 3 | 25/16 | 26 | 1330 |
| 3 | 35/16 | 28 | 1360 |
| 3 | 50/25 | 29 | 1860 |
| 3 | 70/35 | 33 | 2560 |
| 3 | 95/50 | 37 | 3440 |
| 3 | 120/70 | 39 | 4350 |
| 3 | 150/70 | 43 | 5150 |
| 3 | 185/95 | 48 | 6600 |
| 3 | 240/120 | 54 | 8450 |
| 4 | 1.5/1.5 | 14 | 240 |
| 4 | 2.5/2.5 | 15 | 300 |
| 4 | 6/6 | 19 | 530 |
| 4 | 10/10 | 23 | 810 |
| 4 | 16/16 | 26 | 1160 |
| 4 | 25/16 | 28 | 1600 |
| 4 | 35/16 | 30 | 1710 |
| 4 | 50/25 | 31 | 2340 |
| 4 | 70/35 | 35 | 3230 |
| 4 | 95/50 | 39 | 4360 |
| 4 | 120/70 | 43 | 5510 |
| 4 | 150/70 | 47 | 6650 |
| 4 | 185/95 | 54 | 8460 |
| 4 | 240/120 | 60 | 10960 |
