XZ1 Cable

XZ1 Cable Description

XZ1 cable features cross-linked polyethylene (XLPE) insulation and a low-smoke halogen-free polyolefin (LSZH) sheath, preventing the release of toxic gases or corrosive fumes in the event of a fire, thus protecting public safety.

XZ1 AL features an aluminum construction, making it lightweight, cost-effective, and corrosion-resistant, an ideal alternative to copper cables, reducing material and installation costs while maintaining high performance in harsh environments. XZ1-K offers excellent resistance to chemical corrosion, oil, and water (AD6), making it the preferred choice for marine cable applications.

XZ1 Cable Construction

	XZ1(S)-AL	XZ1-K (AS)
Conductor	Aluminium class 2	Copper, class 5 (flexible)
Insulation	(XLPE) Cross-linked polyethylene
Outer Sheath	Polyolefin LSZH (Low Smoke Zero Halogen)

XZ1 Cable Characteristics

	XZ1(S)-AL	XZ1-K (AS)
Voltage Rating	0,6/1 kV
Thermal performance	Maximum conductor temperature: 90°C. Maximum short-circuit temperature: 250°C Minimum service temperature: -40°C Minimum installation and handling temperature: 0°C	Maximum conductor temperature: 90°C. Maximum short-circuit temperature: 250°C Lowest installation temperature: -15°C Minimum service temperature: -40°C
Mechanical performance	Minimum bending radius: 5x cable diameter	Minimum bending radius: ≤25mm: 4x cable diameter >25mm: 6x cable diameter

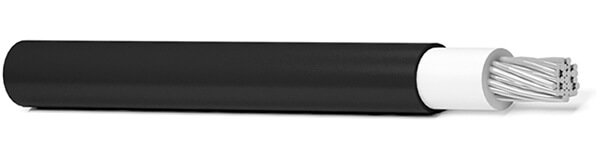

XZ1(S)-AL
XZ1-K (AS)

Cross-section (mm²)	Diameter (mm)	Weight (Kg/km)	R20°C (Ω/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 95	18,1	410	0,320	289	204	0,820
1 x 120	19,9	525	0,253	337	233	0,648
1 x 150	21,1	590	0,206	389	261	0,528
1 x 185	23,4	745	0,164	447	296	0,420
1 x 240	25,6	910	0,125	530	343	0,320
1 x 300	27,8	1.085	0,100	613	386	0,256
1 x 400	33,2	1.46	0,0778	740	445	0,199

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open Air (A)	R20ºC (W/km)	Voltage drop (V/A·km)
1 x 2,5	6,1	55	25	7,98	17,7
1 x 4	6,7	75	35	4,95	11,0
1 x 6	7,2	95	46	3,3	7,32
1 x 10	8,2	135	64	1,91	4,23
1 x 16	9,2	190	88	1,21	2,68
1 x 25	10,9	285	117	0,78	1,73
1 x 35	11,8	380	147	0,554	1,23
1 x 50	13,5	520	180	0,386	0,86
1 x 70	15,4	710	233	0,272	0,603
1 x 95	17,2	925	285	0,206	0,457
1 x 120	19,1	1.165	333	0,161	0,357
1 x 150	21,3	1.445	386	0,129	0,286
1 x 185	23,4	1.74	444	0,106	0,235
1 x 240	26,3	2.275	528	0,0801	0,178
1 x 300	29,1	2.87	612	0,0641	0,142
1 x 400	34,0	3.8	716	0,0486	0,108
1 x 500	37,7	4.855	823	0,0384	0,085
2 x 1,5	7,3	80	23	13,3	34,0
2 x 2,5	8,6	115	31	7,98	20,4
2 x 4	9,6	155	43	4,95	12,7
2 x 6	10,5	205	55	3,3	8,45
2 x 10	13,3	350	75	1,91	4,89
2 x 16	14,8	460	100	1,21	3,1
3 x 1,5	8,1	100	23	13,3	34,0
3 x 2,5	9,0	140	31	7,98	20,4
3 x 4	10,3	195	43	4,95	12,7
3 x 6	11,5	260	55	3,3	8,45
3 x 10	14,6	435	75	1,91	4,89
3 x 16	16,8	645	87	1,21	2,68
3 x 25	20,7	975	110	0,780	1,73
3 x 35	23,5	1.305	137	0,554	1,23
3 x 50	27,1	1.8	167	0,386	0,86
3 x 70	30,6	2.47	214	0,272	0,603
3 x 95	35,0	3.18	259	0,206	0,457
3 x 120	39,3	4.045	301	0,161	0,357
3 x 150	44,7	5.075	347	0,129	0,286
3 x 185	49,9	6.265	397	0,106	0,235
3 x 240	55,8	8.035	468	0,0801	0,178
4 x 1,5	9,0	125	20	13,3	29,5
4 x 2,5	9,8	170	28	7,98	17,7
4 x 4	11,5	245	37	4,95	11,0
4 x 6	12,8	325	47	3,3	7,32
4 x 10	15,5	520	65	1,91	4,23
4 x 16	18,2	770	87	1,21	2,68
4 x 25	23,4	1.225	110	0,780	1,73
4 x 35	25,2	1.625	137	0,554	1,23
4 x 50	30,1	2.27	167	0,386	0,86
4 x 70	35	3.15	214	0,272	0,603
4 x 95	40,3	4.16	259	0,206	0,457
4 x 120	44,6	5.21	301	0,161	0,357
4 x 150	49,7	6.51	347	0,129	0,286
4 x 185	55,2	7.91	397	0,106	0,235
4 x 240	62,1	10.3	468	0,0801	0,178
5 x 1,5	9,6	145	20	13,3	29,5
5 x 2,5	11,0	210	28	7,98	17,7
5 x 4	12,7	295	37	4,95	11,0
5 x 6	14,2	400	47	3,3	7,32
5 x 10	17,2	635	65	1,91	4,23
5 x 16	20,2	950	87	1,21	2,68
5 x 25	25,7	1.51	110	0,780	1,73
5 x 35	28,3	2.015	137	0,554	1,23
5 x 50	33,7	2.795	167	0,386	0,86
5 x 70	38,8	3.87	214	0,272	0,603
7 x 1,5	10,4	185	11	13,3	29,5
7 x 2,5	12,3	265	15	7,98	17,7
12 x 1,5	13,5	295	9	13,3	29,5
14 x 1,5	14,5	340	8,5	13,3	29,5
16 x 1,5	15,5	385	8	13,3	29,5
19 x 1,5	16,3	445	7,5	13,3	29,5
19 x 2,5	19,3	650	11	7,98	17,7
24 x 1,5	18,2	540	7	13,3	29,5
27 x 1,5	19,6	600	6,5	13,3	29,5
