YMvK mb Cable Description
YMvK mb cable is manufactured according to HD 604-S1-4D and must comply with the Dutch national standard NEN 1010. It is suitable for 0.6/1kV low-voltage applications, featuring copper conductors, cross-linked polyethylene insulation, and a flame-retardant PVC sheath.
“-mb” indicates that this cable is a “low-smoke, halogen-free” version of the standard YMVK cable, featuring flame-retardant properties, and is suitable for high-fire-risk locations, such as public buildings and hazardous industries.

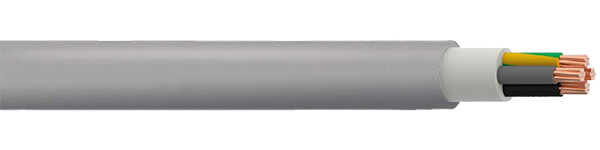

YMvK mb Cable Construction
- Conductor
- Up to 10mm²: Class 1 Solid copper
- 16mm² and above: Class 2 Stranded copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Filler
- PVC (Polyvinyl chloride)
- Outer Sheath
- PVC FR (Polyvinyl chloride Flame Retardant)
YMvK mb Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- Operating: -15ºC to +90ºC
- Short Circuit Temperature
- +250°C
- Minimum Bending Radius
- 12 x overall diameter
YMvK mb Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 10 | 3.85 | 0.7 | 1.8 | 8.1 | 141 |
| 1 | 16 | 4.8 | 0.7 | 1.8 | 9.8 | 218 |
| 1 | 25 | 5.8 | 0.9 | 1.8 | 11.2 | 314 |
| 1 | 35 | 6.9 | 0.9 | 1.8 | 12.3 | 412 |
| 1 | 50 | 8.2 | 1 | 1.8 | 13.8 | 541 |
| 1 | 70 | 9.7 | 1.1 | 1.8 | 15.5 | 749 |
| 1 | 95 | 11.4 | 1.1 | 1.9 | 17.2 | 994 |
| 1 | 120 | 13.1 | 1.2 | 2.1 | 19.1 | 1241 |
| 1 | 150 | 14.2 | 1.4 | 2.2 | 20.6 | 1508 |
| 1 | 185 | 15.8 | 1.6 | 2.3 | 22.6 | 1863 |
| 1 | 240 | 18.6 | 1.8 | 2.5 | 25.6 | 2409 |
| 1 | 300 | 20.4 | 1.8 | 2.7 | 27.6 | 3042 |
| 1 | 400 | 25 | 2.2 | 2.8 | 33.4 | 3880 |
| 2 | 1.5 | 1.37 | 0.7 | 1.8 | 11.5 | 121 |
| 2 | 2.5 | 1.76 | 0.7 | 1.8 | 11.8 | 151 |
| 2 | 4 | 2.21 | 0.7 | 1.8 | 13.5 | 197 |
| 2 | 6 | 2.71 | 0.7 | 1.8 | 14.5 | 251 |
| 2 | 10 | 3.85 | 0.7 | 1.8 | 14.8 | 375 |
| 2 | 16 | 4.8 | 0.7 | 1.8 | 19 | 531 |
| 2 | 25 | 5.8 | 0.9 | 1.8 | 23 | 795 |
| 2 | 35 | 6.9 | 0.9 | 1.8 | 25 | 1039 |
| 2 | 50 | 8.2 | 1 | 1.8 | 28 | 1411 |
| 3 | 1.5 | 1.37 | 0.7 | 1.8 | 11.7 | 130 |
| 3 | 2.5 | 1.76 | 0.7 | 1.8 | 12.5 | 170 |
| 3 | 4 | 2.21 | 0.7 | 1.8 | 13.7 | 227 |
| 3 | 6 | 2.71 | 0.7 | 1.8 | 14.8 | 306 |
| 3 | 10 | 3.5 | 0.7 | 1.8 | 15.8 | 461 |
| 3 | 16 | 4.8 | 0.7 | 1.8 | 20 | 685 |
| 3 | 25 | 5.8 | 0.9 | 1.8 | 24 | 1025 |
| 3 | 35 | 6.9 | 0.9 | 1.8 | 26.3 | 1361 |
| 3 | 50 | 8.2 | 1 | 1.8 | 29.5 | 1824 |
| 3 | 70 | 9.7 | 1.1 | 1.9 | 34.4 | 2561 |
| 3 | 95 | 11.4 | 1.1 | 2 | 39 | 3407 |
| 3 | 120 | 13.1 | 1.2 | 2.1 | 43.9 | 4299 |
| 3 | 150 | 14.2 | 1.4 | 2.3 | 48.3 | 5261 |
| 3 | 185 | 15.8 | 1.6 | 2.4 | 54 | 6528 |
| 3 | 240 | 18.6 | 1.7 | 2.6 | 60.5 | 8511 |
| 3 | 300 | 20.4 | 1.8 | 2.8 | 67.5 | 10752 |
| 4 | 1.5 | 1,37 | 0.7 | 1.8 | 12.5 | 157 |
| 4 | 2.5 | 1.76 | 0.7 | 1.8 | 13.5 | 205 |
| 4 | 4 | 2.21 | 0.7 | 1.8 | 14.5 | 280 |
| 4 | 6 | 2.71 | 0.7 | 1.8 | 15.7 | 380 |
| 4 | 10 | 3.5 | 0.7 | 1.8 | 16 | 573 |
| 4 | 16 | 4.8 | 0.7 | 1.8 | 22 | 855 |
| 4 | 25 | 5.8 | 0.9 | 1.8 | 26 | 1291 |
| 4 | 35 | 6.9 | 0.9 | 1.8 | 29 | 1756 |
| 4 | 50 | 8.2 | 1 | 1.9 | 33.9 | 2348 |
| 4 | 70 | 9.7 | 1.1 | 2 | 38.3 | 3297 |
| 4 | 95 | 11.4 | 1.1 | 2.1 | 43.9 | 4412 |
| 4 | 120 | 13.1 | 1.2 | 2.3 | 49 | 5618 |
| 4 | 150 | 14.2 | 1.4 | 2.4 | 53.8 | 6857 |
| 4 | 185 | 15.8 | 1.6 | 2.6 | 60.2 | 8516 |
| 4 | 240 | 18.6 | 1.7 | 2.8 | 67 | 11211 |
| 4 | 300 | 20.4 | 1.8 | 3 | 75.2 | 14303 |
| 5 | 1.5 | 1.37 | 0.7 | 1.8 | 13.5 | 199 |
| 5 | 2.5 | 1.76 | 0.7 | 1.8 | 14.5 | 262 |
| 5 | 4 | 2.21 | 0.7 | 1.8 | 15.7 | 357 |
| 5 | 6 | 2.71 | 0.7 | 1.8 | 16.8 | 468 |
| 5 | 10 | 3.5 | 0.7 | 1.8 | 20.3 | 744 |
| 5 | 16 | 4.8 | 0.7 | 1.8 | 24 | 1075 |
| 5 | 25 | 5.8 | 0.9 | 1.8 | 28.8 | 1626 |
| 5 | 35 | 6.9 | 0.9 | 1.8 | 31.8 | 2169 |
| 5 | 50 | 8.2 | 1 | 2 | 37.2 | 2942 |
| 5 | 70 | 9.7 | 1.1 | 2.1 | 43.1 | 4113 |
| 5 | 95 | 11.4 | 1.1 | 2.3 | 48.5 | 5537 |
