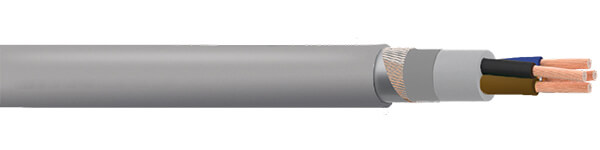

YMvKas mb Cable

YMvKas mb Cable Description

YMvKas mb cable has an outer flame-retardant PVC sheath and an inner armor of galvanized steel wire and copper tape. The “mb” in the name represents metallic shielding, its mechanical protection layer. It uses cross-linked polyethylene (XLPE) insulation and is designed for fixed installations in environments requiring fire safety.

VG-YMvKas mb cable features an armored construction, providing a degree of mechanical protection. The VO-YMvKas mb cable uses a galvanized steel wire braided layer, offering lower mechanical protection.

YMvKas mb Cable Construction

	VG-YMvKas mb Cable	VO-YMvKas mb Cable
Conductor	Class 1 Solid Copper Class 2 Stranded Copper
Insulation	XLPE (Cross-Linked Polyethylene)
Filler	PVC (Polyvinyl Chloride)
Inner Sheath	PVC-FR (Polyvinyl Chloride Flame Retardant)	-
Drain Wire	-	Tinned Copper
Braid	-	GSWB (Galvanized Round Steel Wire)
Armour	Galvanised (flat) steel wire armour with copper earth wires and a galvanized steel tape counter helix (SWA)	-
Outer Sheath	PVC-FR (Polyvinyl Chloride Flame Retardant)

YMvKas mb Cable Characteristics

Voltage Rating
0.6/1kV
Temperature Rating
Operating: -15ºC to +90ºC
Short Circuit Temperature
+250°C
Minimum Bending Radius
15 x overall diameter

VG-YMvKas mb Cable
VO-YMvKas mb Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	10	3.9	0.7	1.8	19.2	888
2	16	4.8	0.7	1.8	21.2	1221
2	25	5.9	0.9	1.8	24.4	1589
2	35	6.9	0.9	1.8	26.4	1882
3	10	3.9	0.7	1.8	20	1045
3	16	4.8	0.7	1.8	22	1352
3	25	5.9	0.9	1.8	25.6	1805
4	10	3.9	0.7	1.8	21.9	1180
4	16	4.8	0.7	1.8	23.9	1636
4	25	5.9	0.9	1.8	27.7	2200
4	35	6.9	0.9	1.8	30.1	2674
4	50	8.2	1	1.9	34.4	3572
4	70	9.7	1.1	2.1	40.5	4770
4	95	11.4	1.1	2.2	43.6	6094
4	120	13.1	1.2	2.4	49.1	7703
4	150	14.2	1.4	2.5	53.1	9176
4	185	15.8	1.6	2.7	59	11377
4	240	18.6	1.7	2.9	66.9	14512

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	1.5/1.5	1.36	0.7	1.8	11.9	189
2	2.5/2.5	1.76	0.7	1.8	13.2	251
2	4/4	2.21	0.7	1.8	14	361
2	6/6	2.71	0.7	1.8	17.5	450
3	1.5/1.5	1.36	0.7	1.8	12.3	216
3	2.5/2.5	1.76	0.7	1.8	13.2	293
3	4/4	2.21	0.7	1.8	15.5	425
3	6/6	2.71	0.7	1.8	19.2	535
4	1.5/1.5	1.36	0.7	1.8	12.8	246
4	2.5/2.5	1.76	0.7	1.8	14.4	334
4	4/4	2.21	0.7	1.8	15.5	44
4	6/6	2.71	0.7	1.8	19.2	574
