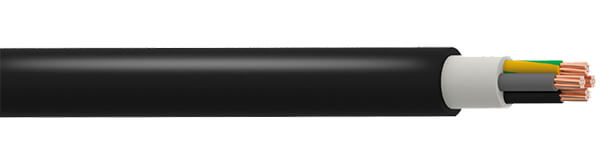

YMz1K mbzh Cable Description
YMz1K cables use more rigid Category 1 solid or Category 2 stranded copper conductors, while YMz1K Flex uses flexible Category 5 stranded copper conductors. The Category 5 flexible version of this cable has a minimum bending radius that exceeds 6 times its total diameter, while the Category 1 and Category 2 versions have a radius that exceeds 12 times.
YMz1K mbzh cable is suitable for installation in public buildings, factories, warehouses, and data centers where there is a potential fire risk, designed to minimize the emission of smoke and corrosive gases in the event of a fire. This product series is designed for fixed installations, utilizing clamps, saddles, and cable clips. This cable is not suitable for direct burial but can be laid in conduits or cable trays.
YMz1K mbzh Cable Construction
| YMz1K mbzh Cable | Ymz1K mbzh flex cable | |
|---|---|---|
| Conductor | Class 1 Solid Copper Class 2 Stranded Copper | Class 5 Flexible Stranded Copper |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Bedding | HFFR (Halogen Free Flame Retardant) | |
| Outer Sheath | HFFR (Halogen Free Flame Retardant) | |
YMz1K mbzh Cable Characteristics
| YMz1K mbzh Cable | Ymz1K mbzh flex cable | |
|---|---|---|
| Voltage Rating | 0.6/1kV | |
| Temperature Rating | Maximum Operating: 90ºC | - |
| Short Circuit Temperature | +250°C | - |
- YMz1K mbzh Cable
- Ymz1K mbzh flex cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 1.5 | 1.36 | 0.7 | 1.4 | 5.6 | 45 |
| 1 | 2.5 | 1.74 | 0.7 | 1.4 | 5.9 | 57 |
| 1 | 4 | 2.22 | 0.7 | 1.4 | 6.4 | 74 |
| 1 | 6 | 2.71 | 0.7 | 1.4 | 6.9 | 95 |
| 1 | 10 | 3.85 | 0.7 | 1.4 | 8.1 | 140 |
| 1 | 16 | 4.7 | 0.7 | 1.4 | 8.9 | 198 |
| 1 | 25 | 5.85 | 0.9 | 1.4 | 10.5 | 293 |
| 1 | 35 | 6.9 | 0.9 | 1.4 | 11.5 | 387 |
| 1 | 50 | 8.1 | 1 | 1.4 | 12.9 | 512 |
| 1 | 70 | 9.7 | 1.1 | 1.4 | 14.7 | 713 |
| 1 | 95 | 11.4 | 1.1 | 1.5 | 16.6 | 965 |
| 1 | 120 | 12.65 | 1.2 | 1.5 | 18.1 | 1194 |
| 1 | 150 | 14.4 | 1.4 | 1.6 | 20.4 | 1480 |
| 1 | 185 | 15.75 | 1.6 | 1.6 | 22.2 | 1816 |
| 1 | 240 | 18.2 | 1.7 | 1.7 | 25 | 2361 |
| 1 | 300 | 20.5 | 1.8 | 1.8 | 27.7 | 2954 |
| 1 | 400 | 23 | 2 | 1.9 | 30.8 | 3757 |
| 2 | 1.5 | 1.36 | 0.7 | 1.8 | 10.5 | 149 |
| 2 | 2.5 | 1.74 | 0.7 | 1.8 | 11.3 | 182 |
| 2 | 4 | 2.22 | 0.7 | 1.8 | 12.2 | 231 |
| 2 | 6 | 2.71 | 0.7 | 1.8 | 13.2 | 287 |
| 2 | 10 | 3.85 | 0.7 | 1.8 | 16.1 | 439 |
| 2 | 16 | 4.7 | 0.7 | 1.8 | 17.8 | 590 |
| 2 | 25 | 5.85 | 0.9 | 1.8 | 20.9 | 854 |
| 2 | 35 | 6.9 | 0.9 | 1.8 | 23 | 1100 |
| 2 | 50 | 8.1 | 1 | 1.8 | 25.8 | 1436 |
| 2 | 70 | 9.7 | 1.1 | 1.8 | 29.8 | 1990 |
| 2 | 95 | 11.4 | 1.1 | 1.9 | 33.4 | 2631 |
| 2 | 120 | 12.65 | 1.2 | 2.1 | 36.7 | 3252 |
| 2 | 150 | 14.4 | 1.4 | 2.2 | 41.8 | 4096 |
| 3 | 1.5 | 1.36 | 0.7 | 1.8 | 11 | 170 |
| 3 | 2.5 | 1.74 | 0.7 | 1.8 | 11.8 | 211 |
| 3 | 4 | 2.22 | 0.7 | 1.8 | 12.9 | 276 |
| 3 | 6 | 2.71 | 0.7 | 1.8 | 13.9 | 348 |
| 3 | 10 | 3.85 | 0.7 | 1.8 | 16.4 | 514 |
| 3 | 16 | 4.7 | 0.7 | 1.8 | 18.8 | 741 |
| 3 | 25 | 5.85 | 0.9 | 1.8 | 22.2 | 1090 |
| 3 | 35 | 6.9 | 0.9 | 1.8 | 24.4 | 1418 |
| 3 | 50 | 8.1 | 1 | 1.8 | 27.5 | 1870 |
| 3 | 70 | 9.7 | 1.1 | 1.9 | 32 | 2637 |
| 3 | 95 | 11.4 | 1.1 | 2 | 35.8 | 3492 |
| 3 | 120 | 12.65 | 1.2 | 2.1 | 39.2 | 4344 |
| 3 | 150 | 14.4 | 1.4 | 2.3 | 44.8 | 5438 |
| 3 | 185 | 15.75 | 1.6 | 2.4 | 48.8 | 6684 |
| 3 | 240 | 18.2 | 1.7 | 2.6 | 54.9 | 8633 |
| 3 | 300 | 20.5 | 1.8 | 2.8 | 60.7 | 10910 |
| 4 | 1.5 | 1.36 | 0.7 | 1.8 | 11.7 | 198 |
| 4 | 2.5 | 1.74 | 0.7 | 1.8 | 12.6 | 249 |
| 4 | 4 | 2.22 | 0.7 | 1.8 | 13.8 | 332 |
| 4 | 6 | 2.71 | 0.7 | 1.8 | 15 | 425 |
| 4 | 10 | 3.85 | 0.7 | 1.8 | 18.4 | 667 |
| 4 | 16 | 4.7 | 0.7 | 1.8 | 18.1 | 838 |
| 4 | 25 | 5.85 | 0.9 | 1.8 | 24.6 | 1395 |
| 4 | 35 | 6.9 | 0.9 | 1.8 | 27.1 | 1826 |
| 4 | 50 | 8.1 | 1 | 1.9 | 30.7 | 2422 |
| 4 | 70 | 9.7 | 1.1 | 2 | 35.8 | 3407 |
| 4 | 95 | 11.4 | 1.1 | 2.1 | 40.2 | 4540 |
| 4 | 120 | 12.65 | 1.2 | 2.3 | 44.1 | 5626 |
| 4 | 150 | 14.4 | 1.4 | 2.4 | 49.9 | 7053 |
| 4 | 185 | 15.75 | 1.6 | 2.6 | 54.5 | 8597 |
| 4 | 240 | 18.2 | 1.7 | 2.8 | 61.3 | 11158 |
| 4 | 300 | 20.5 | 1.8 | 3 | 67.8 | 13854 |
| 5 | 1.5 | 1.36 | 0.7 | 1.8 | 12.5 | 230 |
| 5 | 2.5 | 1.74 | 0.7 | 1.8 | 13.5 | 292 |
| 5 | 4 | 2.22 | 0.7 | 1.8 | 14.8 | 393 |
| 5 | 6 | 2.71 | 0.7 | 1.8 | 16.1 | 505 |
| 5 | 10 | 3.85 | 0.7 | 1.8 | 19.8 | 791 |
| 5 | 16 | 4.7 | 0.7 | 1.8 | 22.1 | 1118 |
| 5 | 25 | 5.85 | 0.9 | 1.8 | 26.7 | 1691 |
| 5 | 35 | 6.9 | 0.9 | 1.8 | 29.5 | 2225 |
| 5 | 50 | 8.1 | 1 | 2 | 33.7 | 2977 |
| 5 | 70 | 9.7 | 1.1 | 2.1 | 39.4 | 4199 |
| 5 | 95 | 11.4 | 1.1 | 2.3 | 44.4 | 5642 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 1.5 | 1.6 | 0.7 | 1.4 | 5.8 | 46 |
| 1 | 2.5 | 2 | 0.7 | 1.4 | 6.2 | 58 |
| 1 | 4 | 2.5 | 0.7 | 1.4 | 6.7 | 74 |
| 1 | 6 | 3.19 | 0.7 | 1.4 | 7.3 | 96 |
| 1 | 10 | 4.1 | 0.7 | 1.4 | 8.3 | 139 |
| 1 | 16 | 5.25 | 0.7 | 1.4 | 9.5 | 198 |
| 1 | 25 | 6.6 | 0.9 | 1.4 | 11.2 | 290 |
| 1 | 35 | 7.5 | 0.9 | 1.4 | 12.1 | 385 |
| 1 | 50 | 9.25 | 1 | 1.4 | 14.1 | 530 |
| 1 | 70 | 10.95 | 1.1 | 1.4 | 16 | 723 |
| 1 | 95 | 12.35 | 1.1 | 1.5 | 17.6 | 951 |
| 1 | 120 | 14 | 1.2 | 1.5 | 19.4 | 1178 |
| 1 | 150 | 15.8 | 1.4 | 1.6 | 21.8 | 1465 |
| 1 | 185 | 18.5 | 1.6 | 1.6 | 24.9 | 1809 |
| 1 | 240 | 20 | 1.7 | 1.7 | 26.8 | 2317 |
| 2 | 1.5 | 1.6 | 0.7 | 1.8 | 11 | 157 |
| 2 | 2.5 | 2 | 0.7 | 1.8 | 11.8 | 190 |
| 2 | 4 | 2.5 | 0.7 | 1.8 | 12.8 | 238 |
| 2 | 6 | 3.1 | 0.7 | 1.8 | 14 | 298 |
| 2 | 10 | 4.1 | 0.7 | 1.8 | 16.6 | 443 |
| 2 | 16 | 5.25 | 0.7 | 1.8 | 18.9 | 611 |
| 2 | 25 | 6.6 | 0.9 | 1.8 | 22.4 | 881 |
| 2 | 35 | 7.5 | 0.9 | 1.8 | 24.2 | 1122 |
| 2 | 50 | 9.25 | 1 | 1.8 | 28.1 | 1533 |
| 2 | 70 | 10.95 | 1.1 | 1.8 | 32.3 | 2087 |
| 2 | 95 | 12.35 | 1.1 | 1.9 | 35.3 | 2657 |
| 2 | 120 | 14 | 1.2 | 2.1 | 39.4 | 3315 |
| 2 | 150 | 15.8 | 1.4 | 2.2 | 44.6 | 4176 |
| 2 | 185 | 18.5 | 1.6 | 2.3 | 51 | 5250 |
| 2 | 240 | 20 | 1.7 | 2.5 | 54.8 | 6512 |
| 2 | 300 | 23.1 | 1.8 | 2.7 | 61.8 | 8112 |
| 3 | 1.5 | 1.6 | 0.7 | 1.8 | 11.5 | 175 |
| 3 | 2.5 | 2 | 0.7 | 1.8 | 12.4 | 219 |
| 3 | 4 | 2.5 | 0.7 | 1.8 | 13.5 | 280 |
| 3 | 6 | 3.1 | 0.7 | 1.8 | 14.8 | 358 |
| 3 | 10 | 4.1 | 0.7 | 1.8 | 16.9 | 511 |
| 3 | 16 | 5.25 | 0.7 | 1.8 | 20 | 753 |
| 3 | 25 | 6.6 | 0.9 | 1.8 | 23.8 | 1098 |
| 3 | 35 | 7.5 | 0.9 | 1.8 | 25.7 | 1421 |
| 3 | 50 | 9.25 | 1 | 1.8 | 30 | 1958 |
| 3 | 70 | 10.95 | 1.1 | 1.9 | 34.7 | 2698 |
| 3 | 95 | 12.35 | 1.1 | 2 | 37.9 | 3466 |
| 3 | 120 | 14 | 1.2 | 2.1 | 42.1 | 4306 |
| 3 | 150 | 15.8 | 1.4 | 2.3 | 47.8 | 5426 |
| 3 | 185 | 18.5 | 1.6 | 2.4 | 54.7 | 6784 |
| 3 | 240 | 20 | 1.7 | 2.6 | 58.8 | 8512 |
| 3 | 300 | 23.1 | 1.8 | 2.8 | 66.3 | 10569 |
| 3 | 35/25 | 7.5 | 0.9 | 1.8 | 28.1 | 1702 |
| 3 | 50/25 | 9.25 | 1 | 1.8 | 31.7 | 2163 |
| 3 | 70/35 | 10.95 | 1.1 | 1.9 | 36.5 | 2968 |
| 3 | 95/50 | 12.35 | 1.1 | 2 | 40.4 | 3905 |
| 3 | 120/70 | 14 | 1.2 | 2.2 | 45.3 | 4962 |
| 3 | 150/70 | 15.8 | 1.4 | 2.3 | 49.9 | 5904 |
| 3 | 185/95 | 18.5 | 1.6 | 2.5 | 56.8 | 7362 |
| 3 | 240/120 | 20 | 1.7 | 2.6 | 61.3 | 9299 |
| 4 | 1.5 | 1.6 | 0.7 | 1.8 | 12.3 | 205 |
| 4 | 2.5 | 2 | 0.7 | 1.8 | 13.3 | 258 |
| 4 | 4 | 2.5 | 0.7 | 1.8 | 14.5 | 334 |
| 4 | 6 | 3.1 | 0.7 | 1.8 | 15.9 | 430 |
| 4 | 10 | 4.1 | 0.7 | 1.8 | 19 | 657 |
| 4 | 16 | 5.25 | 0.7 | 1.8 | 18.1 | 790 |
| 4 | 25 | 6.6 | 0.9 | 1.8 | 26.4 | 1394 |
| 4 | 35 | 7.5 | 0.9 | 1.8 | 28.6 | 1820 |
| 4 | 50 | 9.25 | 1 | 1.9 | 33.5 | 2518 |
| 4 | 70 | 10.95 | 1.1 | 2 | 38.9 | 3487 |
| 4 | 95 | 12.35 | 1.1 | 2.1 | 42.5 | 4490 |
| 4 | 120 | 14 | 1.2 | 2.3 | 47.3 | 5590 |
| 4 | 150 | 15.8 | 1.4 | 2.4 | 53.3 | 6988 |
| 4 | 185 | 18.5 | 1.6 | 2.6 | 61.2 | 8753 |
| 4 | 240 | 20 | 1.7 | 2.8 | 65.7 | 10997 |
| 4 | 300 | 23.1 | 1.8 | 3 | 74.1 | 13648 |
| 4 | 35/25 | 7.5 | 0.9 | 1.8 | 30.7 | 2096 |
| 4 | 50/25 | 9.25 | 1 | 1.9 | 35.1 | 2731 |
| 4 | 70/35 | 10.95 | 1.1 | 2.1 | 40.7 | 3778 |
| 4 | 95/50 | 12.35 | 1.1 | 2.2 | 45 | 4961 |
| 5 | 1.5 | 1.6 | 0.7 | 1.8 | 13.2 | 239 |
| 5 | 2.4 | 2 | 0.7 | 1.8 | 14.2 | 300 |
| 5 | 4 | 2.5 | 0.7 | 1.8 | 15.6 | 395 |
| 5 | 6 | 3.1 | 0.7 | 1.8 | 17.2 | 513 |
| 5 | 10 | 4.1 | 0.7 | 1.8 | 20.5 | 784 |
| 5 | 16 | 5.25 | 0.7 | 1.8 | 23.6 | 1124 |
| 5 | 25 | 6.6 | 0.9 | 1.8 | 28.7 | 1686 |
| 5 | 35 | 7.5 | 0.9 | 1.8 | 31.2 | 2216 |
| 5 | 50 | 9.25 | 1 | 2 | 36.8 | 3089 |
| 5 | 70 | 10.95 | 1.1 | 2.1 | 42.8 | 4287 |
| 5 | 95 | 12.35 | 1.1 | 2.3 | 46.9 | 5543 |
| 5 | 120 | 14 | 1.2 | 2.4 | 52.1 | 6889 |
| 5 | 150 | 15.8 | 1.4 | 2.6 | 58.9 | 8636 |
| 5 | 185 | 18.5 | 1.6 | 2.8 | 67.6 | 10807 |
| 5 | 240 | 20 | 0.7 | 3 | 67.2 | 12895 |
| 5 | 300 | 23.1 | 1.8 | 3.2 | 81.9 | 16873 |
