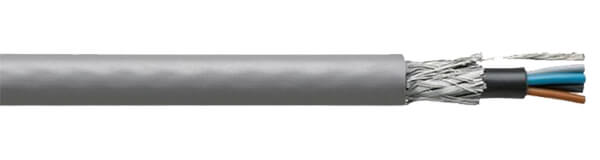

YMz1Kas mbzh Cable Description
This series is widely used in low-voltage (0.6/1kV) electrical installations in public buildings, and it also minimizes smoke and corrosive gas emissions during fires.
Z1G-YMz1Kas mbzh cable features galvanized flat wire and copper wire armor, reinforced with open spiral steel wire, providing superior mechanical protection. Z10-YMz1Kas mbzh cable, on the other hand, uses a galvanized steel wire braided layer, prioritizing flexibility over protective performance.
YMz1Kas mbzh Cable Construction
| Z1G-YMz1Kas mbzh cable | Z10-YMz1Kas mbzh cable | |
|---|---|---|
| Conductor | Class 1 Solid Copper Class 2 Stranded Copper |
|
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Filler | HFFR (Halogen Free Flame Retardant) | |
| Inner Sheath | HFFR (Halogen Free Flame Retardant) | |
| Braid | - | GSWB (Galvanized Steel Wire Braid) |
| Armour | Galvanised Flat steel Wires and Flat Bare Copper Wires covered with an Open Counter Spiral of Galvanised Steel Tape | - |
| Drain Wire | - | Tinned Copper |
| Outer Sheath | HFFR (Halogen Free Flame Retardant) | |
YMz1Kas mbzh Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- Maximum Operating: 90ºC
- Maximum Short-Circuit: 250°C
- Minimum Bending Radius
- 15 x overall diameter
- Z1G-YMz1Kas mbzh cable
- Z10-YMz1Kas mbzh cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 2 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 13.6 | 389 |
| 2 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 14.3 | 451 |
| 2 | 4/4 | 2.22 | 0.7 | 1.8 | 15.3 | 534 |
| 2 | 6/6 | 2.71 | 0.7 | 1.8 | 16.3 | 633 |
| 2 | 10/10 | 3.85 | 0.7 | 1.8 | 18.5 | 857 |
| 2 | 16/16 | 4.7 | 0.7 | 1.8 | 20.2 | 1096 |
| 2 | 25/16 | 5.85 | 0.9 | 1.8 | 22.5 | 1292 |
| 2 | 35/16 | 6.9 | 0.9 | 1.8 | 24.6 | 1574 |
| 2 | 50/25 | 8.1 | 1 | 1.8 | 27.6 | 2043 |
| 2 | 70/35 | 9.7 | 1.1 | 1.9 | 31.4 | 2711 |
| 2 | 95/50 | 11.4 | 1.1 | 2 | 35.2 | 3669 |
| 3 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 14 | 429 |
| 3 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 14.8 | 505 |
| 3 | 4/4 | 2.22 | 0.7 | 1.8 | 15.9 | 608 |
| 3 | 6/6 | 2.71 | 0.7 | 1.8 | 16.9 | 731 |
| 3 | 10/10 | 3.85 | 0.7 | 1.8 | 19.4 | 975 |
| 3 | 16/16 | 4.7 | 0.7 | 1.8 | 21.2 | 1268 |
| 3 | 25/16 | 5.85 | 0.9 | 1.8 | 24.6 | 1697 |
| 3 | 35/16 | 6.9 | 0.9 | 1.8 | 26 | 1908 |
| 3 | 50/25 | 8.1 | 1 | 1.8 | 29.4 | 2537 |
| 3 | 70/35 | 9.7 | 1.1 | 2 | 33.9 | 3430 |
| 3 | 95/50 | 11.4 | 1.1 | 2.1 | 38 | 4626 |
| 3 | 120/70 | 12.65 | 1.2 | 2.2 | 42.5 | 5960 |
| 3 | 150/70 | 14.15 | 1.4 | 2.4 | 47.2 | 7136 |
| 4 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 14.7 | 467 |
| 4 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 15.7 | 554 |
| 4 | 4/4 | 2.22 | 0.7 | 1.8 | 16.8 | 673 |
| 4 | 6/6 | 2.71 | 0.7 | 1.8 | 18 | 815 |
| 4 | 10/10 | 3.85 | 0.7 | 1.8 | 20.7 | 1132 |
| 4 | 16/16 | 4.7 | 0.7 | 1.8 | 22.8 | 1487 |
| 4 | 25/16 | 5.85 | 0.9 | 1.8 | 26.8 | 2039 |
| 4 | 35/16 | 6.9 | 0.9 | 1.8 | 28.5 | 2334 |
| 4 | 50/25 | 8.1 | 1 | 1.9 | 32.4 | 3120 |
| 4 | 70/35 | 9.7 | 1.1 | 2.1 | 38.4 | 4589 |
| 4 | 95/50 | 11.4 | 1.1 | 2.2 | 42.9 | 6101 |
| 4 | 120/70 | 12.65 | 1.2 | 2.4 | 47 | 7354 |
| 4 | 150/70 | 14.15 | 1.4 | 2.5 | 52 | 8818 |
| 5 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 15.5 | 519 |
| 5 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 16.5 | 620 |
| 5 | 4/4 | 2.22 | 0.7 | 1.8 | 17.8 | 760 |
| 5 | 6/6 | 2.71 | 0.7 | 1.8 | 19.1 | 928 |
| 5 | 10/10 | 3.85 | 0.7 | 1.8 | 22.2 | 1300 |
| 5 | 16/16 | 4.7 | 0.7 | 1.8 | 24.5 | 1722 |
| 5 | 25/16 | 5.85 | 0.9 | 1.8 | 28.9 | 2389 |
| 5 | 35/16 | 6.9 | 0.9 | 1.9 | 31.1 | 2786 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 10.8 | 157 |
| 1 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 11.6 | 186 |
| 1 | 4/4 | 2.22 | 0.7 | 1.8 | 12.5 | 228 |
| 1 | 6/6 | 2.71 | 0.7 | 1.8 | 13.6 | 277 |
| 1 | 10/10 | 2.22 | 0.7 | 1.8 | 16.7 | 435 |
| 1 | 16/16 | 2.71 | 0.7 | 1.8 | 18.4 | 542 |
| 1 | 25/16 | 3.85 | 0.7 | 1.8 | 21.8 | 777 |
| 1 | 35/16 | 4.7 | 0.7 | 1.8 | 24.8 | 1054 |
| 2 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 13.5 | 252 |
| 2 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 14.7 | 304 |
| 2 | 4/4 | 2.22 | 0.7 | 1.8 | 16.1 | 378 |
| 2 | 6/6 | 2.71 | 0.7 | 1.8 | 17.7 | 466 |
| 2 | 10/10 | 3.85 | 0.7 | 1.8 | 21 | 660 |
| 2 | 16/16 | 4.7 | 0.7 | 1.8 | 23.9 | 883 |
| 2 | 25/16 | 5.85 | 0.9 | 1.8 | 27 | 1186 |
| 2 | 35/16 | 6.9 | 0.9 | 1.8 | 29.1 | 1451 |
| 3 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 14 | 281 |
| 3 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 15.2 | 345 |
| 3 | 4/4 | 2.22 | 0.7 | 1.8 | 16.7 | 435 |
| 3 | 6/6 | 2.71 | 0.7 | 1.8 | 18.4 | 542 |
| 3 | 10/10 | 3.85 | 0.7 | 1.8 | 21.8 | 777 |
| 3 | 16/16 | 4.7 | 0.7 | 1.8 | 24.8 | 1054 |
| 3 | 25/16 | 5.85 | 0.9 | 1.8 | 28.2 | 1449 |
| 3 | 35/16 | 6.9 | 0.9 | 1.8 | 30.4 | 1802 |
| 4 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 14.7 | 321 |
| 4 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 16 | 397 |
| 4 | 4/4 | 2.22 | 0.7 | 1.8 | 17.7 | 506 |
| 4 | 6/6 | 2.71 | 0.7 | 1.8 | 19.4 | 636 |
| 4 | 10/10 | 3.85 | 0.7 | 1.8 | 23.2 | 920 |
| 4 | 16/16 | 4.7 | 0.7 | 1.8 | 26.4 | 1259 |
| 4 | 25/16 | 5.85 | 0.9 | 1.8 | 30.4 | 1776 |
| 4 | 35/16 | 6.9 | 0.9 | 1.8 | 32.9 | 2232 |
| 5 | 1.5/1.5 | 1.36 | 0.7 | 1.8 | 15.5 | 364 |
| 5 | 2.5/2.5 | 1.75 | 0.7 | 1.8 | 16.9 | 454 |
| 5 | 4/4 | 2.22 | 0.7 | 1.8 | 18.7 | 583 |
| 5 | 6/6 | 2.71 | 0.7 | 1.8 | 20.6 | 737 |
| 5 | 10/10 | 3.85 | 0.7 | 1.8 | 24.7 | 1074 |
| 5 | 16/16 | 4.7 | 0.7 | 1.8 | 28.1 | 1477 |
| 5 | 25/16 | 5.85 | 0.9 | 1.8 | 32.5 | 2111 |
| 5 | 35/16 | 6.9 | 0.9 | 1.9 | 35.9 | 2751 |
