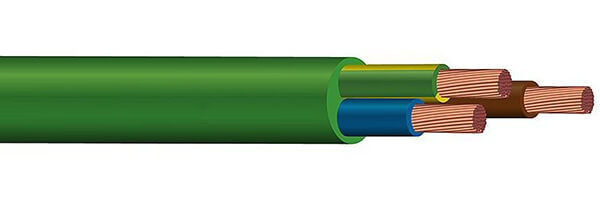

Z1Z1-K Cable Description
Z1Z1-K cables feature flexible copper conductors, cross-linked polyethylene (XLPE) insulation, and a flame-retardant polyolefin sheath, making them suitable for indoor/outdoor, humid/dry environments, and underground installations.
Even in the event of a fire, they do not release toxic or corrosive gases, thus protecting public safety and preventing damage to electronic equipment. This makes them ideal for public places such as hospitals, schools, and airports.
Z1Z1-K Cable Construction
- Conductor
- Class 5 flexible copper
- Insulation
- XLPE (Cross-linked polyethylene )
- Outer sheath
- Polyolefin LSZH
Z1Z1-K Cable Characteristics
- Voltage Rating
- 0,6/1kV
- Thermal performance
- Maximum service temperature: 70ºC.
- Maximum short-circuittemperature: 160ºC (max. 5 s).
- Minimum service temperature: -40ºC (static with protection).
- Mechanical performance
- Minimum bending radius: x5 cable diameter.
Z1Z1-K Cable Specifications
| Cross-section (mm²) | Diameter (mm) | Weight (kg/km) | Open air (A) | Buried (A) | Voltage drop (V/A·km) |
|---|---|---|---|---|---|
| 6 G 1,5 | 11,4 | 210 | 22 | 22 | 31,8 |
| 6 G 2,5 | 12,8 | 280 | 30 | 29 | 19,1 |
| 7 G 1,5 | 11,2 | 220 | 22 | 22 | 31,8 |
| 7 G 2,5 | 12,7 | 305 | 30 | 29 | 19,1 |
| 7 G 4 | 14,4 | 425 | 40 | 37 | 11,8 |
| 8 G 1,5 | 12,3 | 250 | 22 | 22 | 31,8 |
| 8 G 2,5 | 13,8 | 345 | 30 | 29 | 19,1 |
| 10 G 1,5 | 13,2 | 295 | 22 | 22 | 31,8 |
| 10 G 2,5 | 14,7 | 415 | 30 | 29 | 19,1 |
| 12 G 1,5 | 13,9 | 335 | 22 | 22 | 31,8 |
| 12 G 2,5 | 15,8 | 475 | 30 | 29 | 19,1 |
| 16 G 1,5 | 16,1 | 440 | 22 | 22 | 31,8 |
| 16 G 2,5 | 18,3 | 625 | 30 | 29 | 19,1 |
| 18 G 1,5 | 17,0 | 485 | 22 | 22 | 31,8 |
| 18 G 2,5 | 19,5 | 685 | 30 | 29 | 19,1 |
| 19 G 1,5 | 16,7 | 500 | 22 | 22 | 31,8 |
| 19 G 2,5 | 19,2 | 715 | 30 | 29 | 19,1 |
| 20 G 1,5 | 17,8 | 530 | 22 | 22 | 31,8 |
| 20 G 2,5 | 20,6 | 765 | 30 | 29 | 19,1 |
| 24 G 1,5 | 18,8 | 615 | 22 | 22 | 31,8 |
| 24 G 2,5 | 22,1 | 885 | 30 | 29 | 19,1 |
| 25 G 1,5 | 20,4 | 655 | 22 | 22 | 31,8 |
| 25 G 2,5 | 23,6 | 920 | 30 | 29 | 19,1 |
| 27 G 1,5 | 20,1 | 670 | 22 | 22 | 31,8 |
| 27 G 2,5 | 23,8 | 980 | 30 | 29 | 19,1 |
| 30 G 1,5 | 20,5 | 715 | 22 | 22 | 31,8 |
| 30 G 2,5 | 23,4 | 1.03 | 30 | 29 | 19,1 |
| 44 G 1,5 | 25,2 | 1.045 | 22 | 22 | 31,8 |
