BFOU and RFOU Cable Description
NEK 606 Offshore is the technical specification for power, control, and instrumentation cables used in Norwegian offshore and marine installations. These cables are halogen-free, flame-retardant, and offer excellent shielding and mud resistance.

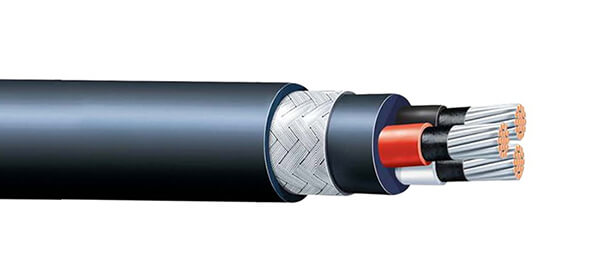

BFOU and RFOU Cable Construction
| NEK606 RFOU(c) S102 Cable 250V | NEK606 BFOU(c) S104 Cable 250V | NEK606 RFOU P101 Cable 0.6/1kV | NEK606 RFOU(i) S101 Cable 250V | NEK606 BFOU(i) S103 Cable 250V | NEK606 BFOU P105 Cable 0.6/1kV | |
|---|---|---|---|---|---|---|
| Conductor | Class 2 tinned annealed copper conductor | Class 2 Tinned Copper | Class 2 tinned annealed copper conductor | Class 2 Tinned Copper | ||
| Insulation | Halogen free EPR (Ethylene Propylene Rubber) compound | Mica Tape+ EPR HF (Ethylene Propylene Rubber Halogen Free) Compound | EPR HF (Ethylene Propylene Rubber Halogen Free) Compound | EPR (Ethylene Propylene Rubber) Halogen free compound | Mica tape + EPR (Ethylene Propylene Rubber) Halogen free compound | |
| Overall Screen | Copper backed polyester tape +Tinned copper drain wire | CTS (Cu/PE Tape Screen) + TC (Tinned Copper) Drain Wire | Fiberglass Tape + Fiberglass Fillers (Extruded) | Copper polyester tape + tinned copper drain wire | Fiberglass Tape + Fiberglass Fillers (Extruded) | |
| Bedding | Halogen free compound | Extruded Compound (Type SHF2) | SHF2 extruded compound | Extruded Compound (Type SHF2) | ||
| Screen | TCWB (Tinned Copper Wire Braid) | TCWB (Tinned Copper Wire Braid) | ||||
| Sheath | SHF2 H-M compound | Type SHF2 H-M Compound | SHF2 H-M compound | Type SHF2 H-M Compound | ||

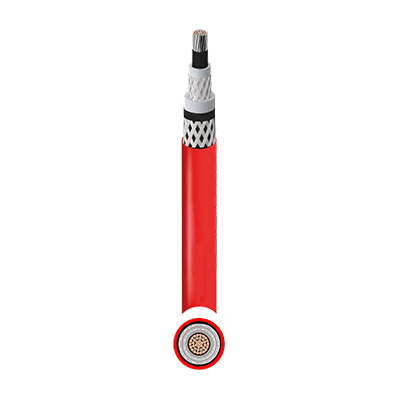

| NEK606 RFOU P103 Cable 6/10kV | NEK606 RFOU P104 Cable 8.7/15kV | NEK606 RFOU P113 Cable 18/30kV | NEK606 RFOU P102 Cable 3.6/6kV | NEK606 RFOU P112 Cable 12/20kV | |
|---|---|---|---|---|---|
| Conductor | Class 2 Annealed Tinned Copper | ||||
| Insulation | HEPR HF (Hard Ethylene Propylene Rubber Halogen Free) Compound |
||||
| Overall Screen | Fiberglass Tape + Fiberglass Fillers (Extruded) HEPR sheathed when 3 cores | Fiberglass Tape + Fiberglass Fillers (Extruded) | Fiberglass Tape + Fiberglass Fillers (Extruded) HEPR sheathed when 3 cores | Fiberglass Tape + Fiberglass Fillers (Extruded) | |
| Bedding | SHF2 extruded compound | ||||
| Screen | TCWB (Tinned Copper Wire Braid) | ||||
| Sheath | SHF2 H-M compound | ||||
BFOU and RFOU Cable Characteristics
| NEK606 RFOU(c) S102 Cable 250V | NEK606 BFOU(c) S104 Cable 250V | NEK606 RFOU P101 Cable 0.6/1kV | NEK606 RFOU(i) S101 Cable 250V | NEK606 BFOU(i) S103 Cable 250V | NEK606 BFOU P105 Cable 0.6/1kV | |
|---|---|---|---|---|---|---|
| Voltage Rating Uo/U | 150/250V | 0.6/1kV | 150/250V | 0.6/1kV | ||
| Temperature Rating | +90°C | |||||
| Minimum Bending Radius | 4 x Overall Diameter | |||||
| NEK606 RFOU P103 Cable 6/10kV | NEK606 RFOU P104 Cable 8.7/15kV | NEK606 RFOU P113 Cable 18/30kV | NEK606 RFOU P102 Cable 3.6/6kV | NEK606 RFOU P112 Cable 12/20kV | |
|---|---|---|---|---|---|
| Voltage Rating | 6/10kV | 8.7/15kV | 18/30kV | 3.6/6.6kV | 12/20kV |
| Temperature Rating | +90°C | ||||
| Minimum Bending Radius | 4 or 5 x depending on Overall Diameter | ||||
- NEK606 RFOU(c) S102 Cable 250V

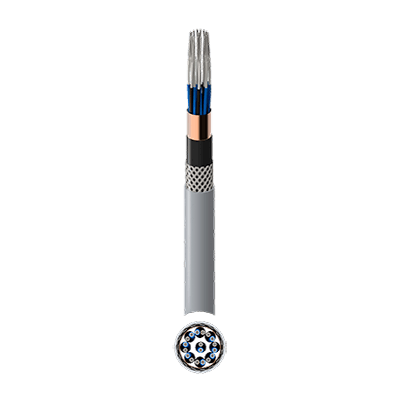

- NEK606 BFOU(c) S104 Cable 250V

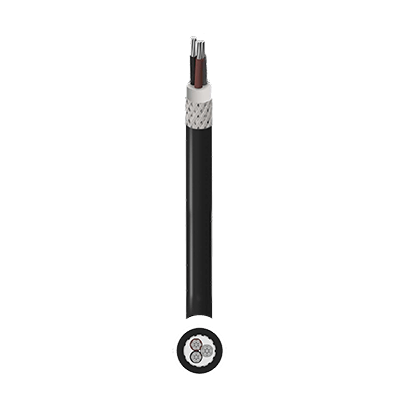

- NEK606 RFOU P101 Cable 0.6/1kV
- NEK606 RFOU(i) S101 Cable 250V

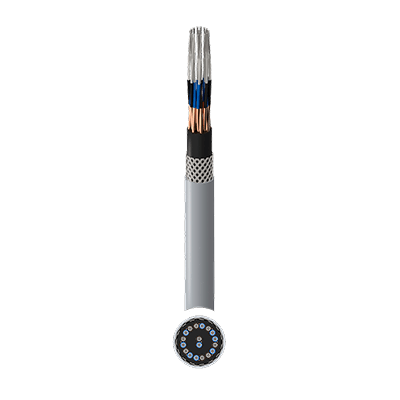

- NEK606 BFOU(i) S103 Cable 250V
- NEK606 BFOU P105 Cable 0.6/1kV
- NEK606 RFOU P103 Cable 6/10kV
- NEK606 RFOU P104 Cable 8.7/15kV
- NEK606 RFOU P113 Cable 18/30kV
- NEK606 RFOU P102 Cable 3.6/6kV
- NEK606 RFOU P112 Cable 12/20kV
| NO. OF PAIRS/TRIPLES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2P | 0.75 | 11 | 15.5 | 390 |
| 2P | 1 | 12 | 16.7 | 450 |
| 2P | 1.5 | 13.2 | 17.9 | 525 |
| 2P | 2.5 | 14.6 | 20.2 | 630 |
| 2T | 0.75 | 12 | 16.7 | 455 |
| 2T | 1 | 13.1 | 17.8 | 520 |
| 2T | 1.5 | 14.4 | 20 | 615 |
| 3T | 0.75 | 12.6 | 17.4 | 500 |
| 3T | 1 | 13.8 | 18.6 | 575 |
| 3T | 1.5 | 15.3 | 20.8 | 700 |
| 4P | 0.75 | 12.6 | 17.4 | 500 |
| 4P | 1 | 13.8 | 18.6 | 570 |
| 4P | 1.5 | 15.3 | 21 | 700 |
| 4P | 2.5 | 17 | 22.8 | 850 |
| 4T | 0.75 | 13.8 | 18.8 | 585 |
| 4T | 1 | 15.2 | 20.9 | 690 |
| 4T | 1.5 | 16.8 | 22.5 | 830 |
| 4T | 2.5 | 18.7 | 24.5 | 1025 |
| 7P | 0.75 | 15 | 20.8 | 675 |
| 7P | 1 | 16.5 | 22.4 | 785 |
| 7P | 1.5 | 18.3 | 24.3 | 960 |
| 7T | 0.75 | 17.1 | 23.1 | 845 |
| 7T | 1 | 18.9 | 25.1 | 1005 |
| 7T | 1.5 | 21 | 27.2 | 1230 |
| 8P | 0.75 | 16 | 21.9 | 750 |
| 8P | 1 | 17.6 | 23.7 | 885 |
| 8P | 1.5 | 19.5 | 25.9 | 1090 |
| 8P | 2.5 | 21.9 | 28.2 | 1360 |
| 8T | 0.75 | 18.3 | 24.5 | 950 |
| 8T | 1 | 20.2 | 26.6 | 1130 |
| 8T | 1.5 | 22.5 | 28.9 | 1390 |
| 8T | 2.5 | 25.7 | 28.3 | 1505 |
| 12P | 0.75 | 18.9 | 25.3 | 1005 |
| 12P | 1 | 20.9 | 27.3 | 1185 |
| 12P | 1.5 | 23.7 | 30.3 | 1515 |
| 12P | 2.5 | 26.6 | 33.2 | 1910 |
| 12T | 0.75 | 21.4 | 28 | 1255 |
| 12T | 1 | 24.1 | 30.6 | 1530 |
| 12T | 1.5 | 26.9 | 33.9 | 1940 |
| 16P | 0.75 | 21.8 | 28.4 | 1270 |
| 16P | 1 | 24.1 | 30.7 | 1515 |
| 16P | 1.5 | 26.9 | 33.9 | 1905 |
| 16T | 0.75 | 24.7 | 31.4 | 1600 |
| 16T | 1 | 27.3 | 34.3 | 1925 |
| 16T | 1.5 | 30.5 | 38.2 | 2515 |
| 19P | 0.75 | 23.5 | 30.3 | 1465 |
| 19P | 1 | 26 | 32.7 | 1730 |
| 19P | 1.5 | 29 | 36.1 | 2170 |
| 19T | 0.75 | 26.6 | 33.6 | 1835 |
| 19T | 1 | 29.4 | 36.9 | 2230 |
| 19T | 1.5 | 32.9 | 40.9 | 2890 |
| 24P | 0.75 | 26.1 | 33.1 | 1765 |
| 24P | 1 | 28.8 | 36.2 | 2135 |
| 24P | 1.5 | 32.7 | 40.8 | 2815 |
| 24T | 0.75 | 29.5 | 37 | 2240 |
| 24T | 1 | 33.1 | 41.3 | 2840 |
| 24T | 1.5 | 37.1 | 45.6 | 3615 |
| 32P | 0.75 | 29.6 | 37 | 2215 |
| 32P | 1 | 33.2 | 41.3 | 2805 |
| 32P | 1.5 | 37.1 | 45.5 | 3520 |
| 32T | 0.75 | 34 | 42.3 | 2970 |
| 32T | 1 | 37.7 | 46.2 | 3585 |
| 32T | 1.5 | 42.3 | 51 | 4560 |
| NO. OF PAIRS/TRIPLES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2P | 0.75 | 12.2 | 16.7 | 450 |
| 2P | 1 | 12.5 | 17.3 | 485 |
| 2P | 1.5 | 14.2 | 19 | 585 |
| 2P | 2.5 | 15.9 | 21.5 | 715 |
| 2T | 0.75 | 13.3 | 18.1 | 525 |
| 2T | 1 | 13.7 | 18.5 | 560 |
| 2T | 1.5 | 15.6 | 21.2 | 695 |
| 3T | 0.75 | 14.1 | 18.8 | 580 |
| 3T | 1 | 14.5 | 20.1 | 630 |
| 3T | 1.5 | 16.6 | 22.1 | 780 |
| 4P | 0.75 | 14.1 | 18.9 | 580 |
| 4P | 1 | 14.5 | 20.1 | 625 |
| 4P | 1.5 | 16.6 | 22.3 | 785 |
| 4P | 2.5 | 18.6 | 24.4 | 965 |
| 4T | 0.75 | 15.5 | 21.2 | 695 |
| 4T | 1 | 15.9 | 21.7 | 750 |
| 4T | 1.5 | 18.2 | 24 | 930 |
| 4T | 2.5 | 20.5 | 26.3 | 1160 |
| 7P | 0.75 | 16.9 | 22.6 | 790 |
| 7P | 1 | 17.4 | 23.3 | 865 |
| 7P | 1.5 | 19.9 | 25.9 | 1080 |
| 7T | 0.75 | 19.3 | 25.3 | 995 |
| 7T | 1 | 19.9 | 26.1 | 1105 |
| 7T | 1.5 | 22.9 | 29.1 | 1390 |
| 8P | 0.75 | 17.9 | 23.9 | 880 |
| 8P | 1 | 18.5 | 24.7 | 970 |
| 8P | 1.5 | 21.2 | 27.6 | 1230 |
| 8P | 2.5 | 24 | 30.4 | 1555 |
| 8T | 0.75 | 20.7 | 26.9 | 1125 |
| 8T | 1 | 21.3 | 27.7 | 1245 |
| 8T | 1.5 | 24.6 | 31 | 1595 |
| 8T | 2.5 | 28.2 | 30.8 | 1730 |
| 12P | 0.75 | 21.4 | 27.8 | 1195 |
| 12P | 1 | 22.1 | 28.4 | 1305 |
| 12P | 1.5 | 25.8 | 32.4 | 1720 |
| 12P | 2.5 | 29.2 | 35.9 | 2180 |
| 12T | 0.75 | 24.2 | 30.8 | 1505 |
| 12T | 1 | 25.4 | 32 | 1700 |
| 12T | 1.5 | 29.3 | 36.3 | 2205 |
| 16P | 0.75 | 24.6 | 31.2 | 1525 |
| 16P | 1 | 25.4 | 32 | 1675 |
| 16P | 1.5 | 29.3 | 36.4 | 2170 |
| 16T | 0.75 | 27.9 | 34.7 | 1915 |
| 16T | 1 | 28.8 | 35.8 | 2140 |
| 16T | 1.5 | 33.3 | 41 | 2865 |
| 19P | 0.75 | 26.5 | 33.3 | 1745 |
| 19P | 1 | 27.4 | 34.2 | 1920 |
| 19P | 1.5 | 31.6 | 39.5 | 2555 |
| 19T | 0.75 | 30.1 | 37.6 | 2280 |
| 19T | 1 | 31.1 | 39 | 2565 |
| 19T | 1.5 | 36.1 | 44 | 3325 |
| 24P | 0.75 | 29.5 | 36.6 | 2115 |
| 24P | 1 | 30.5 | 38.4 | 2455 |
| 24P | 1.5 | 35.6 | 43.8 | 3205 |
| 24T | 0.75 | 33.5 | 41.4 | 2790 |
| 24T | 1 | 35 | 43.1 | 3160 |
| 24T | 1.5 | 40.5 | 49.1 | 4130 |
| 32P | 0.75 | 33.6 | 41.5 | 2760 |
| 32P | 1 | 35.1 | 43.2 | 3115 |
| 32P | 1.5 | 40.6 | 48.9 | 4025 |
| 32T | 0.75 | 38.6 | 46.9 | 3570 |
| 32T | 1 | 39.8 | 48.4 | 4000 |
| 32T | 1.5 | 46.2 | 54.9 | 5210 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL BRAID CROSS SECTION mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 10 | 4 | 9.3 | 13.7 | 330 |
| 1 | 16 | 6 | 10.3 | 14.4 | 405 |
| 1 | 25 | 6 | 12 | 16.7 | 565 |
| 1 | 35 | 10 | 13.1 | 18 | 710 |
| 1 | 50 | 10 | 14.4 | 20.1 | 855 |
| 1 | 70 | 10 | 16 | 21.9 | 1120 |
| 1 | 95 | 10 | 18.1 | 24.2 | 1430 |
| 1 | 120 | 10 | 19.6 | 26 | 1730 |
| 1 | 150 | 10 | 21.3 | 27.8 | 2035 |
| 1 | 185 | 10 | 23.7 | 30.4 | 2535 |
| 1 | 240 | 10 | 26.4 | 33.3 | 3175 |
| 1 | 300 | 16 | 30.4 | 38.2 | 3940 |
| 2 | 1.5 | 4 | 9.5 | 13.7 | 290 |
| 2 | 2.5 | 6 | 10.5 | 15.3 | 370 |
| 2 | 4 | 6 | 12.1 | 16.8 | 460 |
| 2 | 6 | 10 | 13.1 | 18.1 | 555 |
| 2 | 10 | 10 | 15.5 | 21.2 | 730 |
| 2 | 16 | 10 | 17.5 | 23.6 | 950 |
| 2 | 25 | 10 | 21 | 27.1 | 1300 |
| 2 | 35 | 10 | 23.2 | 29.3 | 1620 |
| 2 | 50 | 10 | 26 | 32.5 | 2045 |
| 3 | 1.5 | 6 | 10.1 | 14.8 | 350 |
| 3 | 2.5 | 6 | 11.2 | 15.9 | 415 |
| 3 | 4 | 10 | 12.9 | 17.6 | 520 |
| 3 | 6 | 10 | 14 | 18.9 | 640 |
| 3 | 10 | 10 | 16.S | 22.2 | 850 |
| 3 | 16 | 10 | 18.7 | 24.9 | 1115 |
| 3 | 25 | 10 | 22.6 | 28 | 1570 |
| 3 | 35 | 10 | 25 | 31.5 | 2040 |
| 3 | so | 10 | 28 | 35 | 2565 |
| 3 | 70 | 16 | 31.4 | 39.4 | 3500 |
| 3 | 95 | 25 | 36 | 44.4 | 4565 |
| 3 | 120 | 25 | 39.6 | 48.4 | 5625 |
| 3 | 150 | 25 | 43.4 | 52.2 | 6660 |
| 3 | 185 | 35 | 48.6 | 57.8 | 8325 |
| 3 | 240 | 35 | 55.3 | 64.9 | 10640 |
| 3 | 300 | 35 | 62.6 | 72.8 | 12895 |
| 4 | 1.5 | 6 | 11 | 15.7 | 400 |
| 4 | 2.5 | 6 | 12.2 | 16.9 | 480 |
| 4 | 4 | 10 | 14.1 | 18.8 | 610 |
| 4 | 6 | 10 | 15.3 | 21 | 765 |
| 4 | 10 | 10 | 18.1 | 23.8 | 1010 |
| 4 | 16 | 10 | 20.5 | 26.7 | 1345 |
| 4 | 25 | 10 | 24.8 | 31 | 2135 |
| 4 | 35 | 10 | 27.5 | 34 | 2515 |
| 4 | 50 | 16 | 30.8 | 38.4 | 3265 |
| 4 | 70 | 16 | 34.6 | 42.6 | 4360 |
| 4 | 95 | 25 | 39.7 | 48.1 | 5715 |
| 4 | 120 | 25 | 43.7 | 52.5 | 7060 |
| 4 | 150 | 35 | 48 | 56.8 | 8370 |
| 4 | 185 | 35 | 54.2 | 63.8 | 10645 |
| 4 | 240 | 35 | 61.1 | 71.3 | 13590 |
| 4 | 300 | 35 | 69.3 | 79.S | 16335 |
| 5 | 1.5 | 6 | 12.2 | 16.9 | 470 |
| 5 | 2.5 | 10 | 13.3 | 18.1 | 560 |
| 5 | 4 | 10 | 15.3 | 21 | 720 |
| 5 | 6 | 10 | 16.8 | 22.6 | 905 |
| 5 | 10 | 10 | 19.8 | 25.6 | 1200 |
| 5 | 16 | 10 | 22.8 | 29 | 1635 |
| 5 | 25 | 10 | 27.4 | 34 | 2385 |
| 7 | 1.5 | 10 | 13.3 | 18 | 535 |
| 7 | 2.5 | 10 | 14.5 | 20.1 | 650 |
| 12 | 1.5 | 10 | 17.4 | 23.4 | 845 |
| 12 | 2.5 | 10 | 19.2 | 25.2 | 1035 |
| 19 | 1.5 | 10 | 20.5 | 26.7 | 1130 |
| 19 | 2.5 | 10 | 22.8 | 29 | 1415 |
| 27 | 1.5 | 10 | 24.9 | 31.5 | 1580 |
| 27 | 2.5 | 10 | 27.7 | 34.2 | 1990 |
| 37 | 1.5 | 16 | 28.1 | 35.1 | 1990 |
| 37 | 2.5 | 16 | 31.2 | 38.8 | 2610 |
| NO. OF PAIRS/TRIPLES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1P | 0.75 | 7 | 10.9 | 190 |
| 1P | 1 | 7.6 | 11.5 | 215 |
| 1P | 1.5 | 8.3 | 12.2 | 245 |
| 1P | 2.5 | 9.1 | 13 | 290 |
| 1T | 0.75 | 7.4 | 11.2 | 210 |
| 1T | 1 | 8 | 11.9 | 235 |
| 1T | 1.5 | 8.8 | 12.6 | 275 |
| 1T | 2.5 | 9.7 | 13.7 | 330 |
| 2P | 0.75 | 11.1 | 15.7 | 405 |
| 2P | 1 | 12.1 | 16.8 | 470 |
| 2P | 1.5 | 13.3 | 18.1 | 545 |
| 2P | 2.5 | 14.8 | 20.3 | 655 |
| 2T | 0.75 | 12.1 | 16.9 | 475 |
| 2T | 1 | 13.2 | 18 | 540 |
| 2T | 1.5 | 14.6 | 20.1 | 640 |
| 3T | 0.75 | 12.8 | 17.5 | 535 |
| 3T | 1 | 14 | 18.7 | 610 |
| 3T | 1.5 | 15.5 | 21 | 735 |
| 4P | 0.75 | 12.8 | 17.6 | 545 |
| 4P | 1 | 14 | 18.8 | 620 |
| 4P | 1.5 | 15.5 | 21.3 | 750 |
| 4P | 2.5 | 17.2 | 23 | 910 |
| 4T | 0.75 | 14 | 19 | 630 |
| 4T | 1 | 15.4 | 21.1 | 740 |
| 4T | 1.5 | 17 | 22.8 | 885 |
| 4T | 2.5 | 19 | 24.8 | 1080 |
| 7P | 0.75 | 15.3 | 21.1 | 765 |
| 7P | 1 | 16.8 | 22.7 | 895 |
| 7P | 1.5 | 18.6 | 24.6 | 1060 |
| 7T | 0.75 | 17.5 | 23.4 | 945 |
| 7T | 1 | 19.2 | 25.4 | 1105 |
| 7T | 1.5 | 21.4 | 27.6 | 1340 |
| 8P | 0.75 | 16.3 | 22.2 | 860 |
| 8P | 1 | 17.9 | 24 | 1000 |
| 8P | 1.5 | 19.9 | 26.3 | 1205 |
| 8P | 2.5 | 22.2 | 28.6 | 1485 |
| 8T | 0.75 | 18.7 | 24.9 | 1070 |
| 8T | 1 | 20.6 | 27 | 1250 |
| 8T | 1.5 | 22.9 | 29.3 | 1520 |
| 8T | 2.5 | 26.1 | 32.5 | 1940 |
| 12P | 0.75 | 18.8 | 24.4 | 1130 |
| 12P | 1 | 21.4 | 27.8 | 1365 |
| 12P | 1.5 | 24.2 | 30.8 | 1700 |
| 12P | 2.5 | 27 | 33.6 | 2110 |
| 12T | 0.75 | 21.9 | 28.5 | 1440 |
| 12T | 1 | 24.6 | 31.2 | 1720 |
| 12T | 1.5 | 27.4 | 34.4 | 2145 |
| 16P | 0.75 | 22.4 | 29 | 1505 |
| 16P | 1 | 24.7 | 31.3 | 1765 |
| 16P | 1.5 | 27.5 | 34.5 | 2160 |
| 16T | 0.75 | 25.3 | 32.1 | 1860 |
| 16T | 1 | 27.9 | 34.9 | 2185 |
| 16T | 1.5 | 31.1 | 38.9 | 2800 |
| 19P | 0.75 | 24.1 | 30.9 | 1740 |
| 19P | 1 | 26.6 | 33.4 | 2030 |
| 19P | 1.5 | 29.7 | 36.7 | 2470 |
| 19T | 0.75 | 27.3 | 34.3 | 2140 |
| 19T | 1 | 30.1 | 38.1 | 2625 |
| 19T | 1.5 | 33.6 | 41.6 | 3230 |
| 24P | 0.75 | 26.7 | 33.7 | 2100 |
| 24P | 1 | 29.5 | 37 | 2500 |
| 24P | 1.5 | 33.3 | 41.5 | 3180 |
| 24T | 0.75 | 30.3 | 38.2 | 2700 |
| 24T | 1 | 33.9 | 42 | 3220 |
| 24T | 1.5 | 37.8 | 46.4 | 4025 |
| 32P | 0.75 | 30.4 | 38.3 | 2760 |
| 32P | 1 | 34 | 42.1 | 3305 |
| 32P | 1.5 | 38 | 46.3 | 4025 |
| 32T | 0.75 | 34.9 | 43.2 | 3475 |
| 32T | 1 | 36.8 | 47.1 | 4100 |
| 32T | 1.5 | 43.1 | 51.9 | 5115 |
| NO. OF PAIRS/TRIPLES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1P | 0.75 | 7.7 | 11.6 | 220 |
| 1P | 1 | 7.9 | 11.8 | 230 |
| 1P | 1.5 | 8.9 | 12.7 | 270 |
| 1P | 2.5 | 9.9 | 13.7 | 320 |
| 1T | 0.75 | 8.1 | 12 | 240 |
| 1T | 1 | 8.4 | 12.2 | 255 |
| 1T | 1.5 | 9.4 | 13.3 | 305 |
| 1T | 2.5 | 10.5 | 15.1 | 400 |
| 2P | 0.75 | 12.3 | 16.9 | 470 |
| 2P | 1 | 12.7 | 17.4 | 505 |
| 2P | 1.5 | 14.4 | 19.1 | 605 |
| 2P | 2.5 | 16.1 | 21.6 | 735 |
| 2T | 0.75 | 13.5 | 18.2 | 550 |
| 2T | 1 | 13.9 | 18.6 | 585 |
| 2T | 1.5 | 15.8 | 21.3 | 715 |
| 3T | 0.75 | 14.3 | 19 | 630 |
| 3T | 1 | 14.7 | 20.2 | 675 |
| 3T | 1.5 | 16.7 | 22.3 | 825 |
| 4P | 0.75 | 14.3 | 19.1 | 635 |
| 4P | 1 | 14.7 | 20.3 | 685 |
| 4P | 1.5 | 16.8 | 22.5 | 835 |
| 4P | 2.5 | 18.8 | 24.6 | 1020 |
| 4T | 0.75 | 15.7 | 21.4 | 760 |
| 4T | 1 | 16.2 | 21.9 | 810 |
| 4T | 1.5 | 18.5 | 24.2 | 990 |
| 4T | 2.5 | 20.8 | 26.5 | 1225 |
| 7P | 0.75 | 17.2 | 22.9 | 895 |
| 7P | 1 | 17.7 | 23.6 | 975 |
| 7P | 1.5 | 20.2 | 26.2 | 1190 |
| 7T | 0.75 | 19.6 | 25.6 | 1125 |
| 7T | 1 | 20.2 | 26.4 | 1220 |
| 7T | 1.5 | 23.2 | 29.4 | 1515 |
| 8P | 0.75 | 18.3 | 24.2 | 1005 |
| 8P | 1 | 18.8 | 25 | 1095 |
| 8P | 1.5 | 21.6 | 28 | 1355 |
| 8P | 2.5 | 24.3 | 30.7 | 1695 |
| 8T | 0.75 | 21.1 | 27.3 | 1270 |
| 8T | 1 | 21.7 | 28.1 | 1380 |
| 8T | 1.5 | 25 | 31.4 | 1735 |
| 8T | 2.5 | 28.6 | 35 | 2205 |
| 12P | 0.75 | 21.8 | 28.2 | 1390 |
| 12P | 1 | 22.5 | 28.9 | 1500 |
| 12P | 1.5 | 26.3 | 32.9 | 1915 |
| 12P | 2.5 | 29.7 | 36.3 | 2395 |
| 12T | 0.75 | 24.7 | 31.3 | 1735 |
| 12T | 1 | 25.9 | 32.5 | 1905 |
| 12T | 1.5 | 29.8 | 36.8 | 2430 |
| 16P | 0.75 | 25.2 | 31.8 | 1795 |
| 16P | 1 | 26 | 32.6 | 1945 |
| 16P | 1.5 | 29.9 | 36.9 | 2440 |
| 16T | 0.75 | 28.5 | 35.3 | 2230 |
| 16T | 1 | 29.4 | 36.5 | 2340 |
| 16T | 1.5 | 33.9 | 41.7 | 3175 |
| 19P | 0.75 | 27.2 | 34 | 2070 |
| 19P | 1 | 28 | 34.8 | 2240 |
| 19P | 1.5 | 32.3 | 39.8 | 2885 |
| 19T | 0.75 | 30.8 | 38.3 | 2660 |
| 19T | 1 | 31.8 | 39.7 | 2915 |
| 19T | 1.5 | 36.7 | 44.6 | 3670 |
| 24P | 0.75 | 30.2 | 37.7 | 2590 |
| 24P | 1 | 31.1 | 39.1 | 2850 |
| 24P | 1.5 | 36.3 | 44.5 | 3595 |
| 24T | 0.75 | 34.2 | 42.2 | 3245 |
| 24T | 1 | 35.7 | 43.9 | 3580 |
| 24T | 1.5 | 41.2 | 49.8 | 4575 |
| 32P | 0.75 | 34.4 | 42.3 | 3295 |
| 32P | 1 | 35.9 | 44 | 3650 |
| 32P | 1.5 | 41.4 | 49.7 | 4565 |
| 32T | 0.75 | 39.4 | 47.8 | 4195 |
| 32T | 1 | 40.7 | 49.3 | 4570 |
| 32T | 1.5 | 47.1 | 55.8 | 5830 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL BRAID CROSS SECTION mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 10 | 4 | 9.9 | 14.3 | 355 |
| 1 | 16 | 6 | 11 | 151 | 435 |
| 1 | 25 | 10 | 12.7 | 17.4 | 596 |
| 1 | 35 | 10 | 13.8 | 18.7 | 740 |
| 1 | 50 | 10 | 15 | 20.7 | 895 |
| 1 | 70 | 10 | 16.3 | 22.2 | 1150 |
| 1 | 95 | 10 | 18.7 | 24.9 | 1470 |
| 1 | 120 | 10 | 20.2 | 26.6 | 1770 |
| 1 | 150 | 10 | 21.8 | 28.4 | 2080 |
| 1 | 185 | 10 | 24.2 | 31 | 2585 |
| 1 | 240 | 10 | 26.9 | 33.9 | 3230 |
| 1 | 300 | 16 | 30.9 | 8.7 | 4000 |
| 2 | 1.5 | 6 | 10.1 | 14.8 | 345 |
| 2 | 2.5 | 6 | 11.3 | 16 | 410 |
| 2 | 4 | 10 | 13.1 | 17.8 | 510 |
| 2 | 6 | 10 | 13.7 | 18.6 | 590 |
| 2 | 10 | 10 | 16.7 | 22.4 | 800 |
| 2 | 16 | 10 | 18.9 | 25.1 | 1035 |
| 2 | 25 | 10 | 22.4 | 28.5 | 1395 |
| 2 | 35 | 10 | 24.6 | 30.7 | 1740 |
| 2 | 50 | 10 | 27.1 | 33.6 | 2150 |
| 3 | 1.5 | 6 | 10.7 | 15.5 | 380 |
| 3 | 2.5 | 6 | 12 | 16.7 | 460 |
| 3 | 4 | 10 | 14 | 18.7 | 570 |
| 3 | 6 | 10 | 14.6 | 20.3 | 685 |
| 3 | 10 | 10 | 17.8 | 23.5 | 920 |
| 3 | 16 | 10 | 20.2 | 26.4 | 1210 |
| 3 | 25 | 10 | 24.1 | 30.3 | 1690 |
| 3 | 35 | 10 | 26.5 | 33.1 | 2160 |
| 3 | 50 | 10 | 29.1 | 36.1 | 2690 |
| 3 | 70 | 16 | 32.1 | 40.1 | 3600 |
| 3 | 95 | 25 | 37.1 | 45.5 | 4715 |
| 3 | 120 | 25 | 40.8 | 49.6 | 5795 |
| 3 | 150 | 35 | 44.6 | 53.4 | 6830 |
| 3 | 185 | 35 | 49.8 | 59 | 8515 |
| 3 | 240 | 35 | 56.5 | 66.1 | 10860 |
| 3 | 300 | 35 | 63.8 | 74 | 13135 |
| 4 | 1.5 | 6 | 11.7 | 16.4 | 435 |
| 4 | 2.5 | 10 | 13.1 | 17.8 | 525 |
| 4 | 4 | 10 | 15.3 | 20.8 | 680 |
| 4 | 6 | 10 | 16 | 21.7 | 815 |
| 4 | 10 | 10 | 19.5 | 25.3 | 1100 |
| 4 | 16 | 10 | 22.2 | 28.4 | 1465 |
| 4 | 25 | 10 | 26.5 | 32.7 | 2065 |
| 4 | 35 | 10 | 29.1 | 35.7 | 2660 |
| 4 | 50 | 16 | 32.1 | 39.7 | 3420 |
| 4 | 70 | 25 | 35.4 | 43.4 | 4490 |
| 4 | 95 | 25 | 41 | 49.4 | 5900 |
| 4 | 120 | 35 | 45 | 53.8 | 7260 |
| 4 | 150 | 35 | 49.3 | 58.1 | 8590 |
| 4 | 185 | 35 | 55.5 | 65.1 | 10890 |
| 4 | 240 | 35 | 62.5 | 72.7 | 13860 |
| 5 | 1.5 | 10 | 13 | 17.8 | 515 |
| 5 | 2.5 | 10 | 14.4 | 19.1 | 615 |
| 5 | 4 | 10 | 16.6 | 22.4 | 800 |
| 5 | 6 | 10 | 17.6 | 23.4 | 965 |
| 5 | 10 | 10 | 21.5 | 27.3 | 1320 |
| 5 | 16 | 10 | 24.7 | 30.9 | 1800 |
| 5 | 25 | 10 | 29.3 | 35.9 | 2555 |
| 7 | 1.5 | 10 | 14.2 | 18.9 | 590 |
| 7 | 2.5 | 10 | 15.7 | 21.2 | 720 |
| 12 | 1.5 | 10 | 18.7 | 24.7 | 935 |
| 12 | 2.5 | 10 | 20.9 | 26.8 | 1155 |
| 19 | 1.5 | 10 | 22.1 | 28.2 | 1250 |
| 19 | 2.5 | 10 | 24.8 | 30.9 | 1590 |
| 27 | 1.5 | 10 | 26.8 | 33.4 | 1760 |
| 27 | 2.5 | 16 | 30.1 | 37.1 | 2310 |
| 37 | 1.5 | 16 | 30.3 | 37.8 | 2305 |
| 37 | 2.5 | 16 | 34 | 41.5 | 2915 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL BRAID CROSS SECTION mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 25 | 10 | 22 | 27.4 | 1140 |
| 1 | 35 | 10 | 23.1 | 30.4 | 1360 |
| 1 | 50 | 10 | 24 | 31.3 | 1505 |
| 1 | 70 | 10 | 25.6 | 33.1 | 1810 |
| 1 | 95 | 10 | 27.3 | 34.8 | 2125 |
| 1 | 120 | 10 | 28.8 | 36.5 | 2460 |
| 1 | 150 | 16 | 30 | 38.5 | 2855 |
| 1 | 185 | 16 | 32 | 40.6 | 3345 |
| 1 | 240 | 16 | 34.6 | 43.3 | 4030 |
| 1 | 300 | 25 | 38.1 | 47.3 | 4795 |
| 3 | 25 | 35 | 44.5 | 52.5 | 3465 |
| 3 | 35 | 35 | 46.9 | 56.7 | 4065 |
| 3 | 50 | 35 | 49.5 | 59.5 | 4645 |
| 3 | 70 | 35 | 53 | 63.4 | 5695 |
| 3 | 95 | 35 | 57.5 | 68.3 | 6780 |
| 3 | 120 | 35 | 60.3 | 71.3 | 7745 |
| 3 | 150 | 35 | 63.5 | 74.7 | 8765 |
| 3 | 185 | 35 | 67.8 | 79.4 | 10360 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL BRAID CROSS SECTION mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 25 | 10 | 24.6 | 30.3 | 1330 |
| 1 | 35 | 10 | 25.7 | 33.2 | 1565 |
| 1 | 50 | 10 | 26.6 | 34.1 | 1720 |
| 1 | 70 | 10 | 28.2 | 35.9 | 2030 |
| 1 | 95 | 10 | 29.9 | 37.7 | 2355 |
| 1 | 120 | 16 | 31.4 | 40 | 2790 |
| 1 | 150 | 16 | 32.6 | 41.4 | 3110 |
| 1 | 185 | 16 | 34.7 | 43.6 | 3630 |
| 1 | 240 | 25 | 37.2 | 46.4 | 4335 |
| 1 | 300 | 25 | 40.7 | 50.1 | 5100 |
| 3 | 25 | 35 | 50.4 | 58.8 | 4140 |
| 3 | 35 | 35 | 52.7 | 63.1 | 4850 |
| 3 | 50 | 35 | 55.1 | 65.7 | 5475 |
| 3 | 70 | 35 | 58.5 | 69.3 | 6340 |
| 3 | 95 | 35 | 62.8 | 74 | 7530 |
| 3 | 120 | 35 | 66 | 77.4 | 8610 |
| 3 | 150 | 35 | 68.6 | 80.2 | 9540 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL BRAID CROSS SECTION mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 50 | 16 | 33.7 | 42.4 | 2445 |
| 1 | 70 | 25 | 35.3 | 44.3 | 2790 |
| 1 | 95 | 25 | 37 | 46 | 3145 |
| 1 | 120 | 25 | 38.5 | 47.7 | 3520 |
| 1 | 150 | 25 | 39.7 | 49.1 | 3860 |
| 1 | 185 | 25 | 41.7 | 51.1 | 4390 |
| 1 | 240 | 35 | 45.2 | 55 | 5295 |
| 1 | 300 | 35 | 48.7 | 58.7 | 6145 |
| 3 | 50 | 35 | 70.8 | 82.6 | 7645 |
| 3 | 70 | 35 | 74.3 | 86.3 | 8710 |
| 3 | 95 | 35 | 77.9 | 90.3 | 9915 |
| 3 | 120 | 35 | 81.2 | 93.8 | 11030 |
| 3 | 150 | 35 | 83.8 | 96.6 | 12080 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL BRAID CROSS SECTION mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 25 | 10 | 20.6 | 25.8 | 1045 |
| 1 | 35 | 10 | 21.7 | 28.7 | 1260 |
| 1 | 50 | 10 | 22.6 | 29.6 | 1400 |
| 1 | 70 | 10 | 24.2 | 31.5 | 1700 |
| 1 | 95 | 10 | 25.9 | 33.4 | 2025 |
| 1 | 120 | 10 | 27.4 | 34.9 | 2340 |
| 1 | 150 | 10 | 28.6 | 36.3 | 2645 |
| 1 | 185 | 16 | 30.6 | 39.1 | 3230 |
| 1 | 240 | 16 | 33.4 | 42.1 | 3930 |
| 1 | 300 | 25 | 37.3 | 46.5 | 4725 |
| 3 | 25 | 25 | 40.1 | 47.7 | 2955 |
| 3 | 35 | 25 | 43.4 | 53 | 3705 |
| 3 | 50 | 35 | 45.4 | 55.2 | 4190 |
| 3 | 70 | 35 | 48.8 | 58.8 | 5085 |
| 3 | 95 | 35 | 53.2 | 63.6 | 6300 |
| 3 | 120 | 35 | 56.8 | 67.4 | 7290 |
| 3 | 150 | 35 | 59.4 | 70.2 | 8180 |
| 3 | 185 | 35 | 64.3 | 75.5 | 9850 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL BRAID CROSS SECTION mm² | NOMINAL DIAMETER UNDER ARMOUR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 35 | 10 | 27.7 | 35.2 | 1715 |
| 1 | 50 | 10 | 28.6 | 36.3 | 1890 |
| 1 | 70 | 16 | 30.2 | 38.7 | 2295 |
| 1 | 95 | 16 | 31.9 | 40.5 | 2630 |
| 1 | 120 | 16 | 33.5 | 42.2 | 2990 |
| 1 | 150 | 25 | 35.5 | 44.5 | 3345 |
| 1 | 185 | 25 | 36.7 | 45.7 | 3830 |
| 1 | 240 | 25 | 39.2 | 48.4 | 4540 |
| 1 | 300 | 25 | 43.7 | 53.3 | 5485 |
| 3 | 35 | 35 | 57.5 | 68.3 | 5445 |
| 3 | 50 | 35 | 59.7 | 70.2 | 5915 |
| 3 | 70 | 35 | 63.5 | 74.7 | 7045 |
| 3 | 95 | 35 | 67.1 | 78.7 | 8160 |
| 3 | 120 | 35 | 70.4 | 82.2 | 9285 |
| 3 | 150 | 35 | 73 | 85 | 10235 |
Why Huadong Cable
Our vision is to become an internationally renowned brand in the field of cables; customer satisfaction, employee promotion, and corporate development are our service tenets; high standards, globalization, and building an international brand are our business philosophy.
About HuaDong
Henan Huadong Cable Co., Ltd. was founded in 1999 which is a joint-stock national high-tech enterprise integrating scientific research, industry and trade. Huadong Cable is deeply integrated into the "Belt and Road" construction and exports to more than 130 countries around the world, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.
HuaDong Technology
Huadong Cable focuses on technology research and development which has 60 professional personnel with senior professional titles, and has more than 100 invention and utility model patents. Huadong has a team of experienced technical engineers to ensure the quality of cables.
Main Products
Our main products : marine cables, power cables, overhead cables, fireproof cables, low-smoke halogen-free cables, rubber cables, high temperature resistant cables, instrument and control cables, solar cables and other products.
ISO, SGS, BV CERTIFICATION; TECHNICAL PATENTS AND PRODUCT CERTIFICATION
TECHNICAL AND CLIENTS
130+
Export Countries
100+
Technical Patents
3 billion+
Annual Productivity
400+
Employees
