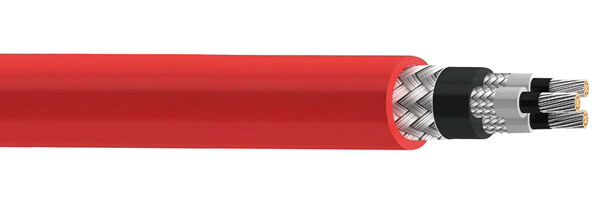

BS6883 Cable Description
British Standard BS6883 covers the specification for fixed wiring of lighting, power, control, instrumentation, and propulsion circuits in ships with rated voltages up to 8.7/15kV.
The cable’s outer sheath is made of LSZH material, which is crucial for minimizing risks to life and sensitive equipment in the event of a fire on offshore installations.
BS6883 Cable Construction
| BS 6883 6571TQ Type SW4 Cable | BS 6883 657TQ Type SW4 Cable | BS 6883 / 658TQ Type SW4 Armoured Cable | |
|---|---|---|---|
| Conductor | Class 2 tinned copper conductor | 1mm² to 1.5mm²: Class 2 or Class 5 tinned copper 2.5mm² and above: Class 2 tinned copper |
|
| Insulation | Halogen-free elastomer compound EPR | ||
| Sheath | HOFR (Heat and Oil Resistant and Flame Retardant), halogen-free elastomer compound |
||
BS6883 Cable Characteristics
| BS 6883 6571TQ Type SW4 Cable | BS 6883 657TQ Type SW4 Cable | BS 6883 / 658TQ Type SW4 Armoured Cable | |
|---|---|---|---|
| Voltage Rating | 0.6/1kV | ||
| Temperature Rating | Fixed: -40°C to +90°C Flexed: -15°C to +90°C |
||
| Minimum Bending Radius | Up to 10mm² - Fixed: 3 x overall diameter 16mm² to 25mm² - Fixed: 4 x overall diameter Above 25mm² - Fixed: 6 x overall diameter | Up to 25mm²: 4 x overall diameter Above 25mm²: 6 x overall diameter |
|
- BS 6883 6571TQ Type SW4 Cable
- BS 6883 657TQ Type SW4 Cable

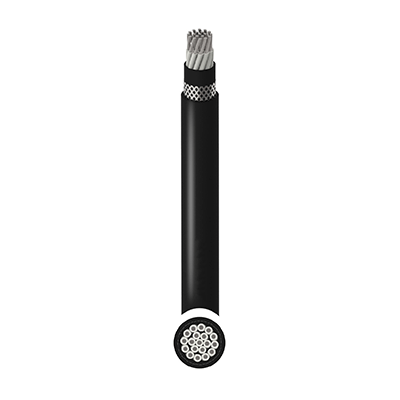

- BS 6883 / 658TQ Type SW4 Armoured Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 1 | 0.8 | 1 | 4.8 | 34 |
| 1 | 1.5 | 0.8 | 1 | 5.1 | 40 |
| 1 | 2.5 | 0.8 | 1 | 5.6 | 54 |
| 1 | 4 | 1 | 1 | 6.5 | 78 |
| 1 | 6 | 1 | 1 | 7.1 | 101 |
| 1 | 10 | 1 | 1 | 8.1 | 144 |
| 1 | 16 | 1 | 1.1 | 9.5 | 216 |
| 1 | 25 | 1.2 | 1.2 | 11.4 | 328 |
| 1 | 35 | 1.2 | 1.2 | 12.6 | 429 |
| 1 | 50 | 1.4 | 1.3 | 14.3 | 551 |
| 1 | 70 | 1.4 | 1.3 | 16 | 753 |
| 1 | 95 | 1.6 | 1.4 | 18.6 | 1049 |
| 1 | 120 | 1.6 | 1.5 | 20.3 | 1274 |
| 1 | 150 | 1.8 | 1.6 | 22.4 | 1568 |
| 1 | 185 | 2 | 1.7 | 24.9 | 1949 |
| 1 | 240 | 2.2 | 1.8 | 28 | 2530 |
| 1 | 300 | 2.4 | 1.9 | 30.9 | 3134 |
| 1 | 400 | 2.6 | 2 | 35.3 | 4258 |
| 1 | 500 | 2.8 | 2.2 | 39.3 | 5337 |
| NO. OF CORES | CONDUCTOR CLASS | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 5 | 1 | 0.8 | 1 | 4.8 | 34 |
| 1 | 5 | 1.5 | 0.8 | 1 | 5.1 | 40 |
| 1 | 2 | 2.5 | 0.8 | 1 | 5.6 | 54 |
| 1 | 2 | 4 | 1 | 1 | 6.5 | 78 |
| 1 | 2 | 6 | 1 | 1 | 7.1 | 101 |
| 1 | 2 | 10 | 1 | 1 | 8.1 | 144 |
| 1 | 2 | 16 | 1 | 1.1 | 9.5 | 216 |
| 1 | 2 | 25 | 1.2 | 1.2 | 11.4 | 328 |
| 1 | 2 | 35 | 1.2 | 1.2 | 12.6 | 429 |
| 1 | 2 | 50 | 1.4 | 1.3 | 14.3 | 551 |
| 1 | 2 | 70 | 1.4 | 1.3 | 16 | 753 |
| 1 | 2 | 95 | 1.6 | 1.4 | 18.6 | 1049 |
| 1 | 2 | 120 | 1.6 | 1.5 | 20.3 | 1274 |
| 1 | 2 | 150 | 1.8 | 1.6 | 22.4 | 1568 |
| 1 | 2 | 185 | 2 | 1.7 | 24.9 | 1949 |
| 1 | 2 | 240 | 2.2 | 1.8 | 28 | 2530 |
| 1 | 2 | 300 | 2.4 | 1.9 | 30.9 | 3134 |
| 1 | 2 | 400 | 2.6 | 2 | 35.3 | 4258 |
| 1 | 2 | 500 | 2.8 | 2.2 | 39.3 | 5337 |
| 2 | 5 | 1 | 0.8 | 1 | 8.1 | 86 |
| 2 | 5 | 1.5 | 0.8 | 1.1 | 8.5 | 103 |
| 2 | 2 | 2.5 | 0.8 | 1.1 | 9.5 | 140 |
| 2 | 2 | 4 | 1 | 1.2 | 11.6 | 210 |
| 2 | 2 | 6 | 1 | 1.2 | 12.7 | 270 |
| 2 | 2 | 10 | 1 | 1.3 | 14.9 | 391 |
| 2 | 2 | 16 | 1 | 1.4 | 17.5 | 574 |
| 2 | 2 | 25 | 1.2 | 1.5 | 21.2 | 864 |
| 2 | 2 | 35 | 1.2 | 1.6 | 23.7 | 1129 |
| 2 | 2 | 50 | 1.4 | 1.7 | 26.9 | 1452 |
| 2 | 2 | 70 | 1.4 | 1.9 | 30.8 | 1991 |
| 2 | 2 | 95 | 1.6 | 2.1 | 35.9 | 2766 |
| 2 | 2 | 120 | 1.6 | 2.2 | 39.1 | 3338 |
| 2 | 2 | 150 | 1.8 | 2.3 | 43.2 | 4097 |
| 3 | 5 | 1 | 0.8 | 1.1 | 8.4 | 100 |
| 3 | 5 | 1.5 | 0.8 | 1.1 | 9 | 122 |
| 3 | 2 | 2.5 | 0.8 | 1.1 | 10.1 | 169 |
| 3 | 2 | 4 | 1 | 1.2 | 12.3 | 257 |
| 3 | 2 | 6 | 1 | 1.2 | 13.5 | 335 |
| 3 | 2 | 10 | 1 | 1.3 | 15.9 | 490 |
| 3 | 2 | 16 | 1 | 1.4 | 18.6 | 732 |
| 3 | 2 | 25 | 1.2 | 1.6 | 22.7 | 1121 |
| 3 | 2 | 35 | 1.2 | 1.7 | 25.4 | 1474 |
| 3 | 2 | 50 | 1.4 | 1.8 | 28.9 | 1893 |
| 3 | 2 | 70 | 1.4 | 2 | 33 | 2611 |
| 3 | 2 | 95 | 1.6 | 2.2 | 38.5 | 3638 |
| 3 | 2 | 120 | 1.6 | 2.3 | 41.9 | 4400 |
| 3 | 2 | 150 | 1.8 | 2.5 | 46.5 | 5425 |
| 3 | 2 | 185 | 2 | 2.7 | 51.8 | 6754 |
| 3 | 2 | 240 | 2.2 | 2.9 | 58.6 | 8770 |
| 4 | 5 | 1 | 0.8 | 1.1 | 9.1 | 122 |
| 4 | 5 | 1.5 | 0.8 | 1.1 | 9.8 | 149 |
| 4 | 2 | 2.5 | 0.8 | 1.1 | 11 | 210 |
| 4 | 2 | 4 | 1 | 1.2 | 13.4 | 321 |
| 4 | 2 | 6 | 1 | 1.3 | 15 | 428 |
| 4 | 2 | 10 | 1 | 1.4 | 17.6 | 627 |
| 4 | 2 | 16 | 1 | 1.5 | 20.7 | 940 |
| 4 | 2 | 25 | 1.2 | 1.7 | 25.3 | 1442 |
| 4 | 2 | 35 | 1.2 | 1.8 | 28.3 | 1899 |
| 4 | 2 | 50 | 1.4 | 1.9 | 32.1 | 2439 |
| 4 | 2 | 70 | 1.4 | 2.1 | 36.7 | 3370 |
| 4 | 2 | 95 | 1.6 | 2.3 | 42.8 | 4700 |
| 4 | 2 | 120 | 1.6 | 2.5 | 46.8 | 5710 |
| 4 | 2 | 150 | 1.8 | 2.7 | 51.9 | 7035 |
| 5 | 5 | 1.5 | 0.8 | 1.1 | 10.7 | 180 |
| 5 | 2 | 2.5 | 0.8 | 1.2 | 12.2 | 260 |
| 5 | 2 | 4 | 1 | 1.3 | 15.2 | 394 |
| 5 | 2 | 6 | 1 | 1.4 | 16.9 | 463 |
| 5 | 2 | 10 | 1 | 1.5 | 19.6 | 685 |
| 7 | 5 | 1.5 | 0.8 | 1.2 | 12.8 | 252 |
| 7 | 2 | 2.5 | 0.8 | 1.2 | 14.4 | 359 |
| 12 | 5 | 1.5 | 0.8 | 1.3 | 15.6 | 370 |
| 12 | 2 | 2.5 | 0.8 | 1.4 | 17.9 | 543 |
| 19 | 5 | 1.5 | 0.8 | 1.4 | 19.4 | 570 |
| 19 | 2 | 2.5 | 0.8 | 1.5 | 22.2 | 842 |
| 27 | 5 | 1.5 | 0.8 | 1.6 | 22.4 | 766 |
| 37 | 5 | 1.5 | 0.8 | 1.7 | 26.2 | 1037 |
| NO. OF CORES | CONDUCTOR CLASS | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF INNER SHEATH mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER OF STEEL WIRES IN BRAID mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 2 | 5 | 1 | 0.8 | 1 | 0.3 | 1.2 | 11.6 | 200 |
| 2 | 5 | 1.5 | 0.8 | 1.1 | 0.3 | 1.2 | 12.4 | 241 |
| 2 | 2 | 2.5 | 0.8 | 1.1 | 0.3 | 1.2 | 13.4 | 283 |
| 2 | 2 | 4 | 1 | 1.2 | 0.3 | 1.3 | 15.6 | 387 |
| 2 | 2 | 6 | 1 | 1.2 | 0.3 | 1.4 | 16.9 | 476 |
| 2 | 2 | 10 | 1 | 1.3 | 0.3 | 1.4 | 19.2 | 627 |
| 2 | 2 | 16 | 1 | 1.4 | 0.3 | 1.5 | 22 | 853 |
| 2 | 2 | 25 | 1.2 | 1.5 | 0.3 | 1.7 | 26.1 | 1212 |
| 2 | 2 | 35 | 1.2 | 1.6 | 0.3 | 1.8 | 28.8 | 1532 |
| 2 | 2 | 50 | 1.4 | 1.7 | 0.45 | 2 | 33 | 2038 |
| 2 | 2 | 70 | 1.4 | 1.9 | 0.45 | 2.1 | 37.1 | 2680 |
| 2 | 2 | 95 | 1.6 | 2.1 | 0.45 | 2.3 | 42.6 | 3593 |
| 2 | 2 | 120 | 1.6 | 2.2 | 0.45 | 2.5 | 46.2 | 4291 |
| 2 | 2 | 150 | 1.8 | 2.3 | 0.45 | 2.6 | 50.5 | 5120 |
| 2 | 2 | 185 | 2 | 2.5 | 0.45 | 2.8 | 55.7 | 6404 |
| 2 | 2 | 240 | 2.2 | 2.8 | 0.45 | 3.1 | 62.8 | 8210 |
| 2 | 2 | 300 | 2.4 | 3 | 0.45 | 3.3 | 69.1 | 10016 |
| 3 | 5 | 1 | 0.8 | 1.1 | 0.3 | 1.2 | 12.2 | 237 |
| 3 | 5 | 1.5 | 0.8 | 1.1 | 0.3 | 1.2 | 12.9 | 263 |
| 3 | 2 | 2.5 | 0.8 | 1.1 | 0.3 | 1.3 | 14.1 | 323 |
| 3 | 2 | 4 | 1 | 1.2 | 0.3 | 1.3 | 16.3 | 439 |
| 3 | 2 | 6 | 1 | 1.2 | 0.3 | 1.4 | 17.7 | 547 |
| 3 | 2 | 10 | 1 | 1.3 | 0.3 | 1.5 | 20.4 | 743 |
| 3 | 2 | 16 | 1 | 1.4 | 0.3 | 1.6 | 23.3 | 1029 |
| 3 | 2 | 25 | 1.2 | 1.6 | 0.3 | 1.8 | 27.8 | 1515 |
| 3 | 2 | 35 | 1.2 | 1.7 | 0.45 | 1.9 | 31.4 | 2032 |
| 3 | 2 | 50 | 1.4 | 1.8 | 0.45 | 2 | 35 | 2547 |
| 3 | 2 | 70 | 1.4 | 2 | 0.45 | 2.2 | 39.6 | 3340 |
| 3 | 2 | 95 | 1.6 | 2.2 | 0.45 | 2.4 | 45.5 | 4514 |
| 3 | 2 | 120 | 1.6 | 2.3 | 0.45 | 2.6 | 49.3 | 5408 |
| 3 | 2 | 150 | 1.8 | 2.5 | 0.45 | 2.8 | 54.3 | 6587 |
| 3 | 2 | 185 | 2 | 2.7 | 0.45 | 3 | 59.9 | 8197 |
| 3 | 2 | 240 | 2.2 | 2.9 | 0.45 | 3.2 | 67 | 10475 |
| 3 | 2 | 300 | 2.4 | 3.2 | 0.45 | 3.5 | 74.1 | 12878 |
| 4 | 5 | 1 | 0.8 | 1.1 | 0.3 | 1.2 | 12.9 | 262 |
| 4 | 5 | 1.5 | 0.8 | 1.1 | 0.3 | 1.3 | 13.9 | 301 |
| 4 | 2 | 2.5 | 0.8 | 1.1 | 0.3 | 1.3 | 15.1 | 384 |
| 4 | 2 | 4 | 1 | 1.2 | 0.3 | 1.4 | 17.7 | 532 |
| 4 | 2 | 6 | 1 | 1.3 | 0.3 | 1.5 | 19.4 | 673 |
| 4 | 2 | 10 | 1 | 1.4 | 0.3 | 1.6 | 22.3 | 917 |
| 4 | 2 | 16 | 1 | 1.5 | 0.3 | 1.7 | 25.6 | 1287 |
| 4 | 2 | 25 | 1.2 | 1.7 | 0.45 | 1.9 | 31.3 | 1999 |
| 4 | 2 | 35 | 1.2 | 1.8 | 0.45 | 2 | 34.2 | 2525 |
| 4 | 2 | 50 | 1.4 | 1.9 | 0.45 | 2.2 | 38.7 | 3159 |
| 4 | 2 | 70 | 1.4 | 2.1 | 0.45 | 2.4 | 43.7 | 4226 |
| 4 | 2 | 95 | 1.6 | 2.3 | 0.45 | 2.6 | 50.2 | 5718 |
| 4 | 2 | 120 | 1.6 | 2.5 | 0.45 | 2.8 | 54.6 | 6876 |
| 4 | 2 | 150 | 1.8 | 2.7 | 0.45 | 3 | 60.1 | 8357 |
| 4 | 2 | 185 | 2 | 2.9 | 0.45 | 3.2 | 66.3 | 10406 |
| 4 | 2 | 240 | 2.2 | 3.2 | 0.45 | 3.5 | 74.6 | 13363 |
| 4 | 2 | 300 | 2.4 | 3.5 | 0.45 | 3.8 | 82.4 | 16433 |
| 5 | 5 | 1.5 | 0.8 | 1.1 | 0.3 | 1.3 | 14.8 | 351 |
| 5 | 2 | 2.5 | 0.8 | 1.2 | 0.3 | 1.3 | 16.3 | 441 |
| 7 | 5 | 1.5 | 0.8 | 1.2 | 0.3 | 1.3 | 16.8 | 452 |
| 7 | 2 | 2.5 | 0.8 | 1.2 | 0.3 | 1.4 | 18.6 | 577 |
| 12 | 5 | 1.5 | 0.8 | 1.3 | 0.3 | 1.5 | 20.1 | 621 |
| 12 | 2 | 2.5 | 0.8 | 1.4 | 0.3 | 1.6 | 22.6 | 836 |
| 19 | 5 | 1.5 | 0.8 | 1.4 | 0.3 | 1.6 | 24.1 | 888 |
| 19 | 2 | 2.5 | 0.8 | 1.5 | 0.3 | 1.7 | 27.1 | 1202 |
| 27 | 5 | 1.5 | 0.8 | 1.6 | 0.3 | 1.8 | 27.5 | 1162 |
| 27 | 2 | 2.5 | 0.8 | 1.7 | 0.45 | 1.9 | 31.4 | 1714 |
| 37 | 5 | 1.5 | 0.8 | 1.7 | 0.45 | 1.9 | 32.1 | 1608 |
