M2X Cable

M2X Cable Description

M2X cables can withstand harsh environments, including contact with oil, grease, and various temperatures, thus offering high reliability in marine applications. They are commonly used in shipboard switchboards, control panels, and general power distribution systems. Suitable for most areas on ship decks.

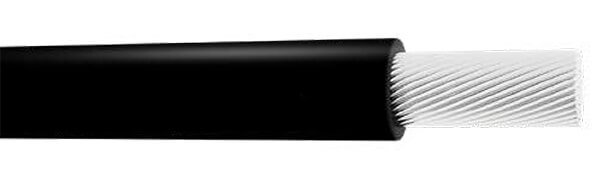

M2X Cable Construction

Conductor
Stranded annealed copper (IEC 60228 Class 2 or 5)
Insulation
Halogen free, flame retardant, cross linked polyolefin compound (HF90)

M2X Cable Characteristics

Rated Voltage
0,6 / 1 kV (1.2 kV)
Temperature Range
-40°C / + 90°C
Min. Bending Radius
4 x D

M2X Cable Specifications

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Bending Radius Fixed Min. (mm)	Max Resistance of Conductors at 20℃ (ohm / km)	Current Carrying Capacity at 45℃ (A)
1 x 1	2,7	15	11	19,5	16
1 x 1,5	2,9	19	12	13,3	21
1 x 2,5	3,2	28	13	7,98	29
1 x 4	3,7	41	15	4,95	39
1 x 6	4,2	59	17	3,30	50
1 x 10	5,5	98	22	1,91	71
1 x 16	6,2	148	25	1,21	93
1 x 25	8,6	240	35	0,78	122
1 x 35	9,7	330	39	0,554	152
1 x 50	11,6	464	47	0,386	195
1 x 70	13,0	648	53	0,272	240
1 x 95	14,9	841	60	0,206	286
1 x 120	17,0	1076	68	0,161	332
1 x 150	18,8	1336	76	0,129	382
1 x 185	21,5	1675	86	0,106	432
1 x 240	24,0	2172	96	0,0801	508
1 x 300	26,6	2703	107	0,0641	590
