AHXAMK Cable Description
AHXAMK cables utilize an aluminum/plastic laminate, providing radial water resistance. Its construction includes an aluminum conductor for a lightweight design; a polyethylene (PE) outer sheath for high abrasion resistance; and a cross-linked polyethylene (XLPE) insulation layer for high dielectric strength and insulation resistance.
These cables have three insulated cores stacked together, with the specific configuration depending on the cable type. The AHXAMK-W has a central exposed ground conductor, while the AHXAMK-WM has a central galvanized steel wire rope support. At the same time, AHXAMK-WP lacks a central support element.
AHXAMK Cable Construction
| AHXAMK-W Cable | AHXAMK-WP Cable | AHXAMK-WM Cable | |
|---|---|---|---|
| Conductor | Class 2 stranded Aluminium (watertight) | ||
| Insulation | XLPE (Cross-Linked Polyethylene) | ||
| Screen | Al/PET (Aluminium/Plastic laminate) | ||
| Outer Sheath | PE (Polyethylene) | ||
| Phase Support | - | Galvanised steel rope with water resistant PE | |
| Earth Conductor | Bare Copper | - | |
AHXAMK Cable Characteristics
| AHXAMK-W Cable | AHXAMK-WP Cable | AHXAMK-WM Cable | |
|---|---|---|---|
| Voltage | 12/20 (24)kV 19/33 (36)kV | 12/20 (24)kV | |
| Temperature Rating | -50°C to +90°C Max. conductor temperature during short circuit max. 5s: +250°C Minimum temperature during handling: -20°C Minimum temperature during transport: -40°C |
||

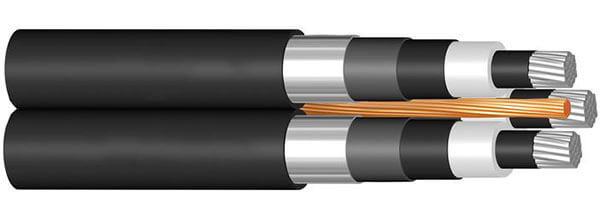

- AHXAMK-W Cable
- AHXAMK-WP Cable
- AHXAMK-WM Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL EARTH CONDUCTOR AREA SIZE mm² | NOMINAL EARTH CONDUCTOR DIAMETER mm | NOMINAL DIAMETER OVER INSULATION WITHOUT SCREEN mm | NOMINAL INSULATION THICKNESS mm | NOMINAL THICKNESS OF ALUMINIUM LAMINATED FOIL mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OUTER DIAMETER OF COMPLETE CABLE mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|---|---|
| 12/20 (24)KV | ||||||||||
| 3 | 50 | 8.0 | 35 | 6.9 | 19.3 | 5.5 | 0.2 | 2.8 | 59 | 2243 |
| 3 | 70 | 9.6 | 35 | 6.9 | 20.7 | 5.5 | 0.2 | 2.8 | 62 | 2531 |
| 3 | 95 | 11.1 | 25 | - | 22.4 | 5.5 | 0.2 | 2.9 | 66 | 2817 |
| 3 | 95 | 11.1 | 35 | 6.9 | 22.4 | 5.5 | 0.2 | 2.9 | 66 | 2905 |
| 3 | 120 | 12.6 | 35 | 6.9 | 23.4 | 5.5 | 0.2 | 2.9 | 68 | 3200 |
| 3 | 150 | 13.9 | 35 | 6.9 | 25.1 | 5.5 | 0.2 | 2.9 | 71 | 3570 |
| 3 | 185 | 15.6 | 35 | 6.9 | 27.0 | 5.5 | 0.2 | 3.0 | 76 | 4091 |
| 3 | 185 | 15.6 | 50 | 8.2 | 27.0 | 5.5 | 0.2 | 3.0 | 76 | 4191 |
| 3 | 185 | 15.6 | 70 | 9.9 | 27.0 | 5.5 | 0.2 | 3.0 | 76 | 4373 |
| 3 | 240 | 18.0 | 35 | 6.9 | 29.2 | 5.5 | 0.3 | 3.1 | 82 | 4868 |
| 3 | 240 | 18.0 | 70 | 9.9 | 29.2 | 5.5 | 0.3 | 3.1 | 82 | 5173 |
| 3 | 300 | 19.8 | 35 | 6.9 | 31.0 | 5.5 | 0.3 | 3.2 | 86 | 5603 |
| 3 | 300 | 19.8 | 70 | 9.9 | 31.0 | 5.5 | 0.3 | 3.2 | 86 | 5893 |
| 19/33 (36)KV | ||||||||||
| 3 | 95 | 11.0 | 35 | 7 | 26.7 | 8 | 0.3 | 3.0 | 76 | 3634 |
| 3 | 120 | 12.6 | 35 | 7 | 28.2 | 8 | 0.3 | 3.0 | 79 | 4034 |
| 3 | 150 | 13.9 | 35 | 7 | 29.5 | 8 | 0.3 | 3.1 | 82 | 4410 |
| 3 | 150 | 13.9 | 70 | 10 | 29.5 | 8 | 0.3 | 3.1 | 85 | 4883 |
| 3 | 185 | 15.6 | 35 | 7 | 31.2 | 8 | 0.3 | 3.1 | 86 | 4927 |
| 3 | 185 | 15.6 | 70 | 10 | 31.2 | 8 | 0.3 | 3.1 | 86 | 5217 |
| 3 | 240 | 18.0 | 35 | 7 | 33.6 | 8 | 0.3 | 3.2 | 92 | 5693 |
| 3 | 240 | 18.0 | 70 | 10 | 33.6 | 8 | 0.3 | 3.2 | 92 | 5983 |
| 3 | 300 | 19.8 | 35 | 7 | 35.4 | 8 | 0.3 | 3.3 | 96 | 6468 |
| 3 | 300 | 19.8 | 70 | 10 | 35.4 | 8 | 0.3 | 3.3 | 96 | 6758 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL DIAMETER OVER INSULATION WITHOUT SCREEN mm | NOMINAL INSULATION THICKNESS mm | NOMINAL THICKNESS OF ALUMINIUM LAMINATED FOIL mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OUTER DIAMETER OF COMPLETE CABLE mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 12/20 (24)KV | ||||||||
| 3x1 | 50 | 8.0 | 19.3 | 5.5 | 0.2 | 2.8 | 59 | 1939 |
| 3x1 | 70 | 9.6 | 20.7 | 5.5 | 0.2 | 2.8 | 62 | 2226 |
| 3x1 | 95 | 11.1 | 22.4 | 5.5 | 0.2 | 2.9 | 66 | 2598 |
| 3x1 | 120 | 12.6 | 23.4 | 5.5 | 0.2 | 2.9 | 68 | 2898 |
| 3x1 | 150 | 13.9 | 25.1 | 5.5 | 0.2 | 2.9 | 71 | 3268 |
| 3x1 | 185 | 15.6 | 27.0 | 5.5 | 0.2 | 3.0 | 76 | 3784 |
| 3x1 | 240 | 18.0 | 29.2 | 5.5 | 0.3 | 3.1 | 82 | 4563 |
| 3x1 | 300 | 19.8 | 31.0 | 5.5 | 0.3 | 3.2 | 86 | 5301 |
| 19/33 (36)KV Single Core | ||||||||
| 1 | 400 | 22.4 | 38.0 | 8 | 0.3 | 2.5 | 46 | 2193 |
| 1 | 500 | 25.7 | 41.3 | 8 | 0.3 | 2.6 | 49 | 2671 |
| 1 | 630 | 29.3 | 45.2 | 8 | 0.3 | 2.7 | 53 | 3266 |
| 1 | 800 | 33.3 | 49.1 | 8 | 0.3 | 2.8 | 57 | 3946 |
| 1 | 1000 | 39.2 | 55.0 | 8 | 0.3 | 3.0 | 64 | 4722 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL AREA SIZE PHASE SUPPORT mm² | NOMINAL DIAMETER OVER INSULATION WITHOUT SCREEN mm | NOMINAL INSULATION THICKNESS mm | NOMINAL THICKNESS OF ALUMINIUM LAMINATED FOIL mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OUTER DIAMETER OF COMPLETE CABLE mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 50 | 8 | 62 | 19.3 | 5.5 | 0.2 | 1.8 | 65 | 2257 |
| 3 | 70 | 9.6 | 62 | 20.7 | 5.5 | 0.2 | 1.9 | 69 | 2552 |
| 3 | 95 | 11.1 | 62 | 22.4 | 5.5 | 0.2 | 1.9 | 72 | 2882 |
| 3 | 120 | 12.6 | 62 | 23.8 | 5.5 | 0.2 | 2 | 75 | 3254 |
| 3 | 150 | 13.9 | 62 | 25.3 | 5.5 | 0.2 | 2 | 78 | 3568 |
| 3 | 185 | 15.6 | 62 | 26.8 | 5.5 | 0.2 | 2.1 | 80 | 4100 |
| 3 | 240 | 18 | 62 | 29.2 | 5.5 | 0.2 | 2.2 | 86 | 4815 |
