AHXCMK-WTC Cable Description
AHXCMK-WTC cable conforms to HD 620 S2:2010 Part 10, Section F/M, with a rated voltage of 12/20kV, and is available in single-core or multi-core configurations. The cable features a round aluminum cord conductor, cross-linked polyethylene (XLPE) insulation, and a waterproof polyethylene (PE) outer sheath.

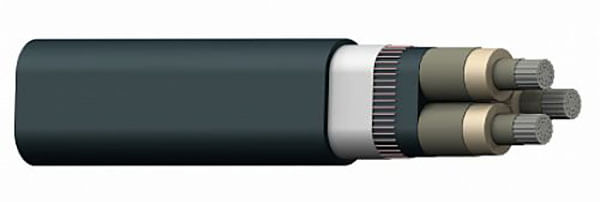

AHXCMK-WTC Cable Construction
- Conductor
- Waterproof, round aluminum rope
- Conductor screen
- Semi-conductive plastic
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Insulation Screen
- Semi-conductive plastic
- Anti-shock protection
- Layer of copper wires and a copper strip
- Outer Sheath
- Waterproof PE (Polyethylene)
AHXCMK-WTC Cable Characteristics
- Voltage Rating
- 12/20 (24) kV
- Temperature Rating
- Operating: -20ºC to +90ºC
- Short Circuit Temperature
- 250°C
- Minimum Bending Radius
- 10 x overall diameter
AHXCMK-WTC Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | MAXIMUM PULLING FORCE kN | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 400/35 | 46 | 20 | 2240 |
| 1 | 500/35 | 48 | 20 | 2650 |
| 1 | 630/35 | 52 | 20 | 3200 |
| 1 | 800/35 | 58 | 20 | 3900 |
| 1 | 1000/35 | 62 | 20 | 4430 |
| 1 | 1200/35 | 66 | 20 | 5170 |
| 3 | 50/16 | 53 | 7.5 | 1780 |
| 3 | 70/16 | 56 | 10.5 | 2050 |
| 3 | 95/16 | 60 | 14.3 | 2400 |
| 3 | 120/25 | 64 | 18 | 2820 |
| 3 | 150/25 | 67 | 20 | 3160 |
| 3 | 185/25 | 70 | 20 | 3620 |
| 3 | 240/25 | 76 | 20 | 4300 |
| 3 | 300/35 | 81 | 20 | 5530 |
