ARE4H5EX and ARE4H5EXY Cable Description
Both ARE4H5EX and ARE4H5EXY cables use a polyethylene (PE/MDPE) sheath. Three single-core insulated sheathed cables are twisted together, with an aluminum foil shielding layer longitudinally wrapped around each core. Semi-conductive waterproof tape is wrapped beneath the shielding layer. They offer excellent mechanical protection, impact resistance, and waterproof performance.
The ARE4H5EX cable utilizes a compact conductor, thereby reducing the overall diameter of the cable. In contrast, the ARE4H5EXY cable features an aluminum center core, providing additional support and rigidity.
ARE4H5EX and ARE4H5EXY Cable Construction
| ARE4H5EX Cable | ARE4H5EXY Cable | |
|---|---|---|
| Conductor | Aluminium Class 2 stranded | |
| Insulation | Cross-linked Polyethylene (XLPE) | |
| Screen | Aluminium Tape | |
| Outer Sheath | Medium Density Polyethylene (MDPE) DPM 2 | Medium Density Polyethylene (MDPE) DPM 5 |
| Layer Up | Triplex formation | Triplex with Aluminium Messenger Wire |
ARE4H5EX and ARE4H5EXY Cable Characteristics
| ARE4H5EX Cable | ARE4H5EXY Cable | |
|---|---|---|
| Voltage | 12/20 kV, 18/30 kV | 12/20 kV |
| Temperature Rating | Minimum installation temperature: -25°C Maximum operating temperature: 90°C Maximum temperature during short circuit: 250°C | Maximum operating temperature (conductor): 90°C Maximum temperature during short circuit (conductor): 250°C Maximum operating temperature (screen): 75°C Maximum temperature during short circuit (screen): 150°C |

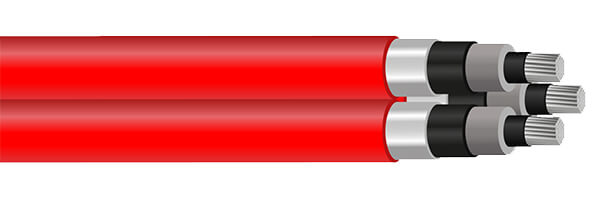

- ARE4H5EX Cable
- ARE4H5EXY Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km | MINIMUM BENDING RADIUS mm |
|---|---|---|---|---|---|---|
| 12/20KV | ||||||
| 3 | 50 | 8.2 | 19.9 | 28 | 1730 | 550 |
| 3 | 70 | 9.7 | 20.8 | 29 | 1940 | 570 |
| 3 | 95 | 11.4 | 22.1 | 30 | 2230 | 590 |
| 3 | 120 | 12.9 | 23.2 | 32 | 2510 | 630 |
| 3 | 150 | 14.0 | 24.3 | 33 | 2800 | 660 |
| 3 | 185 | 15.8 | 26.1 | 35 | 3260 | 700 |
| 3 | 240 | 18.2 | 28.5 | 37 | 3930 | 740 |
| 3 | 300 | 20.8 | 31.7 | 42 | 4730 | 820 |
| 18/30KV | ||||||
| 3 | 50 | 8.2 | 25,5 | 34 | 2480 | 680 |
| 3 | 70 | 9.7 | 25,6 | 34 | 2600 | 680 |
| 3 | 95 | 11.4 | 26,5 | 35 | 2860 | 700 |
| 3 | 120 | 12.9 | 27,4 | 36 | 3120 | 720 |
| 3 | 150 | 14.0 | 28,1 | 37 | 3390 | 740 |
| 3 | 185 | 15.8 | 29,5 | 38 | 3790 | 760 |
| 3 | 240 | 18.2 | 31,5 | 42 | 4440 | 820 |
| 3 | 300 | 20.8 | 34,7 | 45 | 5240 | 890 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA CORES + MESSENGER mm2 | NOMINAL CONDUCTOR DIAMETER mm | MINIMUM INSULATION THICKNESS mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km | MINIMUM BENDING RADIUS mm |
|---|---|---|---|---|---|---|
| 3 | 35 + 50Y | 7.1 | 4.3 | 54 | 1600 | 500 |
| 3 | 50 + 50Y | 8.2 | 4.3 | 56 | 1800 | 530 |
| 3 | 95 + 50Y | 11.4 | 4.3 | 63 | 2400 | 600 |
| 3 | 150 + 50Y | 14.2 | 4.3 | 69 | 3100 | 660 |
