ARG7H1R, ARG7H1OR and RG7H1ONR Description
These cables belong to the IEC 60502-2 medium-voltage cable series conforming to the HD620 standard, and are available with copper conductors (RG7H1ONR) or aluminum conductors (ARG7H1OR and ARG7H1NR). They feature rigid EPR (HEPR – ethylene propylene rubber) insulation, a metallic shield, and an Rz-rated PVC sheath. The ARG7H1R cable uses copper wire shielding, while the ARG7H1OR and RG7H1ONR cables use copper tape shielding.
ARG7H1R, ARG7H1OR and RG7H1ONR Construction
| ARG7H1R Cable | ARG7H1OR Cable | RG7H1ONR Cable | |
|---|---|---|---|
| Conductor | Aluminium Class 2 stranded | Copper Class 2 stranded | |
| Insulation | Hard Ethylene Propylene Rubber (HEPR) | ||
| Screen | Copper Wires | Copper Tape | |
| Braid | - | Galvanised Steel Tape | |
| Outer Sheath | Polyvinyl Chloride (PVC) Rz | ||
ARG7H1R, ARG7H1OR and RG7H1ONR Characteristics
| ARG7H1R Cable | ARG7H1OR Cable | RG7H1ONR Cable | |
|---|---|---|---|
| Voltage | 1.8/3 (3.6)kV, 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV | 3.6/6 (7.2)kV, 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV | 6/10 (12)kV 12/20 (24)kV |
| Temperature Rating | -15°C to 90°C Maximum temperature during short circuit: 250°C Minimum installation temperature: 0°C |
||
| Minimum Bending Radius | 12 x Outer diameter | 16 x overall diameter | |
- ARG7H1R Cable

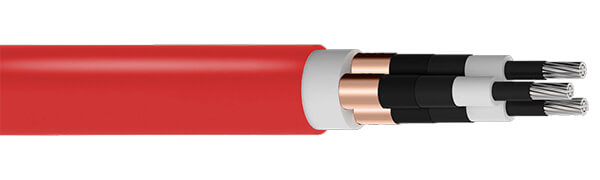

- ARG7H1OR Cable
- RG7H1ONR Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1.8/3 KV | |||||
| 1 | 25 | 6.0 | 2.0 | 16.0 | 315 |
| 1 | 35 | 7.0 | 2.0 | 17.0 | 360 |
| 1 | 50 | 8.1 | 2.0 | 18.5 | 410 |
| 1 | 70 | 9.7 | 2.0 | 20.5 | 495 |
| 1 | 95 | 11.4 | 2.0 | 22.0 | 600 |
| 1 | 120 | 12.9 | 2.0 | 24.5 | 700 |
| 1 | 150 | 14.3 | 2.0 | 26.0 | 790 |
| 1 | 185 | 16.0 | 2.0 | 27.5 | 1225 |
| 1 | 240 | 18.3 | 2.0 | 30.0 | 1475 |
| 1 | 300 | 21.0 | 2.0 | 32.5 | 1707 |
| 1 | 400 | 23.6 | 2.0 | 35.5 | 2260 |
| 1 | 500 | 26.5 | 2.0 | 40.0 | 2590 |
| 1 | 630 | 30.1 | 2.0 | 44.0 | 3150 |
| 6/10 KV | |||||
| 1 | 35 | 7.0 | 3.4 | 23.0 | 535 |
| 1 | 50 | 8.1 | 3.4 | 24.5 | 600 |
| 1 | 70 | 9.7 | 3.4 | 26.5 | 700 |
| 1 | 95 | 11.4 | 3.4 | 28.0 | 825 |
| 1 | 120 | 12.9 | 3.4 | 29.3 | 950 |
| 1 | 150 | 14.3 | 3.4 | 31.0 | 1070 |
| 1 | 185 | 16.0 | 3.4 | 33.3 | 1225 |
| 1 | 240 | 18.3 | 3.4 | 35.6 | 1475 |
| 1 | 300 | 21.0 | 3.4 | 38.5 | 1710 |
| 1 | 400 | 23.6 | 3.4 | 41.0 | 2260 |
| 1 | 500 | 26.5 | 3.4 | 45.0 | 2590 |
| 1 | 630 | 30.1 | 3.4 | 48.0 | 3150 |
| 12/20 KV | |||||
| 1 | 35 | 7.0 | 5.5 | 27.7 | 750 |
| 1 | 50 | 8.1 | 5.5 | 29.0 | 820 |
| 1 | 70 | 9.7 | 5.5 | 30.5 | 955 |
| 1 | 95 | 11.4 | 5.5 | 33.0 | 1080 |
| 1 | 120 | 12.9 | 5.5 | 34.8 | 1255 |
| 1 | 150 | 14.3 | 5.5 | 36.2 | 1335 |
| 1 | 185 | 16.0 | 5.5 | 37.6 | 1555 |
| 1 | 240 | 18.3 | 5.5 | 40.2 | 1840 |
| 1 | 300 | 21.0 | 5.5 | 43.0 | 2115 |
| 1 | 400 | 23.6 | 5.5 | 45.8 | 2660 |
| 1 | 500 | 26.5 | 5.5 | 50.0 | 3185 |
| 1 | 630 | 30.1 | 5.5 | 54.0 | 3805 |
| 18/30 KV | |||||
| 1 | 35 | 7.0 | 8.0 | 33.5 | 1045 |
| 1 | 50 | 8.1 | 8.0 | 34.1 | 1155 |
| 1 | 70 | 9.7 | 8.0 | 36.2 | 1545 |
| 1 | 95 | 11.4 | 8.0 | 38.2 | 1290 |
| 1 | 120 | 12.9 | 8.0 | 40.0 | 1670 |
| 1 | 150 | 14.3 | 8.0 | 41.0 | 1790 |
| 1 | 185 | 16.0 | 8.0 | 43.1 | 2005 |
| 1 | 240 | 18.3 | 8.0 | 45.0 | 2300 |
| 1 | 300 | 21.0 | 8.0 | 47.0 | 2570 |
| 1 | 400 | 23.6 | 8.0 | 51.1 | 3145 |
| 1 | 500 | 26.5 | 8.0 | 53.0 | 3555 |
| 1 | 630 | 30.1 | 8.0 | 60.2 | 4195 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 3.6/6 KV | |||||
| 3 | 25 | 6.1 | 3.0 | 31.80 | 1425 |
| 3 | 35 | 7.1 | 3.0 | 34.06 | 1635 |
| 3 | 50 | 8.2 | 3.0 | 36.75 | 1925 |
| 3 | 70 | 9.9 | 3.0 | 40.50 | 2365 |
| 3 | 95 | 11.4 | 3.0 | 44.45 | 2885 |
| 3 | 120 | 13.1 | 3.0 | 48.00 | 3405 |
| 3 | 150 | 14.4 | 3.0 | 51.00 | 3880 |
| 3 | 185 | 16.2 | 3.0 | 55.15 | 4535 |
| 3 | 240 | 18.4 | 3.0 | 61.00 | 5560 |
| 3 | 300 | 20.65 | 3.0 | 65.95 | 6525 |
| 3 | 400 | 23.6 | 3.0 | 73.25 | 8505 |
| 6/10 KV | |||||
| 3 | 25 | 6.1 | 3.4 | 38.10 | 1985 |
| 3 | 35 | 7.0 | 3.4 | 40.50 | 2250 |
| 3 | 50 | 8.1 | 3.4 | 42.90 | 2545 |
| 3 | 70 | 9.7 | 3.4 | 47.10 | 3105 |
| 3 | 95 | 11.4 | 3.4 | 50.80 | 3670 |
| 3 | 120 | 12.9 | 3.4 | 54.60 | 4275 |
| 3 | 150 | 14.3 | 3.4 | 57.60 | 4785 |
| 3 | 185 | 16.0 | 3.4 | 61.90 | 5537 |
| 3 | 240 | 18.3 | 3.4 | 68.20 | 6765 |
| 3 | 300 | 21.0 | 3.4 | 73.20 | 7825 |
| 3 | 400 | 23.6 | 3.4 | 81.30 | 10100 |
| 12/20 KV | |||||
| 3 | 25 | 6.1 | 5.5 | 48.10 | 2980 |
| 3 | 35 | 7.0 | 5.5 | 50.40 | 3290 |
| 3 | 50 | 8.1 | 5.5 | 52.80 | 3645 |
| 3 | 70 | 9.7 | 5.5 | 56.45 | 4210 |
| 3 | 95 | 11.4 | 5.5 | 60.70 | 4905 |
| 3 | 120 | 12.9 | 5.5 | 64.95 | 5675 |
| 3 | 150 | 14.3 | 5.5 | 68.05 | 6180 |
| 3 | 185 | 16.0 | 5.5 | 72.20 | 7100 |
| 3 | 240 | 18.3 | 5.5 | 78.90 | 8490 |
| 3 | 300 | 21.0 | 5.5 | 83.95 | 9685 |
| 3 | 400 | 23.6 | 5.5 | 91.40 | 11975 |
| 18/30 KV | |||||
| 3 | 185 | 16.0 | 8.0 | 85.50 | 9680 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 6/10kV | ||||
| 3 | 16 | 3.4 | 39.5 | 2805 |
| 3 | 25 | 3.4 | 41.4 | 3055 |
| 3 | 35 | 3.4 | 44.9 | 3805 |
| 3 | 50 | 3.4 | 47.4 | 4415 |
| 3 | 70 | 3.4 | 51.5 | 5415 |
| 3 | 95 | 3.4 | 55.5 | 6545 |
| 3 | 120 | 3.4 | 60.1 | 7855 |
| 3 | 150 | 3.4 | 63.8 | 9000 |
| 3 | 185 | 3.4 | 67.9 | 10510 |
| 3 | 240 | 3.4 | 74.9 | 13005 |
| 3 | 300 | 3.4 | 80.5 | 15460 |
| 12/20kV | ||||
| 3 | 35 | 5.5 | 49.3 | 5300 |
| 3 | 50 | 5.5 | 51.7 | 5970 |
| 3 | 70 | 5.5 | 55.3 | 7060 |
| 3 | 95 | 5.5 | 59.2 | 8340 |
| 3 | 120 | 5.5 | 63.4 | 9710 |
| 3 | 150 | 5.5 | 66.8 | 11010 |
| 3 | 185 | 5.5 | 70.5 | 12670 |
| 3 | 240 | 5.5 | 76.8 | 15450 |
| 3 | 300 | 5.5 | 82.3 | 18275 |
