AXLJ-F & FXLJ-F Cable

AXLJ-F & FXLJ-F Cable Description

AXLJ-F cables use aluminum conductors, while FXLJ-F cables use copper conductors. Their polyethylene (PE) outer sheaths resist water penetration, abrasion, and oil corrosion. Besides direct burial, they can also be suspended between poles and towers.

The AXLJ-F-TT series cables feature waterproof conductors to prevent longitudinal water penetration and radial aluminum/PE composite tape for further enhanced water resistance. The AXLJ-F TT three-core cable has a triangular shape, supported by filler.

AXLJ-F & FXLJ-F Cable Construction

	FXLJ-F 12/20kV Cable	AXLJ-F-TT 18/30kV Single Core Cable	AXLJ-F-TT 12/20kV 3-core Cable	AXLJ-F 12/20kV Cable
Conductor	Class 2 Stranded Copper	Class 2 Stranded Aluminium (Watertight)		Class 2 Stranded Aluminium
Insulation	XLPE (Cross-Linked Polyethylene)
Screen	Copper wires and tape
Waterblocking	Semi-conductive tape diffusion barrier in long waterproof	Al/PET (Aluminium / Polyethylene Laminate) Tape - Radial		Semi-conductive tape diffusion barrier in long waterproof
Outer Sheath	PE (Polyethylene) - UV resistant

AXLJ-F & FXLJ-F Cable Characteristics

	FXLJ-F 12/20kV Cable	AXLJ-F-TT 18/30kV Single Core Cable	AXLJ-F-TT 12/20kV 3-core Cable	AXLJ-F 12/20kV Cable
Voltage Rating	12/20kV	18/30kV	12/20kV
Temperature Rating	Minimum installation: -20°C Maximum Operating: 90ºC	Maximum conductor temperature: +90 °C Max. conductor temperature. short circuit max. 5 s : +250 °C Minimum temperature during operation: -50 °C Minimum temperature during handling: -20 °C Minimum temperature during transport: -40 °C		Maximum Operating: 90ºC Maximum Short-Circuit: 250°C

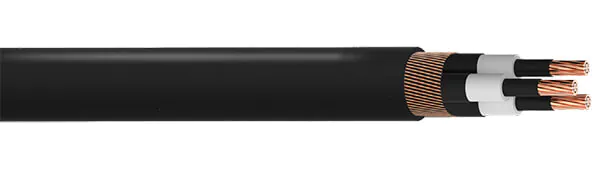

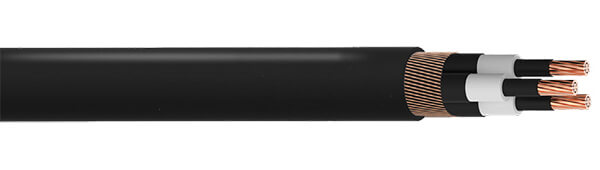

FXLJ-F 12/20kV Cable
AXLJ-F-TT 18/30kV Single Core Cable
AXLJ-F-TT 12/20kV 3-core Cable
AXLJ-F 12/20kV Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	10/10	4.85	16	44	1320

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL SCREEN AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL THICKNESS OF AL FOIL mm	NOMINAL SHEATH THICKNESS mm	NOMINAL DIAMETER OVER INSULATION WITHOUT SCREEN mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	70	16	9,6	8,0	0,2	2,1	25,1	34	964
1	95	16	11,1	8,0	0,2	2,1	26,7	35	1094
1	95	25	11,1	8,0	0,2	2,1	26,7	36	1128
1	120	16	12,6	8,0	0,2	2,1	28,2	37	1231
1	150	25	13,9	8,0	0,2	2,2	29,5	38	1360
1	185	25	15,6	8,0	0,2	2,2	31,6	40	1584
1	185	35	15,6	8,0	0,2	2,2	31,6	41	1597
1	240	25	18,0	8,0	0,2	2,2	33,6	43	1751
1	240	35	18,0	8,0	0,2	2.3	33,6	43	1829
1	300	25	19,8	8,0	0,2	2.3	35,9	45	2039
1	300	35	19,8	8,0	0,2	2.3	35,9	45	2074
1	400	25	22,4	8,0	0,2	2.3	38,0	48	2273
1	400	35	22,4	8,0	0,2	2.5	38,0	48	2319
1	500	25	25,7	8,0	0,2	2.5	41,3	51	2766
1	500	35	25,7	8,0	0,2	2.6	41,3	51	2797
1	630	35	29,3	8,0	0,2	2.7	45,1	55	3360
1	630	50	29,3	8,0	0,2	2.8	45,1	56	3550
1	800	35	33,2	8,0	0,2	2.9	49,1	59	4111
1	800	50	33,2	8,0	0,2	2.9	49,1	60	4219
1	1000	35	39,2	8,0	0,2	3.0	55,0	66	4866

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL SCREEN AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL THICKNESS OF AL FOIL mm	NOMINAL SHEATH THICKNESS mm	NOMINAL DIAMETER OVER INSULATION WITHOUT SCREEN mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	25	16	5.9	5.5	0.2	2.6	17.1	48	1407
3	50	16	8	5.5	0.2	2.8	19.2	53	1783
3	70	16	9.6	5.5	0.2	-	20.9	56	2072
3	95	16	11.1	5.5	0.2	3	22.3	60	2429
3	95	25	11.1	5.5	0.2	3	22.3	60	2481
3	120	16	12.6	5.5	0.2	3.1	24	63	2788
3	150	25	13.9	5.5	0.2	3.2	25.1	66	3176
3	185	25	15.6	5.5	0.2	-	27.2	71	3684
3	240	25	18	5.5	0.2	3.5	29.2	76	4367
3	240	35	18	5.5	0.2	3.5	29.2	76	4447
3	300	35	19.8	5.5	0.2	3.6	31	80	5149

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	NOMINAL WEIGHT kg/km
1	50/16	29	660
1	95/25	32	940
1	150/25	35	1140
1	240/25	40	1610
1	400/35	44	2080
1	630/35	52	3050
3	50/16	55	1840
3	95/25	62	2450
3	150/25	69	3300
3	240/35	79	4360
