AXQJ-F Cable Description
AXQJ-F cables feature aluminum conductors and cross-linked polyethylene (XLPE) insulation for high dielectric strength. They include a copper wire/foil shield to limit electromagnetic interference. A halogen-free flame-retardant (HFFR) outer sheath minimizes fire spread and toxic fumes. Water-resistant yarn or expansion tape provides longitudinal and radial waterproofing.
AXQJ-F cables are also available with alternative sheath materials—AXLJ-F with a PE (polyethylene) sheath, and FXLJ-F with an aluminum or copper sheath, suitable for cable conduit installations in wet environments.

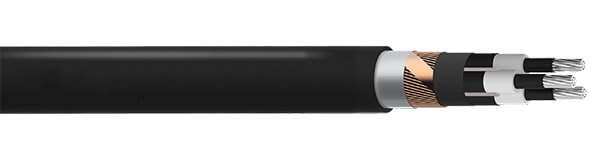

AXQJ-F Cable Construction
- Conductor
- Threaded, round, waterproof aluminum
- Conductor Screen
- Semiconductive solid-capped XLPE (Cross-Linked Polyethylene)
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Insulation Screen
- Semi-Conductive Solid-Capped XLPE (Cross-Linked Polyethylene)
- Metallic Screen
- Semi-conducting bands and copper wires with counter-spiral
- Outer Sheath
- Halogen-free UV-resistant polyolefin
AXQJ-F Cable Characteristics
- Voltage Rating
- 12/20 (24)kV
- Temperature Rating
- Minimum installation: -15°C
- Maximum Operating: +90ºC
- Maximum Short-Circuit: 250°C
AXQJ-F Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 50/16 | 29 | 820 |
| 1 | 95/25 | 32 | 1150 |
| 1 | 150/25 | 35 | 1390 |
| 1 | 240/35 | 40 | 1910 |
| 1 | 400/35 | 46 | 2500 |
| 1 | 630/35 | 52 | 3450 |
| 3 | 50/16 | 55 | 2470 |
| 3 | 95/25 | 65 | 3540 |
| 3 | 150/25 | 69 | 4290 |
| 3 | 240/35 | 79 | 5870 |
