EXCWB Cable Description
These cables feature copper or aluminum conductors, cross-linked polyethylene (XLPE) insulation, and a medium-density polyethylene (MDPE) outer sheath. Supply voltages are 8.7/15kV, 12/20kV, and 18/30kV.
These cables typically come with UV-resistant copper wire/copper tape shielding and can be optionally equipped with longitudinal/radial waterproofing layers, making them suitable for outdoor use, especially for installation in buried cable conduits.

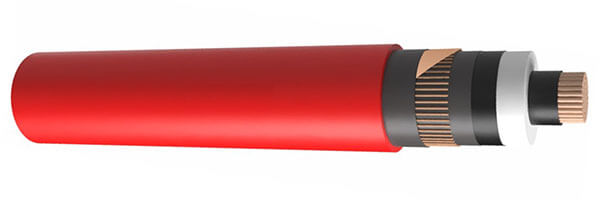

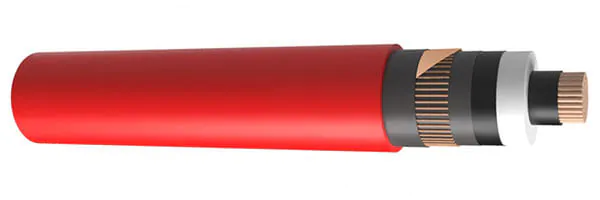

EXCWB Cable Construction
| EXCWB Cable | EXeCWB Cable | EXeCeWB Cable | |
|---|---|---|---|
| Conductor | Class 2 Stranded Copper | ||
| Conductor Screen | Semi-conductive material (Bonded type) | ||
| Insulation | XLPE (Cross-Linked Polyethylene) | ||
| Insulation Screen | Semi-conductive material (Strippable type) | ||
| Water-Blocking | - | Semi Conductive Water Blocking Tape | |
| Screen | Copper wires with Open Helix Copper Tape Screen | ||
| Water-Blocking 2 | - | Non-Conductive Water Blocking Tape | |
| Tape | - | Aluminium Tape | |
| Outer Sheath | MDPE (Medium Density Polyethylene) | ||
EXCWB Cable Naming Codes
- A in second position
- Aluminium Conductor
- X
- XLPE insulation
- C
- Concentric copper conductor
- e before designation of watertight element (eC)
- Longitudinal water tightness
- e after designation of watertight element (Ce)
- Transverse water tightness
- W
- PE Outer Sheath
- B
- Conforming to this HD
- EXCWB Cable - 8.7/15 (17.5)KV
- EXCWB Cable
- EAXCWB Cable - 8.7/15 (17.5)KV
- EAXCWB Cable
- EXeCWB Cable
- EAXeCWB Cable - 8.7/15 (17.5)KV
- EAXeCWB Cable
- EXeCeWB Cable - 8.7/15 (17.5)KV
- EXeCeWB Cable
- EAXeCeWB Cable - 8.7/15 (17.5)KV
- EAXeCeWB Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 50 | 16 | 4.5 | 1.7 | 23.8 | 904 |
| 1 | 95 | 16 | 4.5 | 1.8 | 27.1 | 1389 |
| 1 | 150 | 25 | 4.5 | 2 | 30.7 | 2027 |
| 1 | 240 | 25 | 4.5 | 2.1 | 34.6 | 2943 |
| 1 | 400 | 35 | 4.5 | 2.3 | 40.2 | 4445 |
| 1 | 630 | 35 | 4.5 | 2.5 | 48.7 | 6869 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER | NUMBER WIRES CONDDUCTOR | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS | MINIMUM INSULATION THICKNESS | NOMINAL DIAMETER OVER INSULATION | ||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | mm | mm | INNER mm | OUTER mm | mm | mm | mm | |
| 12/20 (24)KV | |||||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 20.3 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 26.7 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 30.8 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| 18/30 (36)KV | |||||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 25.1 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 8 | 7.1 | 31.5 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 35.6 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN mm | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.4 | 27.1 | 780 | 1.5 | 0.41 |
| 1 | 95 | 11.3 | 4.5 | 21.5 | 35 | 25.4 | 30.2 | 1160 | 2.85 | 0.45 |
| 1 | 150 | 14.2 | 4.5 | 24.4 | 50 | 28.3 | 33.1 | 1520 | 4.5 | 0.5 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 50 | 32 | 36.8 | 1870 | 7.2 | 0.55 |
| 1 | 400 | 22.9 | 4.5 | 33.1 | 50 | 37 | 41.8 | 2390 | 12 | 0.63 |
| 1 | 630 | 29.3 | 4.5 | 40.3 | 50 | 44.4 | 49.3 | 3310 | 18.9 | 0.74 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER | NUMBER WIRES CONDDUCTOR | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS | MINIMUM INSULATION THICKNESS | NOMINAL DIAMETER OVER INSULATION | ||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | mm | mm | INNER mm | OUTER mm | mm | mm | mm | |
| 12/20 (24)KV | |||||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 20.4 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 5.5 | 4.85 | 26.6 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 30.9 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| 18/30 (36)KV | |||||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 25.2 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 8 | 7.1 | 31.4 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 35.7 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SCREEN SECTIONAL AREA mm² | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 8.7/15 (17.5)kV | ||||||
| 1 | 25 | 4.5 | 16 | 2.6 | 30.5 | 960 |
| 1 | 50 | 4.5 | 16 | 2.6 | 33 | 1220 |
| 1 | 150 | 4.5 | 25 | 2.9 | 40 | 2460 |
| 1 | 240 | 4.5 | 25 | 3.1 | 44 | 3470 |
| 1 | 630 | 4.5 | 35 | 3.5 | 56 | 7600 |
| 1 | 1000 | 4.5 | 35 | 3.7 | 68 | 11620 |
| 12/20 (24)kV | ||||||
| 1 | 50 | 5.5 | 16 | 2.6 | 35 | 1310 |
| 1 | 95 | 5.5 | 25 | 2.7 | 39 | 1980 |
| 1 | 150 | 5.5 | 25 | 3 | 42 | 2600 |
| 1 | 240 | 5.5 | 25 | 3.1 | 46 | 3600 |
| 1 | 400 | 5.5 | 35 | 3.3 | 52 | 5250 |
| 18/30 (36)kV | ||||||
| 1 | 50 | 8 | 16 | 2.8 | 41 | 1600 |
| 1 | 95 | 8 | 25 | 2.9 | 44 | 2310 |
| 1 | 150 | 8 | 25 | 3.2 | 47 | 2960 |
| 1 | 240 | 8 | 25 | 3.3 | 51 | 4000 |
| 1 | 400 | 8 | 35 | 3.5 | 57 | 5700 |
| 1 | 630 | 8 | 35 | 3.7 | 63 | 8270 |
| 1 | 1000 | 8 | 35 | 4 | 76 | 12450 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN mm | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.6 | 28.1 | 720 | 1.5 | 0.42 |
| 1 | 95 | 11.3 | 4.5 | 21.5 | 35 | 25.6 | 31.2 | 1100 | 2.85 | 0.47 |
| 1 | 150 | 14.2 | 4.5 | 24.4 | 50 | 28.5 | 34.1 | 1440 | 4.5 | 0.51 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 50 | 32.2 | 37.8 | 1780 | 7.2 | 0.57 |
| 1 | 400 | 22.9 | 4.5 | 33.1 | 50 | 37.2 | 42.8 | 2300 | 12 | 0.64 |
| 1 | 630 | 29.3 | 4.5 | 40.3 | 50 | 44.6 | 50.3 | 3190 | 18.9 | 0.75 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER | NUMBER WIRES CONDDUCTOR | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS | MINIMUM INSULATION THICKNESS | NOMINAL DIAMETER OVER INSULATION | ||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | mm | mm | INNER mm | OUTER mm | mm | mm | mm | |
| 12/20 (24)KV | |||||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 20.4 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 5.5 | 4.85 | 26.6 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 30.9 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| 18/30 (36)KV | |||||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 25.2 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 8 | 7.1 | 31.4 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 35.7 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 50 | 16 | 4.5 | 1.7 | 26.6 | 1008 |
| 1 | 95 | 16 | 4.5 | 1.8 | 29.9 | 1505 |
| 1 | 150 | 25 | 4.5 | 2 | 33.5 | 2155 |
| 1 | 240 | 25 | 4.5 | 2.1 | 37.4 | 3086 |
| 1 | 400 | 35 | 4.5 | 2.3 | 43 | 4609 |
| 1 | 630 | 35 | 4.5 | 2.5 | 51.5 | 7060 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER | NUMBER WIRES CONDDUCTOR | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS | MINIMUM INSULATION THICKNESS | NOMINAL DIAMETER OVER INSULATION | ||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | mm | mm | INNER mm | OUTER mm | mm | mm | mm | |
| 12/20 (24)KV | |||||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 20.3 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 26.7 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 30.8 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| 18/30 (36)KV | |||||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 25.1 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 8 | 7.1 | 31.5 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 35.6 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN mm | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.6 | 28.1 | 720 | 1.5 | 0.42 |
| 1 | 95 | 11.3 | 4.5 | 21.5 | 35 | 25.6 | 31.2 | 1100 | 2.85 | 0.47 |
| 1 | 150 | 14.2 | 4.5 | 24.4 | 50 | 28.5 | 34.1 | 1440 | 4.5 | 0.51 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 50 | 32.2 | 37.8 | 1780 | 7.2 | 0.57 |
| 1 | 400 | 22.9 | 4.5 | 33.1 | 50 | 37.2 | 42.8 | 2300 | 12 | 0.64 |
| 1 | 630 | 29.3 | 4.5 | 40.3 | 50 | 44.6 | 50.3 | 3190 | 18.9 | 0.75 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER | NUMBER WIRES CONDDUCTOR | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS | MINIMUM INSULATION THICKNESS | NOMINAL DIAMETER OVER INSULATION | ||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | mm | mm | INNER mm | OUTER mm | mm | mm | mm | |
| 12/20 (24)KV | |||||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 20.4 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 5.5 | 4.85 | 26.6 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 30.9 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| 18/30 (36)KV | |||||||||
| 1 | 50 | 16 | 8.2 | 7 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 25.2 |
| 1 | 95 | 16 | 11.4 | 19 x 2.55 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 150 | 25 | 14.4 | 19 x 3.16 | 0.5 | 0.4 | 8 | 7.1 | 31.4 |
| 1 | 240 | 25 | 18.2 | 37 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 35.7 |
| 1 | 400 | 35 | 23 | 61 x 2.90 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.65 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
