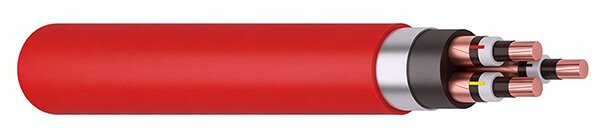

N2XSEBY Cable

N2XSEBY Cable Description

The N2XSEBY cable features copper conductors, XLPE insulation, individual copper tape shielding, double steel tape armouring, and a PVC outer sheath. It is suitable for indoor and outdoor installation—including in cable ducts, trenches, and tunnels—as well as for direct burial. It can withstand moderate mechanical stress but is not designed to endure heavy pulling forces or tensile loads during installation.

N2XSEBY Cable Construction

Conductor
Class 2 Stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper tape
Armor
Galvanized double steel tape
Outer Sheath
PVC (Polyvinyl Chloride)

N2XSEBY Cable Characteristics

Voltage Rating Uo/U (Um)
3.6/6 (7.2) kV
6/10 (12) kV
8.7/15 (17.5) kV
12/20 (24) kV
18/30 (36) kV

N2XSEBY Cable Specification

Nominal cross-sectional area mm²	Overall cable diameter (approx) mm	Cable Weight (approx) kg/km	Conductor DC Resistance at 20℃ ohm/km	Current carrying capacity
Nominal cross-sectional area mm²	Overall cable diameter (approx) mm	Cable Weight (approx) kg/km	Conductor DC Resistance at 20℃ ohm/km	In Air	In Ground
3.6/6 KV
3x25	41	2816	0.727	120	125
3x35	43	3254	0.524	140	155
3x50	47	3842	0.387	165	180
3x70	50	4706	0.268	210	220
3x95	53	5646	0.193	255	265
3x120	57	6580	0.153	290	300
3x150	60	7659	0.124	330	340
3x185	64	8946	0.0991	375	380
3x240	69	10972	0.0754	435	435
3x300	75	13194	0.0601	495	485
3x400	83	17489	0.047	565	520
6/10 KV
3x25	46	3010	0.727	120	125
3x35	48	3498	0.524	140	155
3x50	51	4135	0.387	165	180
3x70	55	4958	0.268	210	220
3x95	58	5976	0.193	255	265
3x120	61	6969	0.153	290	300
3x150	64	8161	0.124	330	340
3x185	68	8417	0.0991	375	380
3x240	73	11340	0.0754	435	435
3x300	78	14247	0.0601	495	485
3x400	86	17510	0.047	565	520
8.7/15 KV
3x25	51	3500	0.727	120	125
3x35	53	3980	0.524	140	155
3x50	56	4679	0.387	165	180
3x70	58	5410	0.268	210	220
3x95	63	6567	0.193	255	265
3x120	66	7541	0.153	290	300
3x150	70	8674	0.124	330	340
3x185	73	9991	0.0991	375	380
3x240	79	11887	0.0754	435	435
3x300	83	14974	0.0601	495	485
3x400	92	18230	0.047	565	525
12/20 KV
3x35	58	4840	0.524	140	155
3x50	61	5463	0.387	165	180
3x70	65	6446	0.268	210	220
3x95	68	7457	0.193	255	265
3x120	71	8459	0.153	290	300
3x150	75	10555	0.124	330	340
3x185	78	11925	0.0991	375	380
3x240	83	13959	0.0754	435	435
3x300	88	16314	0.0601	495	485
3x400	95	19032	0.047	565	520
18/30 KV
3x50	75	7200	0.387	165	180
3x70	78	8230	0.268	210	220
3x95	81	9410	0.193	255	265
3x120	85	11120	0.153	290	300
3x150	88	12400	0.124	330	340
3x185	91	13910	0.0991	375	380
3x240	97	16080	0.0754	435	435
3x300	101	18500	0.0601	495	485
3x400	109	21920	0.047	565	520
