N2XSEY Cable Description
N2XSEY cables feature copper conductors, cross-linked polyethylene (XLPE) insulation, copper wire shielding, and a polyvinyl chloride (PVC) outer sheath. This series of medium-voltage cables is flame-retardant and self-extinguishing, conforming to IEC 60332-1 standards. Voltage specifications include: 6/10kV, 8.7/15kV, 12/20kV, and 18/30kV.
N2XSEY cables are a three-core version of the N2XSY cable, where the “E” in the name indicates that each of the three cores is individually shielded. They can be laid directly underground, underwater, outdoors, indoors, and in cable conduits, and are widely used in building construction, renewable energy, and power transmission industries.

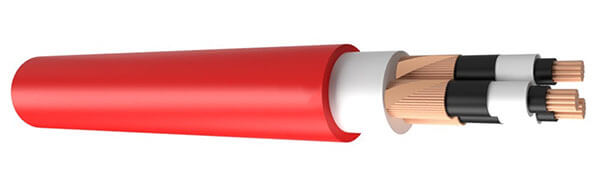

N2XSEY Cable Construction
- Conductor
- Class 2 Stranded copper conductor
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Screen
- Copper wires and equalising tape
- Outer Sheath
- PVC (Polyvinyl Chloride)
N2XSEY Cable Characteristics
- Voltage Rating Uo/U (Um)
- 6/10 (12)kV
- 8.7/15 (17.5)kV
- 12/20 (24)kV
- 18/30 (36)kV
- Temperature Range
- Maximum conductor operating temperature: 90°C
- Initial temperature at S.C.C for metallic screen: 80°C
- Maximum conductor temperature during S.C: 250°C
- Minimum Bending Radius
- 10 x overall diameter
N2XSEY Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 6/10 (12)kV | ||||||
| 3 | 50 | 16 | 3.4 | 2.4 | 43.8 | 2752 |
| 3 | 70 | 16 | 3.4 | 2.5 | 47.9 | 3513 |
| 3 | 95 | 16 | 3.4 | 2.7 | 51.1 | 4399 |
| 3 | 120 | 16 | 3.4 | 2.8 | 54.3 | 5241 |
| 3 | 150 | 25 | 3.4 | 2.9 | 58 | 6300 |
| 3 | 185 | 25 | 3.4 | 3.0 | 61.4 | 7440 |
| 3 | 240 | 25 | 3.4 | 3.2 | 66.8 | 9359 |
| 3 | 300 | 25 | 3.4 | 3.3 | 72.2 | 11267 |
| 3 | 400 | 35 | 3.4 | 3.6 | 78.4 | 14127 |
| 3 | 500 | 35 | 3.4 | 3.8 | 86.2 | 17513 |
| 8.7/15 (17.5)kV | ||||||
| 3 | 50 | 16 | 4.5 | 2.6 | 48.5 | 3092 |
| 3 | 70 | 16 | 4.5 | 2.7 | 52.6 | 3882 |
| 3 | 95 | 16 | 4.5 | 2.8 | 55.6 | 4764 |
| 3 | 120 | 16 | 4.5 | 2.9 | 58.9 | 5637 |
| 3 | 150 | 25 | 4.5 | 3.1 | 62.5 | 6712 |
| 3 | 185 | 25 | 4.5 | 3.2 | 65.9 | 7877 |
| 3 | 240 | 25 | 4.5 | 3.3 | 71.3 | 9832 |
| 3 | 300 | 25 | 4.5 | 3.5 | 76.9 | 11814 |
| 3 | 400 | 35 | 4.5 | 3.7 | 82.9 | 14682 |
| 3 | 500 | 35 | 4.5 | 3.9 | 90.7 | 18123 |
| 12/20 (24)kV | ||||||
| 3 | 50 | 16 | 5.5 | 2.8 | 53.3 | 3474 |
| 3 | 70 | 16 | 5.5 | 2.9 | 57.3 | 4288 |
| 3 | 95 | 16 | 5.5 | 3.0 | 59.9 | 5173 |
| 3 | 120 | 16 | 5.5 | 3.1 | 62.9 | 6028 |
| 3 | 150 | 25 | 5.5 | 3.2 | 67 | 7155 |
| 3 | 185 | 25 | 5.5 | 3.3 | 70.5 | 8352 |
| 3 | 240 | 25 | 5.5 | 3.5 | 76.1 | 10383 |
| 3 | 300 | 25 | 5.5 | 3.6 | 81.4 | 12356 |
| 3 | 400 | 35 | 5.5 | 3.9 | 87.7 | 15322 |
| 3 | 500 | 35 | 5.5 | 4.1 | 95.2 | 18760 |
| 18/30 (36)kV | ||||||
| 3 | 50 | 16 | 8 | 3.1 | 64.5 | 4471 |
| 3 | 70 | 16 | 8 | 3.2 | 68.1 | 5332 |
| 3 | 95 | 16 | 8 | 3.4 | 71.3 | 6324 |
| 3 | 120 | 16 | 8 | 3.5 | 74.5 | 7265 |
| 3 | 150 | 25 | 8 | 3.6 | 78.6 | 8463 |
| 3 | 185 | 25 | 8 | 3.7 | 82.1 | 9720 |
| 3 | 240 | 25 | 8 | 3.9 | 87.7 | 11853 |
| 3 | 300 | 25 | 8 | 4.0 | 93 | 13919 |
| 3 | 400 | 35 | 8 | 4.3 | 99.1 | 16960 |
| 3 | 500 | 35 | 8 | 4.5 | 106.8 | 20577 |
