N2XS(F)2Y Cable Description
N2XS(F)2Y cable is a waterproof version of the N2XS2Y, featuring longitudinal water-resistant expansion tape to prevent water infiltration along the cable’s length. It is suitable for a variety of applications, including direct burial, underwater installation, outdoor, indoor, and conduit installation.

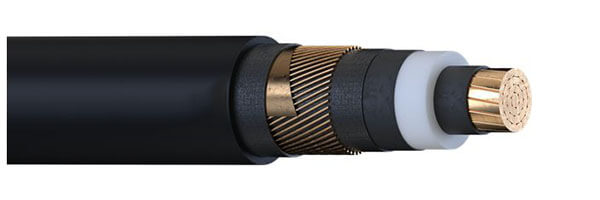

N2XS(F)2Y Cable Construction
- Conductor
- Class 2 Stranded Copper
- Conductor Screen
- Semi-conductive material
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Insulation Screen
- Semi-conductive material
- Screen
- Copper wires and tape
- Longitudinal Waterblocking
- Swellable Tapes
- Outer Sheath
- PE (Polyethylene)
N2XS(F)2Y Cable Characteristics
- Temperature Rating
- -20°C to +60°C
- Permissible Conductor Operating Temperature: +90°C
- Permissible Short Circuit Temperature up to 5 sec: 250°C
- Minimum Bending Radius
- 15 x overall diameter
- N2XS(F)2Y XLPE PE - 6/10 (12)kV Cable
- N2XS(F)2Y XLPE MDPE 8.7/15kV Cable
- N2XS(F)2Y XLPE HDPE 8.7/15kV Cable
- N2XS(F)2Y XLPE PE - 12/20 (24)kV Cable
- N2XS(F)2Y XLPE PE - 18/30 (36)kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 16.3 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 3.4 | 2.96 | 22.7 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 24.1 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 26.8 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 28.9 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 3.4 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 3.4 | 2.96 | 38.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 50 | 16 | 4.5 | 1.7 | 25.8 | 939 |
| 1 | 70 | 16 | 4.5 | 1.8 | 27.8 | 1171 |
| 1 | 95 | 16 | 4.5 | 1.8 | 29.1 | 1429 |
| 1 | 120 | 16 | 4.5 | 1.9 | 30.7 | 1689 |
| 1 | 150 | 25 | 4.5 | 2 | 32.7 | 2072 |
| 1 | 185 | 25 | 4.5 | 2 | 34.2 | 2415 |
| 1 | 240 | 25 | 4.5 | 2.1 | 36.6 | 2993 |
| 1 | 300 | 25 | 4.5 | 2.2 | 39.2 | 3575 |
| 1 | 400 | 35 | 4.5 | 2.3 | 42.2 | 4502 |
| 1 | 500 | 35 | 4.5 | 2.4 | 45.8 | 5505 |
| 1 | 630 | 35 | 4.5 | 2.5 | 50.7 | 6936 |
| 1 | 800 | 35 | 4.5 | 2.6 | 55 | 8728 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 35 | 7.0 | 4.5 | 17.2 | 16 | 21.3 | 26.9 | 860 | 1.75 | 0.40 |
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.6 | 28.1 | 1000 | 2.5 | 0.42 |
| 1 | 70 | 9.6 | 4.5 | 19.8 | 25 | 23.9 | 29.5 | 1300 | 3.5 | 0.44 |
| 1 | 95 | 11.5 | 4.5 | 21.7 | 35 | 25.8 | 31.4 | 1670 | 4.75 | 0.47 |
| 1 | 120 | 12.9 | 4.5 | 23.1 | 50 | 27.2 | 32.8 | 2070 | 6.0 | 0.49 |
| 1 | 150 | 14.5 | 4.5 | 24.7 | 50 | 28.8 | 34.4 | 2350 | 7.5 | 0.52 |
| 1 | 185 | 16.0 | 4.5 | 26.2 | 50 | 30.3 | 35.9 | 2710 | 9.25 | 0.54 |
| 1 | 240 | 18.5 | 4.5 | 28.7 | 50 | 32.8 | 38.4 | 3260 | 12.0 | 0.58 |
| 1 | 300 | 20.5 | 4.5 | 30.7 | 50 | 34.8 | 40.4 | 3850 | 15.0 | 0.61 |
| 1 | 400 | 23.5 | 4.5 | 33.7 | 50 | 37.8 | 43.4 | 4720 | 20.0 | 0.66 |
| 1 | 500 | 26.5 | 4.5 | 37.2 | 50 | 41.5 | 47.1 | 5810 | 25.0 | 0.71 |
| 1 | 630 | 30.3 | 4.5 | 41.3 | 50 | 45.6 | 51.3 | 7160 | 31.5 | 0.77 |
| 1 | 800 | 34.6 | 4.5 | 46.0 | 50 | 50.3 | 56.4 | 8860 | 40.0 | 0.85 |
| 1 | 1000 | 38.2 | 4.5 | 49.6 | 50 | 53.9 | 60.2 | 10760 | 50.0 | 0.90 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 20.3 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 21.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 24.9 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 26.7 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 28.1 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 30.8 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 32.9 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 5.5 | 4.85 | 38.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 25.1 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 26.7 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 29.7 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 8 | 7.1 | 31.5 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 32.9 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 35.6 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 37.7 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 8 | 7.1 | 43.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
