N2XS(F)H Cable

N2XS(F)H Cable Description

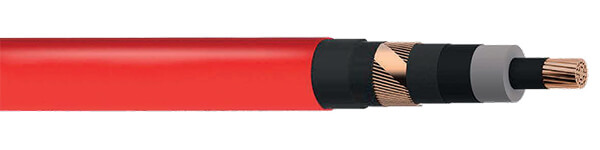

N2XS(F)H cable features stranded copper conductors, cross-linked polyethylene (XLPE) insulation, and a low-smoke halogen-free (LSZH) outer sheath, ensuring fire safety. The “F” in its name indicates that it is longitudinally waterproof, meaning it prevents water from seeping in along its length.

N2XS(F)H Cable Construction

Conductor
Class 2 Stranded Copper
Insulation
XLPE (Cross-Linked polyethylene)
Screen
Copper wires and copper tape
Longitudinal Waterblocking
Swellable Tapes
Outer Sheath
LSZH (Low Smoke Zero Halogen)

N2XS(F)H Cable Characteristics

Temperature Rating
-20°C to +60°C
Permissible Conductor Operating Temperature: +90°C
Permissible Short Circuit Temperature up to 5 sec: 250°C
Minimum Bending Radius
15 x overall diameter

N2XS(F)H 6/10kV Cable
N2XS(F)H 8.7/15kV Cable
N2XS(F)H 12/20kV Cable
N2XS(F)H 18/30kV Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.1	10 x 2.62	0.5	0.4	3.4	2.96	16.3
1	70	16	9.7	14 x 2.62	0.5	0.4	3.4	2.96	17.9
1	95	16	11.4	19 x 2.62	0.5	0.4	3.4	2.96	19.6
1	120	16	12.7	19 x 2.97	0.5	0.4	3.4	2.96	20.9
1	150	25	14.5	19 x 3.20	0.5	0.4	3.4	2.96	22.7
1	185	25	15.9	27 x 2.62	0.5	0.4	3.4	2.96	24.1
1	240	25	18.6	48 x 2.62	0.5	0.4	3.4	2.96	26.8
1	300	25	20.7	61 x 2.62	0.5	0.4	3.4	2.96	28.9
1	400	35	23.5	61 x 2.97	0.5	0.4	3.4	2.96	31.7
1	500	35	26.5	61 x 3.29	0.5	0.4	3.4	2.96	34.7
1	630	35	30.2	61 x 3.80	0.5	0.4	3.4	2.96	38.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	35	7.0	4.5	17.2	16	21.3	26.9	860	1.75	0.40
1	50	8.25	4.5	18.5	16	22.6	28.1	1000	2.5	0.42
1	70	9.6	4.5	19.8	25	23.9	29.5	1300	3.5	0.44
1	95	11.5	4.5	21.7	35	25.8	31.4	1670	4.75	0.47
1	120	12.9	4.5	23.1	50	27.2	32.8	2070	6	0.49
1	150	14.5	4.5	24.7	50	28.8	34.4	2350	7.5	0.52
1	185	16.0	4.5	26.2	50	30.3	35.9	2710	9.25	0.54
1	240	18.5	4.5	28.7	50	32.8	38.4	3260	12	0.58
1	300	20.5	4.5	30.7	50	34.8	40.4	3850	15	0.61
1	400	23.5	4.5	33.7	50	37.8	43.4	4720	20	0.65
1	500	26.5	4.5	37.2	50	41.5	47.1	5810	25	0.71
1	630	30.3	4.5	41.3	50	45.6	51.3	7160	31.5	0.77
1	800	34.6	4.5	46.0	50	50.3	56.4	8860	40	0.85
1	1000	38.2	4.5	49.6	50	53.9	60.2	10760	50	0.90

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	35	16	6.9	7 x 2.62	0.5	0.4	5.5	4.85	19.1
1	50	16	8.1	10 x 2.62	0.5	0.4	5.5	4.85	20.3
1	70	16	9.7	14 x 2.62	0.5	0.4	5.5	4.85	21.9
1	95	16	11.4	19 x 2.62	0.5	0.4	5.5	4.85	23.6
1	120	16	12.7	19 x 2.97	0.5	0.4	5.5	4.85	24.9
1	150	25	14.5	19 x 3.20	0.5	0.4	5.5	4.85	26.7
1	185	25	15.9	27 x 2.62	0.5	0.4	5.5	4.85	28.1
1	240	25	18.6	48 x 2.62	0.5	0.4	5.5	4.85	30.8
1	300	25	20.7	61 x 2.62	0.5	0.4	5.5	4.85	32.9
1	400	35	23.5	61 x 2.97	0.5	0.4	5.5	4.85	35.7
1	500	35	26.5	61 x 3.29	0.5	0.4	5.5	4.85	38.7
1	630	35	30.2	61 x 3.80	0.5	0.4	5.5	4.85	42.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.1	10 x 2.62	0.5	0.4	8	7.1	25.1
1	70	16	9.7	14 x 2.62	0.5	0.4	8	7.1	26.7
1	95	16	11.4	19 x 2.62	0.5	0.4	8	7.1	28.4
1	120	16	12.7	19 x 2.97	0.5	0.4	8	7.1	29.7
1	150	25	14.5	19 x 3.20	0.5	0.4	8	7.1	31.5
1	185	25	15.9	27 x 2.62	0.5	0.4	8	7.1	32.9
1	240	25	18.6	48 x 2.62	0.5	0.4	8	7.1	35.6
1	300	25	20.7	61 x 2.62	0.5	0.4	8	7.1	37.7
1	400	35	23.5	61 x 2.97	0.5	0.4	8	7.1	40.5
1	500	35	26.5	61 x 3.29	0.5	0.4	8	7.1	43.5
1	630	35	30.2	61 x 3.80	0.5	0.4	8	7.1	47.7
