N2XS(FL)2Y Cable Description
N2XS(FL)2Y cable is a waterproof version of the N2XS2Y cable, employing expandable tape and a metal mesh for longitudinal and radial waterproofing. The PE sheath enhances resistance to mechanical stress.
This cable is suitable for critical applications such as power distribution networks, renewable energy sources, and data centres, where high levels of mechanical stress and water penetration are critical.

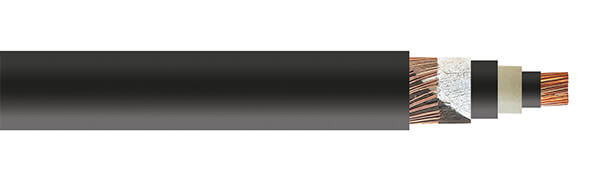

N2XS(FL)2Y Cable Construction
- Conductor
- Class 2 Stranded Copper
- Conductor Screen
- Semi-conductive material
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Insulation Screen
- Semi-conductive material (bonded)
- Screen
- Copper wires and copper tape
- Longitudinal Waterblocking
- Swellable Tapes
- Radial Waterblocking
- Al/PET (Aluminium /Polyester) Tape bonded to sheath
- Outer Sheath
- PE (Polyethylene)
N2XS(FL)2Y Cable Characteristics
- Temperature Rating
- -20°C to +60°C
- Permissible Conductor Operating Temperature: +90°C
- Permissible Short Circuit Temperature up to 5 sec: 250°C
- Minimum Bending Radius
- 15 x overall diameter
- N2XS(FL)2Y XLPE PE - 6/10 (12)kV Cable
- N2XS(FL)2Y XLPE MDPE 8.7/15kV Cable
- N2XS(FL)2Y XLPE HDPE 8.7/15kV Cable
- N2XS(FL)2Y XLPE PE - 12/20 (24)kV Cable
- N2XS(FL)2Y XLPE PE - 18/30 (36)kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 16.3 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 3.4 | 2.96 | 22.7 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 24.1 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 26.8 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 28.9 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 3.4 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 3.4 | 2.96 | 38.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 50 | 16 | 4.5 | 1.7 | 26.6 | 1008 |
| 1 | 70 | 16 | 4.5 | 1.8 | 28.6 | 1243 |
| 1 | 95 | 16 | 4.5 | 1.8 | 29.9 | 1505 |
| 1 | 120 | 16 | 4.5 | 1.9 | 31.5 | 1768 |
| 1 | 150 | 25 | 4.5 | 2 | 33.5 | 2155 |
| 1 | 185 | 25 | 4.5 | 2 | 35 | 2501 |
| 1 | 240 | 25 | 4.5 | 2.1 | 37.4 | 3086 |
| 1 | 300 | 25 | 4.5 | 2.2 | 40 | 3675 |
| 1 | 400 | 35 | 4.5 | 2.3 | 43 | 4609 |
| 1 | 500 | 35 | 4.5 | 2.4 | 46.6 | 5619 |
| 1 | 630 | 35 | 4.5 | 2.5 | 51.5 | 7060 |
| 1 | 800 | 35 | 4.5 | 2.6 | 55.8 | 8863 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 35 | 7.0 | 4.5 | 17.2 | 16 | 21.3 | 27.3 | 920 | 1.75 | 0.57 |
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.5 | 28.6 | 1060 | 2.5 | 0.60 |
| 1 | 70 | 9.6 | 4.5 | 19.8 | 25 | 23.9 | 29.9 | 1370 | 3.5 | 0.63 |
| 1 | 95 | 11.5 | 4.5 | 21.7 | 35 | 25.8 | 31.8 | 1740 | 4.75 | 0.68 |
| 1 | 120 | 12.9 | 4.5 | 23.1 | 50 | 27.2 | 33.2 | 2140 | 6.0 | 0.72 |
| 1 | 150 | 14.5 | 4.5 | 24.7 | 50 | 28.8 | 34.8 | 2420 | 7.5 | 0.76 |
| 1 | 185 | 16.0 | 4.5 | 26.2 | 50 | 30.3 | 36.3 | 2780 | 9.25 | 0.79 |
| 1 | 240 | 18.5 | 4.5 | 28.7 | 50 | 32.8 | 38.8 | 3340 | 12.0 | 0.86 |
| 1 | 300 | 20.5 | 4.5 | 30.7 | 50 | 34.8 | 40.8 | 3930 | 15.0 | 0.91 |
| 1 | 400 | 23.5 | 4.5 | 33.7 | 50 | 37.8 | 43.8 | 4800 | 20.0 | 0.98 |
| 1 | 500 | 26.5 | 4.5 | 37.2 | 50 | 41.5 | 47.5 | 5910 | 25.0 | 1.07 |
| 1 | 630 | 30.3 | 4.5 | 41.3 | 50 | 45.5 | 51.8 | 7270 | 31.5 | 1.18 |
| 1 | 800 | 34.6 | 4.5 | 46.0 | 50 | 50.2 | 56.9 | 8970 | 40.0 | 1.30 |
| 1 | 1000 | 38.2 | 4.5 | 49.6 | 50 | 53.8 | 60.7 | 10880 | 50.0 | 1.38 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 20.3 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 21.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 24.9 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 26.7 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 28.1 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 30.8 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 32.9 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 5.5 | 4.85 | 38.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 25.1 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 26.7 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 29.7 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 8 | 7.1 | 31.5 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 32.9 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 35.6 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 37.7 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 8 | 7.1 | 43.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
