N2XS(FL)H Cable Description

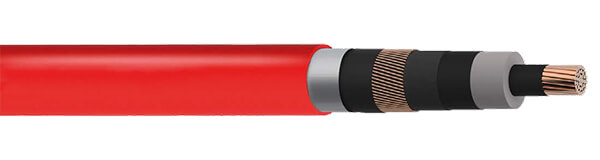

N2XS(FL)H cable features a copper conductor, cross-linked polyethylene (XLPE) insulation, and a low-smoke halogen-free (LSZH) outer sheath. “(FL)” indicates that the product has longitudinal and radial water-blocking tape to prevent water ingress.
This cable is suitable for fixed installations in power distribution networks, as well as connections to process machinery, plants, and power generation equipment. It can be fixed to cable trays, conduits, or walls, but is not suitable for direct burial.
N2XS(FL)H Cable Construction
- Conductor
- Class 2 Stranded Copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Screen
- Copper wires and copper tape
- Longitudinal Waterblocking
- Semi-conductive swellable tape
- Radial Waterblocking
- Al/PET (Aluminium/Polyester) tape tightly bonded to sheath
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
N2XS(FL)H Cable Characteristics
- Temperature Rating
- -20°C to +60°C
- Permissible Conductor Operating Temperature: +90°C
- Permissible Short Circuit Temperature up to 5 sec: 250°C
- Minimum Bending Radius
- 15 x overall diameter
- N2XS(FL)H 6/10kV Cable
- N2XS(FL)H 12/20kV Cable
- N2XS(FL)H 18/30kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10x2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 16.3 |
| 1 | 70 | 16 | 9.7 | 14x2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19x2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.7 | 19x2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.5 | 19x3.20 | 0.5 | 0.4 | 3.4 | 2.96 | 22.7 |
| 1 | 185 | 25 | 15.9 | 37x2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 24.1 |
| 1 | 240 | 25 | 18.6 | 48x2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 26.8 |
| 1 | 300 | 25 | 20.7 | 61x2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 28.9 |
| 1 | 400 | 35 | 23.5 | 61x2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26.5 | 61x3.29 | 0.5 | 0.4 | 3.4 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61x3.80 | 0.5 | 0.4 | 3.4 | 2.96 | 38.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 20.3 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 21.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 24.9 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 26.7 |
| 1 | 185 | 25 | 15.9 | 37 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 28.1 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 30.8 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 32.9 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 5.5 | 4.85 | 38.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 25.1 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 26.7 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 29.7 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 8 | 7.1 | 31.5 |
| 1 | 185 | 25 | 15.9 | 37 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 32.9 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 25.6 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 37.7 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 8 | 7.1 | 43.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
