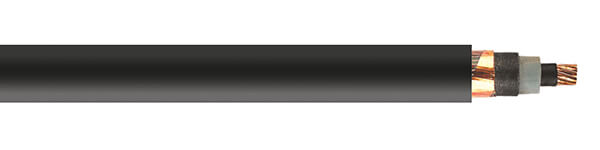

N2XSH Cable Description
N2XSH cable is a UV-resistant cable with a low-smoke halogen-free (LSZH) outer sheath, available in red and black. It is offered in multiple voltage ratings and two waterproof versions (N2XS(F)H and N2XS(FL)H).
N2XSH cable is typically manufactured according to IEC 60502-2 standards, and its flame retardancy complies with standards such as IEC 60332-3-24 and EN 60332-1-2. Suitable for indoor installation, it also offers UV resistance for outdoor use. It is widely used in dedicated power grids across numerous industries, including data centres and new life science projects.
N2XSH Cable Construction
- Conductor
- Class 2 Stranded Copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Screen
- Copper wires and copper tape
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
N2XSH Cable Characteristics
- Temperature Rating
- -20°C to +60°C
- Permissible Conductor Operating Temperature: +90°C
- Permissible Short Circuit Temperature up to 5 sec: 250°C
- Minimum Bending Radius
- 15 x overall diameter
- N2XSH 6/10kV Cable
- N2XSH 8.7/15kV Cable
- N2XSH 12/20kV Cable
- N2XSH 18/30kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 16.3 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 3.4 | 2.96 | 22.7 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 24.1 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 26.8 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 3.4 | 2.96 | 28.9 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 3.4 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 3.4 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 3.4 | 2.96 | 38.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | INSULATION mm | METALLIC SCREEN | NOMINAL OUTER DIAMETER OF CABLE mm | NOMINAL WEIGHT kg/km | MAXIMUM PULLING FORCE kN | MINIMUM BENDING RADIUS m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal thickness | Nominal diameter over | Nominal cross section mm² | Nominal diameter over mm |
|||||||
| 1 | 35 | 7.0 | 4.5 | 17.2 | 16 | 21.1 | 25.9 | 920 | 1.75 | 0.39 |
| 1 | 50 | 8.25 | 4.5 | 18.5 | 16 | 22.4 | 27.1 | 1060 | 2.5 | 0.41 |
| 1 | 70 | 9.6 | 4.5 | 19.8 | 25 | 23.7 | 28.5 | 1370 | 3.5 | 0.43 |
| 1 | 95 | 11.5 | 4.5 | 21.7 | 35 | 25.6 | 30.4 | 1740 | 4.75 | 0.46 |
| 1 | 120 | 12.9 | 4.5 | 23.1 | 50 | 27.0 | 31.8 | 2140 | 6 | 0.48 |
| 1 | 150 | 14.5 | 4.5 | 24.7 | 50 | 28.6 | 33.4 | 2430 | 7.5 | 0.50 |
| 1 | 185 | 16.0 | 4.5 | 26.2 | 50 | 30.1 | 34.9 | 2790 | 9.25 | 0.52 |
| 1 | 240 | 18.5 | 4.5 | 28.7 | 50 | 32.6 | 37.4 | 3350 | 12 | 0.56 |
| 1 | 300 | 20.5 | 4.5 | 30.7 | 50 | 34.6 | 39.4 | 3940 | 15 | 0.59 |
| 1 | 400 | 23.5 | 4.5 | 33.7 | 50 | 37.6 | 42.4 | 4810 | 20 | 0.64 |
| 1 | 500 | 26.5 | 4.5 | 37.2 | 50 | 41.3 | 46.1 | 5920 | 25 | 0.69 |
| 1 | 630 | 30.3 | 4.5 | 41.3 | 50 | 45.4 | 50.3 | 7290 | 31.5 | 0.75 |
| 1 | 800 | 34.6 | 4.5 | 46.0 | 50 | 50.1 | 55.4 | 9010 | 40 | 0.83 |
| 1 | 1000 | 38.2 | 4.5 | 49.6 | 50 | 53.7 | 59.2 | 10930 | 50 | 0.89 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 20.3 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 21.9 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 23.6 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 24.9 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 5.5 | 4.85 | 26.7 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 28.1 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 30.8 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 5.5 | 4.85 | 32.9 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 5.5 | 4.85 | 35.7 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 5.5 | 4.85 | 38.7 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 5.5 | 4.85 | 42.9 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NUMBER WIRES CONDUCTOR mm | NOM. THICKNESS SEMI-CON. LAYER | NOMINAL INSULATION THICKNESS mm | MINIMUM INSULATION THICKNESS mm | NOMINAL DIAMETER OVER INSULATION mm |
||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Screen | INNER mm | OUTER mm |
||||||
| 1 | 50 | 16 | 8.1 | 10 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 25.1 |
| 1 | 70 | 16 | 9.7 | 14 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 26.7 |
| 1 | 95 | 16 | 11.4 | 19 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 28.4 |
| 1 | 120 | 16 | 12.7 | 19 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 29.7 |
| 1 | 150 | 25 | 14.5 | 19 x 3.20 | 0.5 | 0.4 | 8 | 7.1 | 31.5 |
| 1 | 185 | 25 | 15.9 | 27 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 32.9 |
| 1 | 240 | 25 | 18.6 | 48 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 35.6 |
| 1 | 300 | 25 | 20.7 | 61 x 2.62 | 0.5 | 0.4 | 8 | 7.1 | 37.7 |
| 1 | 400 | 35 | 23.5 | 61 x 2.97 | 0.5 | 0.4 | 8 | 7.1 | 40.5 |
| 1 | 500 | 35 | 26.5 | 61 x 3.29 | 0.5 | 0.4 | 8 | 7.1 | 43.5 |
| 1 | 630 | 35 | 30.2 | 61 x 3.80 | 0.5 | 0.4 | 8 | 7.1 | 47.7 |
