N2XSY Cable

N2XSY Cable Description

N2XSY cable features stranded copper conductors, cross-linked polyethylene (XLPE) insulation, and a polyvinyl chloride (PVC) outer sheath. Designed for indoor and outdoor fixed installations, it can be directly buried underground or used in cable conduits.

N2XSY cable conforms to DIN VDE 0276-620, HD 620 S2, and IEC 60502 standards. Its flame-retardant properties meet DIN VDE 0482-332-1-2 standards, and it is free of silicone and cadmium. With an operating temperature up to +90°C and a short-circuit withstand temperature up to +250°C, it is ideal for high-heat-load networks. A three-core version, N2XSEY, is available upon request.

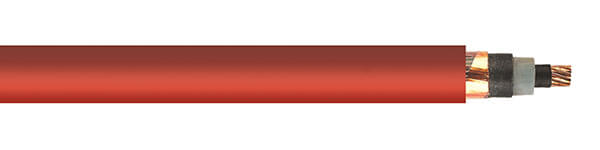

N2XSY Cable Construction

Conductor
Class 2 Stranded copper conductor
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive material
Screen
Copper wires
Sheath
PVC (Polyvinyl Chloride)

N2XSY Cable Characteristics

Temperature Rating
Maximum conductor operating temperature: 90°C
Initial temperature at S.C.C for metallic screen: 80°C
Maximum conductor temperature during S.C: 250°C
Minimum Bending Radius
15 x overall diameter

N2XSY XLPE PVC - 6/10 (12)kV Cable
N2XSY XLPE PVC - 12/20 (24)kV Cable
N2XSY XLPE PVC - 18/30 (36)kV Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL SCREEN CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	50	16	3.4	1.7	21.8	897
1	70	16	3.4	1.7	23.6	1117
1	95	16	3.4	1.8	25.1	1387
1	120	16	3.4	1.8	26.5	1636
1	150	25	3.4	1.9	28.5	2020
1	185	25	3.4	1.9	30	2361
1	240	25	3.4	2	32.6	2952
1	300	25	3.4	2.1	35	3521
1	400	35	3.4	2.2	38	4450
1	500	35	3.4	2.3	41.6	5457
1	630	35	3.4	2.4	46.5	6893
1	800	35	3.4	2.5	50.8	8694

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL SCREEN CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	50	16	5.5	1.8	26	1056
1	70	16	5.5	1.9	28	1301
1	95	16	5.5	1.9	29.3	1567
1	120	16	5.5	2	30.9	1840
1	150	25	5.5	2	32.7	2221
1	185	25	5.5	2.1	34.2	2572
1	240	25	5.5	2.2	36.8	3182
1	300	25	5.5	2.2	39.2	3764
1	400	35	5.5	2.3	42.2	4715
1	500	35	5.5	2.4	45.8	5748
1	630	35	5.5	2.5	50.7	7215
1	800	35	5.5	2.7	55.2	9072

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL SCREEN CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	50	16	8	2	31.4	1304
1	70	16	8	2	33.2	1550
1	95	16	8	2.1	34.5	1827
1	120	16	8	2.1	35.9	2095
1	150	25	8	2.2	37.9	2506
1	185	25	8	2.2	39.4	2870
1	240	25	8	2.3	42	3501
1	300	25	8	2.4	44.6	4128
1	400	35	8	2.5	47.6	5105
1	500	35	8	2.6	51.2	6167
1	630	35	8	2.7	56.1	7677
1	800	35	8	2.8	60.4	9543
