NA2XSERY Cable

NA2XSERY Cable Description

NA2XSERY cables feature aluminum conductors, XLPE insulation, a copper tape metallic screen, steel wire armor (SWA), and a PVC outer sheath. They are suitable for indoor and outdoor applications, including installation in cable tunnels, cable trenches, and shafts, as well as direct burial. They are capable of withstanding external mechanical forces and moderate tensile loads.

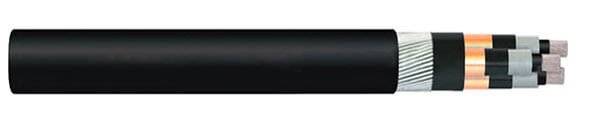

NA2XSERY Cable Construction

Conductor
Class 2 circular stranded aluminum
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper tape
Armour
Galvanized steel wire (SWA)
Outer Sheath
PVC (Polyvinyl Chloride)

NA2XSERY Cable Characteristics

Voltage Rating Uo/U (Um)
3.6/6 (7.2) kV
6/10 (12) kV
8.7/15 (17.5) kV
12/20 (24) kV
18/30 (36) kV
Operating Temperature
up to 90℃

NA2XSERY Cable Specification

No. of Cores and Nominal Cross Section (mm²)	Nominal Insulation Thickness (mm)	Nominal Steel Wire Diameter (mm)	Nominal Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Weight (kg/km)	Max. D.C. Resistance of Conductor at 20°C (Ω/km)
3.6/6(7.2)kV
3×25	2.5	2	2.3	41.5	2766	1.2
3×35	2.5	2.5	2.4	45.1	3439	0.868
3×50	2.5	2.5	2.5	47.6	3785	0.641
3×70	2.5	2.5	2.6	51.7	4364	0.443
3×95	2.5	2.5	2.7	55.8	4946	0.32
3×120	2.5	2.5	2.9	59	5523	0.253
3×150	2.5	2.5	3	62.6	6149	0.206
3×185	2.5	2.5	3.1	66.5	6855	0.164
3×240	2.6	3.15	3.3	73.8	8813	0.125
3×300	2.8	3.15	3.5	80	10117	0.1
3×400	3	3.15	3.8	87.7	11922	0.0778
3×500	3.2	3.15	4	96.6	14049	0.0605
3×630	3.2	3.15	4.3	105.6	16372	0.0469
6/10(12)kV
3×25	3.4	2.5	2.5	47.4	3631	1.2
3×35	3.4	2.5	2.6	49.8	3921	0.868
3×50	3.4	2.5	2.7	52.5	4305	0.641
3×70	3.4	2.5	2.8	56.6	4909	0.443
3×95	3.4	2.5	2.9	60.7	5554	0.32
3×120	3.4	2.5	3	63.7	6084	0.253
3×150	3.4	2.5	3.1	67.1	6702	0.206
3×185	3.4	2.5	3.2	71.2	7499	0.164
3×240	3.4	3.15	3.5	78.3	9503	0.125
3×300	3.4	3.15	3.6	83.4	10661	0.1
3×400	3.4	3.15	3.9	90.1	12308	0.0778
3×500	3.4	3.15	4.1	98.1	14303	0.0605
3×630	3.4	3.15	4.3	106.9	16596	0.0469
8.7/15(17.5)kV
3×25	4.5	2.5	2.6	53	4235	1.2
3×35	4.5	2.5	2.7	55.4	4580	0.868
3×50	4.5	2.5	2.8	58.1	4989	0.641
3×70	4.5	2.5	3	62.4	5657	0.443
3×95	4.5	2.5	3.1	66.5	6299	0.32
3×120	4.5	2.5	3.2	69.5	6912	0.253
3×150	4.5	3.15	3.3	74.2	8342	0.206
3×185	4.5	3.15	3.5	78.5	9231	0.164
3×240	4.5	3.15	3.6	83.9	10397	0.125
3×300	4.5	3.15	3.8	89.2	11770	0.1
3×400	4.5	3.15	4	95.6	13389	0.0778
3×500	4.5	3.15	4.2	103.7	15509	0.0605
3×630	4.5	3.15	4.5	112.7	17910	0.0469
12/20(24)kV
3×35	5.5	2.5	2.9	60.7	5215	0.868
3×50	5.5	2.5	3	63.5	5644	0.641
3×70	5.5	2.5	3.1	67.4	6241	0.443
3×95	5.5	2.5	3.2	71.6	6977	0.32
3×120	5.5	3.15	3.4	76.1	8477	0.253
3×150	5.5	3.15	3.5	79.6	9173	0.206
3×185	5.5	3.15	3.6	83.6	10054	0.164
3×240	5.5	3.15	3.8	89.2	11292	0.125
3×300	5.5	3.15	3.9	94.4	12659	0.1
3×400	5.5	3.15	4.2	101	14300	0.0778
3×500	5.5	3.15	4.4	109.1	16535	0.0605
3×630	5.5	3.15	4.6	117.9	18944	0.0469
18/30(36)kV
3×50	8	3.15	3.4	76.8	8101	0.641
3×70	8	3.15	3.5	80.9	8818	0.443
3×95	8	3.15	3.7	85.1	9672	0.32
3×120	8	3.15	3.8	88.1	10382	0.253
3×150	8	3.15	3.9	91.6	11126	0.206
3×185	8	3.15	4	95.6	12010	0.164
3×240	8	3.15	4.2	101.2	13385	0.125
3×300	8	3.15	4.3	106.4	14762	0.1
3×400	8	3.15	4.6	113	16563	0.0778
3×500	8	3.15	4.8	121.1	18912	0.0605
3×630	8	3.15	5	129.9	21448	0.0469
