NA2XS(F)H / NA2XS(FL)H Cable

NA2XS(F)H / NA2XS(FL)H Cable Description

These cables are waterproof versions of the NA2XSH cable. NA2XS(F)H features a longitudinal water-blocking structure, while NA2XS(FL)H offers both longitudinal (F) and radial (L) water resistance. Radial water resistance typically utilizes aluminum/PET tape to block external moisture.

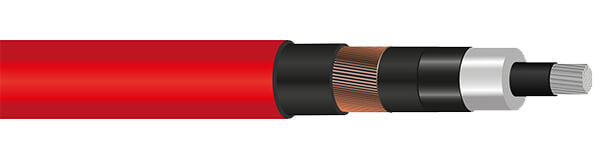

NA2XS(F)H / NA2XS(FL)H Cable Construction

	NA2XS(F)H Aluminium XLPE LSZH Cable	NA2XS(FL)H Aluminium XLPE LSZH Cable
Conductor	Class 2 stranded Aluminium
Conductor Screen	Semi-conductive material
Insulation	XLPE (Cross-linked Polyethylene)
Insulation Screen	Semi-conductive material
Bedding	LSZH (Low Smoke Zero Halogen)
Screen	Copper wires and Copper tape
Waterblocking	Longitudinal Waterblocking tape either side of screen	Longitudinal Waterblocking tape either side of screen + Radial Al/PET waterblocking bonded to sheath
Outer Sheath	LSZH (Low Smoke Zero Halogen)

NA2XS(F)H / NA2XS(FL)H Cable Characteristics

Temperature Rating
-20°C to +60°C
Permissible Conductor Operating Temperature: +90°C
Permissible Short Circuit Temperature up to 5 sec: 250°C
Minimum Bending Radius
15 x overall diameter

NA2XS(F)H Aluminium XLPE LSZH 6/10kV Cable
NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable
NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable
NA2XS(F)H Aluminium XLPE LSZH 18/30kV Cable
NA2XS(FL)H Aluminium XLPE LSZH 6/10kV Cable
NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable
NA2XS(FL)H Aluminium XLPE LSZH 18/30kV Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	3.4	2.96	16.4
1	70	16	9.7	19 x 2.18	0.5	0.4	3.4	2.96	17.9
1	95	16	11.4	19 x 2.55	0.5	0.4	3.4	2.96	19.6
1	120	16	12.65	19 x 2.90	0.5	0.4	3.4	2.96	20.9
1	150	25	14.4	19 x 3.16	0.5	0.4	3.4	2.96	22.6
1	185	25	15.75	37 x 2.55	0.5	0.4	3.4	2.96	24.4
1	240	25	18.2	37 x 2.90	0.5	0.4	3.4	2.96	26.9
1	300	25	20.5	61 x 2.55	0.5	0.4	3.4	2.96	29.2
1	400	35	23	61 x 2.90	0.5	0.4	3.4	2.96	31.7
1	500	35	26	61 x 3.20	0.5	0.4	3.4	2.96	34.7
1	630	35	30.2	61 x 3.65	0.5	0.4	3.4	2.96	38.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	50	8.25	4.5	18.5	16	22.6	28.1	720	1.5	0.42
1	70	9.5	4.5	19.7	25	23.8	29.4	890	2.1	0.44
1	95	11.3	4.5	21.5	35	25.6	31.2	1100	2.85	0.47
1	120	12.5	4.5	22.7	50	26.8	32.4	1330	3.6	0.49
1	150	14.2	4.5	24.4	50	28.5	34.1	1440	4.5	0.51
1	185	15.8	4.5	26	50	30.1	35.7	1580	5.55	0.54
1	240	17.9	4.5	28.1	50	32.2	37.8	1780	7.2	0.57
1	300	20	4.5	30.2	50	34.3	39.9	1990	9	0.6
1	400	22.9	4.5	33.1	50	37.2	42.8	2300	12	0.64
1	500	25.7	4.5	36.4	50	40.7	46.3	2710	15	0.69
1	630	29.3	4.5	40.3	50	44.6	50.3	3190	18.9	0.75
1	800	33	4.5	44.4	50	48.7	54.6	3780	24	0.82
1	1000	38	4.5	49.4	50	53.7	60	4510	30	0.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	5.5	4.85	20.4
1	70	16	9.7	19 x 2.18	0.5	0.4	5.5	4.85	21.9
1	95	16	11.4	19 x 2.55	0.5	0.4	5.5	4.85	23.6
1	120	16	12.65	19 x 2.90	0.5	0.4	5.5	4.85	24.9
1	150	25	14.4	19 x 3.16	0.5	0.4	5.5	4.85	26.6
1	185	25	15.75	37 x 2.55	0.5	0.4	5.5	4.85	28.4
1	240	25	18.2	37 x 2.90	0.5	0.4	5.5	4.85	30.9
1	300	25	20.5	61 x 2.55	0.5	0.4	5.5	4.85	33.2
1	400	35	23	61 x 2.90	0.5	0.4	5.5	4.85	35.7
1	500	35	26	61 x 3.20	0.5	0.4	5.5	4.85	38.7
1	630	35	30.2	61 x 3.65	0.5	0.4	5.5	4.85	42.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	8	7.1	25.2
1	70	16	9.7	19 x 2.18	0.5	0.4	8	7.1	26.7
1	95	16	11.4	19 x 2.55	0.5	0.4	8	7.1	28.4
1	120	16	12.65	19 x 2.90	0.5	0.4	8	7.1	29.7
1	150	25	14.4	19 x 3.16	0.5	0.4	8	7.1	31.4
1	185	25	15.75	37 x 2.55	0.5	0.4	8	7.1	33.2
1	240	25	18.2	37 x 2.90	0.5	0.4	8	7.1	35.7
1	300	25	20.5	61 x 2.55	0.5	0.4	8	7.1	38
1	400	35	23	61 x 2.90	0.5	0.4	8	7.1	40.5
1	500	35	26	61 x 3.20	0.5	0.4	8	7.1	43.5
1	630	35	30.2	61 x 3.65	0.5	0.4	8	7.1	47.7

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	3.4	2.96	16.4
1	70	16	9.7	19 x 2.18	0.5	0.4	3.4	2.96	17.9
1	95	16	11.4	19 x 2.55	0.5	0.4	3.4	2.96	19.6
1	120	16	12.65	19 x 2.90	0.5	0.4	3.4	2.96	20.9
1	150	25	14.4	19 x 3.16	0.5	0.4	3.4	2.96	23.1
1	185	25	15.75	37 x 2.55	0.5	0.4	3.4	2.96	24.4
1	240	25	18.2	37 x 2.90	0.5	0.4	3.4	2.96	26.9
1	300	25	20.5	61 x 2.55	0.5	0.4	3.4	2.96	29.2
1	400	35	23	61 x 2.90	0.5	0.4	3.4	2.96	31.7
1	500	35	26	61 x 3.20	0.5	0.4	3.4	2.96	34.7
1	630	35	30.2	61 x 3.65	0.5	0.4	3.4	2.96	38.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	5.5	4.85	20.4
1	70	16	9.7	19 x 2.18	0.5	0.4	5.5	4.85	21.9
1	95	16	11.4	19 x 2.55	0.5	0.4	5.5	4.85	23.6
1	120	16	12.65	19 x 2.90	0.5	0.4	5.5	4.85	24.9
1	150	25	14.4	19 x 3.16	0.5	0.4	5.5	4.85	26.6
1	185	25	15.75	37 x 2.55	0.5	0.4	5.5	4.85	28.4
1	240	25	18.2	37 x 2.90	0.5	0.4	5.5	4.85	30.9
1	300	25	20.5	61 x 2.55	0.5	0.4	5.5	4.85	33.2
1	400	35	23	61 x 2.90	0.5	0.4	5.5	4.85	35.7
1	500	35	26	61 x 3.20	0.5	0.4	5.5	4.85	38.7
1	630	35	30.2	61 x 3.65	0.5	0.4	5.5	4.85	42.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	8	7.1	25.2
1	70	16	9.7	19 x 2.18	0.5	0.4	8	7.1	26.7
1	95	16	11.4	19 x 2.55	0.5	0.4	8	7.1	28.4
1	120	16	12.65	19 x 2.90	0.5	0.4	8	7.1	29.7
1	150	25	14.4	19 x 3.16	0.5	0.4	8	7.1	31.4
1	185	25	15.75	37 x 2.55	0.5	0.4	8	7.1	33.2
1	240	25	18.2	37 x 2.90	0.5	0.4	8	7.1	35.7
1	300	25	20.5	61 x 2.55	0.5	0.4	8	7.1	38
1	400	35	23	61 x 2.90	0.5	0.4	8	7.1	40.5
1	500	35	26	61 x 3.20	0.5	0.4	8	7.1	43.5
1	630	35	30.2	61 x 3.65	0.5	0.4	8	7.1	47.7
