NA2XSH Cable

NA2XSH Cable Description

NA2XSH is a single-core cable, but a three-core cable (NA2XSEH) is available upon request. This cable is the aluminium conductor version of the N2XSH cable, suitable for applications where installation space is not limited, as aluminium cables have a significantly higher current-carrying capacity than copper cables of equivalent capacity.

This cable is available with optional waterproofing options (NA2XS(F)H and NA2XS(FL)H) for indoor and outdoor installations, including direct burial and cable conduit installations.

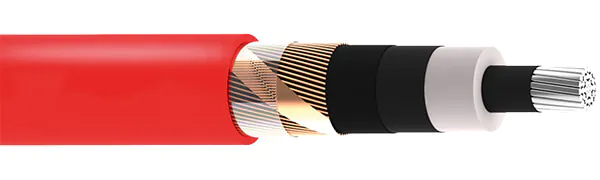

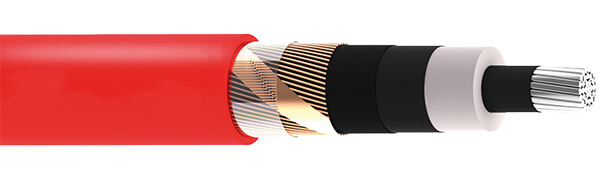

NA2XSH Cable Construction

Conductor
Class 2 Stranded Aluminium
Conductor Screen
Semi-Conductive material
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-Conductive material
Bedding
LSZH (Low Smoke Zero Halogen)
Screen
Copper Wires and Copper Tape
Outer Sheath
LSZH (Low Smoke Zero Halogen)

NA2XSH Cable Characteristics

Temperature Rating
Permissible operating temperature of conductor: +90°C
Permissible short-circuit temperature up to 5 sec: +250°C
Minimum Bending Radius
15 x overall diameter

NA2XSH Aluminium XLPE LSZH 6/10kV Cable
NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable
NA2XSH Aluminium XLPE LSZH 12/20kV Cable
NA2XSH Aluminium XLPE LSZH 18/30kV Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	3.4	2.96	16.4
1	70	16	9.7	19 x 2.18	0.5	0.4	3.4	2.96	17.9
1	95	16	11.4	19 x 2.55	0.5	0.4	3.4	2.96	19.6
1	120	16	12.65	19 x 2.90	0.5	0.4	3.4	2.96	20.9
1	150	25	14.4	19 x 3.16	0.5	0.4	3.4	2.96	22.6
1	185	25	15.75	37 x 2.55	0.5	0.4	3.4	2.96	24.4
1	240	25	18.2	37 x 2.90	0.5	0.4	3.4	2.96	26.9
1	300	25	20.5	61 x 2.55	0.5	0.4	3.4	2.96	29.2
1	400	35	23	61 x 2.90	0.5	0.4	3.4	2.96	31.7
1	500	35	26	61 x 3.20	0.5	0.4	3.4	2.96	34.7
1	630	35	30.2	61 x 3.65	0.5	0.4	3.4	2.96	38.9

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	50	8.25	4.5	18.5	16	22.4	27.1	780	1.5	0.41
1	70	9.5	4.5	19.7	25	23.6	28.4	950	2.1	0.43
1	95	11.3	4.5	21.5	35	25.4	30.2	1160	2.85	0.45
1	120	12.5	4.5	22.7	50	26.6	31.4	1400	3.6	0.47
1	150	14.2	4.5	24.4	50	28.3	33.1	1520	4.5	0.50
1	185	15.8	4.5	26.0	50	29.9	34.7	1660	5.55	0.52
1	240	17.9	4.5	28.1	50	32.0	36.8	1870	7.2	0.55
1	300	20.0	4.5	30.2	50	34.1	38.9	2080	9	0.58
1	400	22.9	4.5	33.1	50	37.0	41.8	2390	12	0.63
1	500	25.7	4.5	36.4	50	40.5	45.3	2810	15	0.68
1	630	29.3	4.5	40.3	50	44.4	49.3	3310	18.9	0.74
1	800	33.0	4.5	44.4	50	48.5	53.6	3920	24	0.80
1	1000	38.0	4.5	49.4	50	53.5	59.0	4680	30	0.89

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
NO. OF CORES	Conductor	Copper Wire Screen	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	35	16	27	800
1	50	16	28	850
1	70	16	30	950
1	95	16	32	1100
1	120	16	33	1200
1	150	25	34	1400
1	185	25	36	1600
1	240	25	38	1800
1	300	25	38	2000
1	400	35	43	2500
1	500	35	46	2900
1	630	35	50	3500
3	35	16	52	2750
3	50	16	55	3000
3	70	16	60	3500
3	95	16	63	4200
3	120	16	66	4500
3	150	25	70	5250
3	185	25	73	5800
3	240	25	79	6800
3	300	25	84	7800
3	400	25	90	9400

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
1	50	16	8.2	7 x 2.90	0.5	0.4	8	7.1	25.2
1	70	16	9.7	19 x 2.18	0.5	0.4	8	7.1	26.7
1	95	16	11.4	19 x 2.55	0.5	0.4	8	7.1	28.4
1	120	16	12.65	19 x 2.90	0.5	0.4	8	7.1	29.7
1	150	25	14.4	19 x 3.16	0.5	0.4	8	7.1	31.4
1	185	25	15.75	37 x 2.55	0.5	0.4	8	7.1	33.2
1	240	25	18.2	37 x 2.90	0.5	0.4	8	7.1	35.7
1	300	25	20.5	61 x 2.55	0.5	0.4	8	7.1	38.0
1	400	35	23.0	61 x 2.90	0.5	0.4	8	7.1	40.5
1	500	35	26.0	61 x 3.20	0.5	0.4	8	7.1	43.5
1	630	35	30.2	61 x 3.65	0.5	0.4	8	7.1	47.7
