NA2XSY Cable Description
NA2XSY cable conforms to VDE 0482-332-1-2 and IEC 60332-1 flame-retardant standards and can be laid and terminated within buildings. As an aluminum alternative to copper-core N2XSY cable, it is suitable for applications where space is not limited or cable weight is a concern. However, to achieve the same current-carrying capacity as the copper-core version, the cable specification needs to be increased by an average of two grades.

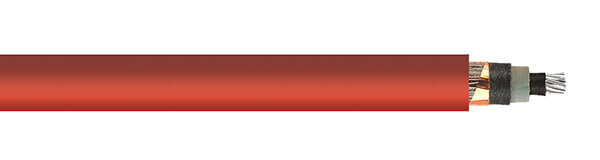

NA2XSY Cable Construction
- Conductor
- Class 2 stranded aluminium conductor
- Conductor Screen
- Semi-conductive material
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Insulation Screen
- Semi-conductive material
- Screen
- Copper wires
- Outer Sheath
- PVC (Polyvinyl Chloride)
NA2XSY Cable Characteristics
- Temperature Rating
- Fixed: -20°C to +90°C
- Minimum Bending Radius
- 15 x overall diameter
- NA2XSY Aluminium XLPE PVC - 6/10kV Cable
- NA2XSY Aluminium XLPE PVC - 12/20kV Cable
- NA2XSY Aluminium XLPE PVC - 18/30kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Conductor | Copper Wire Screen | |||
| 1 | 35 | 16 | 28 | 700 |
| 1 | 50 | 16 | 29 | 750 |
| 1 | 70 | 16 | 31 | 850 |
| 1 | 95 | 16 | 32 | 950 |
| 1 | 120 | 16 | 34 | 1050 |
| 1 | 150 | 25 | 35 | 1300 |
| 1 | 185 | 25 | 37 | 1400 |
| 1 | 240 | 25 | 39 | 1650 |
| 1 | 300 | 25 | 40 | 1850 |
| 1 | 400 | 35 | 45 | 2300 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 50 | 16 | 5.5 | 1.8 | 26 | 780 |
| 1 | 70 | 16 | 5.5 | 1.9 | 27.8 | 899 |
| 1 | 95 | 16 | 5.5 | 1.9 | 29.3 | 1003 |
| 1 | 120 | 16 | 5.5 | 2 | 30.9 | 1130 |
| 1 | 150 | 25 | 5.5 | 2 | 33.3 | 1355 |
| 1 | 185 | 25 | 5.5 | 2.1 | 34.2 | 1467 |
| 1 | 240 | 25 | 5.5 | 2.2 | 36.8 | 1705 |
| 1 | 300 | 25 | 5.5 | 2.2 | 39.1 | 1936 |
| 1 | 400 | 35 | 5.5 | 2.3 | 42.1 | 2384 |
| 1 | 500 | 35 | 5.5 | 2.4 | 45.3 | 2782 |
| 1 | 630 | 35 | 5.5 | 2.5 | 50.4 | 3414 |
| 1 | 800 | 35 | 5.5 | 2.7 | 55.6 | 4170 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Conductor | Copper Wire Screen | |||
| 1 | 50 | 16 | 41 | 1190 |
| 1 | 70 | 16 | 42 | 1315 |
| 1 | 95 | 16 | 43 | 1450 |
| 1 | 120 | 16 | 45 | 1580 |
| 1 | 150 | 25 | 47 | 1800 |
| 1 | 185 | 25 | 49 | 1965 |
| 1 | 240 | 25 | 51 | 2230 |
| 1 | 300 | 25 | 53 | 2470 |
| 1 | 400 | 35 | 56 | 2920 |
