NF C 33-226 Cable Description
NF C 33-226 is a commonly used French cable standard. These cables are available in single-core and 3×1 (three-core) specifications, using cross-linked polyethylene (XLPE) insulation. The cables have an internal aluminum foil metal shielding layer, beneath which is wound longitudinal water-blocking tape. The polyethylene sheath provides a robust outer protective layer, effectively protecting the cable from environmental influences.
NF C 33-226 Cable Construction
- Conductor
- Class 2 Stranded Aluminium/Copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Waterblocking
- Longitudinal Waterblocking Tape
- Tape
- Aluminium Tape
- Outer Sheath
- MDPE (Medium Density Polyethylene)
NF C 33-226 Cable Characteristics
- Voltage Rating
- 12/20kV
- 18/30kV
- Temperature Rating
- Maximum conductor operating temperature: 90°C
- Initial temperature at S.C.C for metallic screen: 80°C
- Maximum conductor temperature during S.C.: 250°C
- Minimum Bending Radius
- 20 x Overall diameter

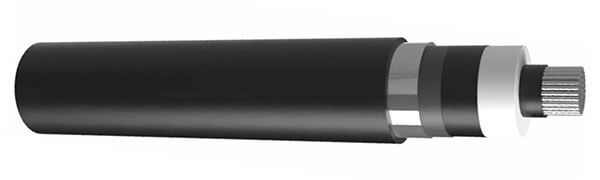

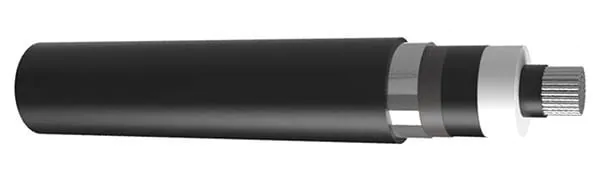

- NF C 33-226 AL-XLPE-MDPE Cable
- NF C 33-226 AL-XLPE-MDPE Triplex Cable
- NF C 33-226 CU-XLPE-MDPE Cable
- NF C 33-226 CU-XLPE-MDPE Triplex Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR SCREEN THICKNESS mm | NOMINAL INSULATION THICKNESS mm | NOMINAL INSULATION SCREEN THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 12/20kV | ||||||||
| 1 | 50 | 15 | 0.6 | 4.5 | 0.7 | 1.7 | 25.8 | 614 |
| 1 | 70 | 17 | 0.6 | 4.5 | 0.7 | 1.8 | 27.6 | 731 |
| 1 | 95 | 18 | 0.6 | 4.5 | 0.7 | 1.8 | 29.1 | 833 |
| 1 | 120 | 19 | 0.6 | 4.5 | 0.7 | 1.9 | 30.7 | 953 |
| 1 | 150 | 20 | 0.6 | 4.5 | 0.7 | 1.9 | 32.9 | 1090 |
| 1 | 185 | 21 | 0.6 | 4.5 | 0.7 | 2.0 | 34 | 1212 |
| 1 | 240 | 22 | 0.6 | 4.5 | 0.7 | 2.1 | 36.6 | 1440 |
| 1 | 300 | 24 | 0.6 | 4.5 | 0.7 | 2.1 | 39 | 1674 |
| 1 | 400 | 26 | 0.6 | 4.5 | 0.7 | 2.3 | 41.9 | 2027 |
| 1 | 500 | 28 | 0.6 | 4.5 | 0.7 | 2.4 | 45.1 | 2411 |
| 1 | 630 | 31 | 0.7 | 4.5 | 0.7 | 2.5 | 50 | 3010 |
| 1 | 800 | 34 | 0.7 | 4.5 | 0.7 | 2.6 | 55 | 3718 |
| 18/30kV | ||||||||
| 1 | 50 | 18 | 0.6 | 6.7 | 0.7 | 1.9 | 30.6 | 819 |
| 1 | 70 | 20 | 0.6 | 6.7 | 0.7 | 1.9 | 32.2 | 939 |
| 1 | 95 | 21 | 0.6 | 6.7 | 0.7 | 2.0 | 33.9 | 1062 |
| 1 | 120 | 22 | 0.6 | 6.7 | 0.7 | 2.1 | 35.5 | 1193 |
| 1 | 150 | 23 | 0.6 | 6.7 | 0.7 | 2.1 | 37.7 | 1345 |
| 1 | 185 | 24 | 0.6 | 6.7 | 0.7 | 2.2 | 38.8 | 1477 |
| 1 | 240 | 25 | 0.6 | 6.7 | 0.7 | 2.2 | 41.2 | 1709 |
| 1 | 300 | 27 | 0.6 | 6.7 | 0.7 | 2.3 | 43.8 | 1972 |
| 1 | 400 | 29 | 0.6 | 6.7 | 0.7 | 2.4 | 46.5 | 2334 |
| 1 | 500 | 31 | 0.6 | 6.7 | 0.7 | 2.5 | 49.7 | 2741 |
| 1 | 630 | 34 | 0.7 | 6.7 | 0.7 | 2.6 | 54.6 | 3372 |
| 1 | 800 | 37 | 0.7 | 6.7 | 0.7 | 2.8 | 59.8 | 4132 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR SCREEN THICKNESS mm | NOMINAL INSULATION THICKNESS mm | NOMINAL INSULATION SCREEN THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 12/20kV | ||||||||
| 3x1 | 50 | 15 | 0.6 | 4.5 | 0.7 | 2.1 | 55.7 | 1845 |
| 3x1 | 70 | 17 | 0.6 | 4.5 | 0.7 | 1.8 | 59.6 | 2197 |
| 3x1 | 95 | 18 | 0.6 | 4.5 | 0.7 | 1.8 | 62.9 | 2509 |
| 3x1 | 120 | 19 | 0.6 | 4.5 | 0.7 | 1.9 | 66.3 | 2872 |
| 3x1 | 150 | 20 | 0.6 | 4.5 | 0.7 | 1.9 | 71.1 | 3287 |
| 3x1 | 185 | 21 | 0.6 | 4.5 | 0.7 | 2.0 | 73.4 | 3659 |
| 3x1 | 240 | 22 | 0.6 | 4.5 | 0.7 | 2.1 | 79.1 | 4349 |
| 3x1 | 300 | 24 | 0.6 | 4.5 | 0.7 | 2.1 | 84.2 | 5057 |
| 3x1 | 400 | 26 | 0.6 | 4.5 | 0.7 | 2.3 | 90.5 | 6132 |
| 18/30kV | ||||||||
| 3x1 | 50 | 18 | 0.6 | 6.7 | 0.7 | 1.9 | 66.1 | 2469 |
| 3x1 | 70 | 20 | 0.6 | 6.7 | 0.7 | 1.9 | 69.6 | 2829 |
| 3x1 | 95 | 21 | 0.6 | 6.7 | 0.7 | 2.0 | 73.2 | 3203 |
| 3x1 | 120 | 22 | 0.6 | 6.7 | 0.7 | 2.1 | 76.7 | 3602 |
| 3x1 | 150 | 23 | 0.6 | 6.7 | 0.7 | 2.1 | 81.4 | 4064 |
| 3x1 | 185 | 24 | 0.6 | 6.7 | 0.7 | 2.2 | 83.8 | 4459 |
| 3x1 | 240 | 25 | 0.6 | 6.7 | 0.7 | 2.2 | 89.0 | 5166 |
| 3x1 | 300 | 27 | 0.6 | 6.7 | 0.7 | 2.3 | 94.6 | 5965 |
| 3x1 | 400 | 29 | 0.6 | 6.7 | 0.7 | 2.4 | 100.4 | 7063 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR SCREEN THICKNESS mm | NOMINAL INSULATION THICKNESS mm | NOMINAL INSULATION SCREEN THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 12/20kV | ||||||||
| 1 | 50 | 15 | 0.6 | 4.5 | 0.7 | 1.7 | 25.8 | 890 |
| 1 | 70 | 17 | 0.6 | 4.5 | 0.7 | 1.8 | 27.8 | 1131 |
| 1 | 95 | 18 | 0.6 | 4.5 | 0.7 | 1.8 | 29.1 | 1397 |
| 1 | 120 | 19 | 0.6 | 4.5 | 0.7 | 1.9 | 30.7 | 1663 |
| 1 | 150 | 20 | 0.6 | 4.5 | 0.7 | 1.9 | 32.3 | 1957 |
| 1 | 185 | 21 | 0.6 | 4.5 | 0.7 | 2.0 | 34 | 2317 |
| 1 | 240 | 22 | 0.6 | 4.5 | 0.7 | 2.1 | 36.6 | 2917 |
| 1 | 300 | 24 | 0.6 | 4.5 | 0.7 | 2.1 | 39 | 3499 |
| 1 | 400 | 26 | 0.6 | 4.5 | 0.7 | 2.3 | 42 | 4358 |
| 1 | 500 | 28 | 0.6 | 4.5 | 0.7 | 2.4 | 45.6 | 5392 |
| 1 | 630 | 31 | 0.7 | 4.5 | 0.7 | 2.5 | 50.3 | 6810 |
| 1 | 800 | 34 | 0.7 | 4.5 | 0.7 | 2.6 | 54.6 | 8620 |
| 18/30kV | ||||||||
| 1 | 50 | 18 | 0.6 | 6.7 | 0.7 | 1.9 | 30.6 | 1095 |
| 1 | 70 | 20 | 0.6 | 6.7 | 0.7 | 1.9 | 32.4 | 1341 |
| 1 | 95 | 21 | 0.6 | 6.7 | 0.7 | 2.0 | 33.9 | 1626 |
| 1 | 120 | 22 | 0.6 | 6.7 | 0.7 | 2.1 | 35.5 | 1903 |
| 1 | 150 | 23 | 0.6 | 6.7 | 0.7 | 2.1 | 37.1 | 2210 |
| 1 | 185 | 24 | 0.6 | 6.7 | 0.7 | 2.2 | 38.8 | 2582 |
| 1 | 240 | 25 | 0.6 | 6.7 | 0.7 | 2.2 | 41.2 | 3186 |
| 1 | 300 | 27 | 0.6 | 6.7 | 0.7 | 2.3 | 43.8 | 3797 |
| 1 | 400 | 29 | 0.6 | 6.7 | 0.7 | 2.4 | 46.6 | 4666 |
| 1 | 500 | 31 | 0.6 | 6.7 | 0.7 | 2.5 | 50.2 | 5723 |
| 1 | 630 | 34 | 0.7 | 6.7 | 0.7 | 2.6 | 54.9 | 7173 |
| 1 | 800 | 37 | 0.7 | 6.7 | 0.7 | 2.8 | 59.4 | 9033 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR SCREEN THICKNESS mm | NOMINAL INSULATION THICKNESS mm | NOMINAL INSULATION SCREEN THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 12/20kV | ||||||||
| 3 | 50 | 15 | 0.6 | 4.5 | 0.7 | 2.1 | 55.7 | 2682 |
| 3 | 70 | 17 | 0.6 | 4.5 | 0.7 | 1.8 | 60 | 3415 |
| 3 | 95 | 18 | 0.6 | 4.5 | 0.7 | 1.8 | 62.9 | 4220 |
| 3 | 120 | 19 | 0.6 | 4.5 | 0.7 | 1.9 | 66.3 | 5025 |
| 3 | 150 | 20 | 0.6 | 4.5 | 0.7 | 1.9 | 69.8 | 5921 |
| 3 | 185 | 21 | 0.6 | 4.5 | 0.7 | 2.0 | 73.4 | 7011 |
| 3 | 240 | 22 | 0.6 | 4.5 | 0.7 | 2.1 | 79.1 | 8829 |
| 3 | 300 | 24 | 0.6 | 4.5 | 0.7 | 2.1 | 84.2 | 10593 |
| 3 | 400 | 26 | 0.6 | 4.5 | 0.7 | 2.3 | 90.7 | 13206 |
| 18/30kV | ||||||||
| 3 | 50 | 18 | 0.6 | 6.7 | 0.7 | 1.9 | 66.1 | 3306 |
| 3 | 70 | 20 | 0.6 | 6.7 | 0.7 | 1.9 | 70 | 4050 |
| 3 | 95 | 21 | 0.6 | 6.7 | 0.7 | 2.0 | 73.2 | 4914 |
| 3 | 120 | 22 | 0.6 | 6.7 | 0.7 | 2.1 | 76.7 | 5755 |
| 3 | 150 | 23 | 0.6 | 6.7 | 0.7 | 2.1 | 80.1 | 6683 |
| 3 | 185 | 24 | 0.6 | 6.7 | 0.7 | 2.2 | 83.8 | 7811 |
| 3 | 240 | 25 | 0.6 | 6.7 | 0.7 | 2.2 | 89 | 9646 |
| 3 | 300 | 27 | 0.6 | 6.7 | 0.7 | 2.3 | 94.6 | 11501 |
| 3 | 400 | 29 | 0.6 | 6.7 | 0.7 | 2.4 | 100.7 | 14139 |
