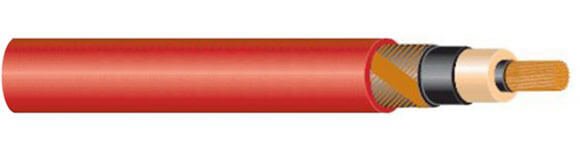

RG7H1R Cable

RG7H1R Cable Description

The RG7H1R cable features stranded copper conductors, a PVC outer sheath, and a triple co-extrusion system (inner semiconductor layer, insulation layer, outer semiconductor layer), which helps reduce partial discharge. It is commonly used to power airport runway, taxiway, and apron lights, as well as navigation and obstacle indication equipment.

RG7H1R Cable Construction

Conductor
Stranded copper
Insulation
Rubber compound, G7 type
Outer / Inner Semi-Conductor
Extruded semi-conducting compound
Screen
Bare copper tapes
Sheath
PVC (Polyvinyl chloride)

RG7H1R Cable Characteristics

Rated Voltage Uo/U
3.6/6kV
Temperature Rating
Fixed: 0°C to +90°C
Minimum Bending Radius
15 x Overall Diameter

RG7H1R Cable Specifications

NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	MINIMUM SHIELD THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
10	2.3	0.075	1.4	14	305
