RH5Z1 Cable Description
RH5Z1 cables use Category 2 stranded aluminum conductors, cross-linked polyethylene (XLPE) insulation, and a polyolefin (PO) outer sheath. It features longitudinal waterproofing: an insulation shield (OL) or a conductor and insulation shield (2OL).
This cable is similar to the RHZ1 cable, but with different specifications (‘H5’). An aluminum foil layer is affixed beneath the outer sheath, providing both moisture protection and shielding.

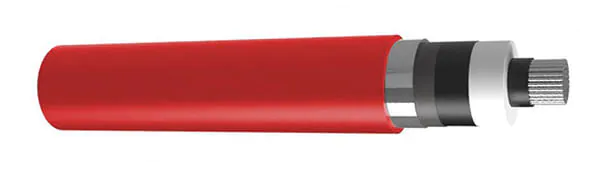

RH5Z1 Cable Construction
- Conductor
- Class 2 stranded Aluminium
- Tape
- Water blocking Tape Over Conductor
- Conductor Screen
- Extruded Inner Semi Conductor (Bonded Type)
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Insulation Screen
- Extruded Outer Semi Conductor (Strippable Type)
- Tape
- Semi Conductive water blocking Tape
- Aluminium Tape
- Applied Longitudinally
- Sheath
- PO (DMZ1 in accordance with HD 620)
RH5Z1 Cable Characteristics
- Voltage Rating Uo/U
- 12/20 (24)kV
- 18/30 (36)kV
- Temperature Rating
- Maximum conductor operating temperature: 90°C
- Initial temperature at S.C.C for metallic screen: 80°C
- Maximum conductor temperature during S.C: 250°C
- Minimum Bending Radius
- 20 x overall diameter
- RH5Z1 Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 12/20KV | |||||
| 1 | 50 | 4.9 | 2.75 | 29.3 | 782 |
| 1 | 95 | 4.9 | 2.75 | 32.4 | 1007 |
| 1 | 150 | 4.9 | 2.75 | 36 | 1278 |
| 1 | 185 | 4.9 | 2.75 | 36.9 | 1398 |
| 1 | 240 | 4.9 | 2.75 | 39.3 | 1626 |
| 1 | 400 | 4.9 | 2.75 | 44.2 | 2205 |
| 1 | 630 | 4.9 | 2.75 | 52.1 | 3208 |
| 18/30KV | |||||
| 1 | 50 | 7.25 | 2.75 | 34.3 | 1025 |
| 1 | 95 | 7.25 | 2.75 | 37.4 | 1272 |
| 1 | 150 | 7.25 | 2.75 | 41 | 1571 |
| 1 | 185 | 7.25 | 2.75 | 41.9 | 1701 |
| 1 | 240 | 7.25 | 2.75 | 44.3 | 1941 |
| 1 | 400 | 7.25 | 2.75 | 49.2 | 2561 |
| 1 | 630 | 7.25 | 2.75 | 57.1 | 3620 |
