RHVhMVh Cable

RHVhMVh Cable Description

RHVhMVh cables utilize Category 2 copper conductors, cross-linked polyethylene (XLPE) insulation, and a PVC outer sheath. Due to its chemical resistance, it is ideally suited for the oil, gas, and mining industries.

RHVhMVh Cable Construction

Conductor
Class 2 copper
Conductor screen
Screen over the conductor, made of thermosetting semiconductor material.
Insulation
XLPE (Cross-linked polyethylene)
Insulation screen
Screen over the insulation, made of thermosetting and strippable semiconductor material.
Beding
PVC
Armour

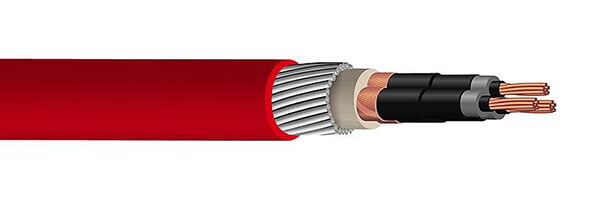

Galvanized steel wire wrapped helicoidally around the cable and fixed with a counter-wound metal tape.
Outer sheath
PVC

RHVhMVh Cable Characteristics

Voltage Rating
Typically 3.6/6 kV up to 18/30 kV
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuittemperature: 250ºC (max. 5 s).
Minimum service temperature: -15ºC.
Mechanical performance
Minimum bending radius: 15x cable diameter.

RHVhMVh Cable Specifications

Cross-section (mm²)	Conductor Diameter (mm)	Insulation Diameter (mm)	External Diameter (mm)	Weight (Kg/Km)	R20°C (Ω/km)	X (W/km)	C (µF/km)	Open air (A)	Buried (A)
3.6/6 (7.2) kV
3 x 50	8,5	14,5	48,5	5.265	0,387	0,093	0,308	205	181
3 x 70	10,0	16,0	52,1	6.265	0,268	0,089	0,348	253	220
3 x 95	11,1	17,1	54,9	7.6	0,193	0,086	0,377	307	262
3 x 120	12,8	18,8	59,0	8.455	0,153	0,083	0,421	352	298
3 x 150	15,0	21,0	64,1	10.035	0,124	0,080	0,479	397	332
3 x 185	16,5	22,5	67,9	11.67	0,0991	0,079	0,518	453	374
3 x 240	18,1	24,3	72,8	13.735	0,0754	0,078	0,541	529	431
6/10 (12) kV
3 x 50	8,5	15,7	51,7	5.65	0,387	0,098	0,259	205	181
3 x 70	10,0	17,2	55,1	6.64	0,268	0,093	0,291	253	220
3 x 95	11,1	18,3	57,9	7.74	0,193	0,090	0,315	307	262
3 x 120	12,8	20,0	62,1	8.92	0,153	0,087	0,351	352	298
3 x 150	15,0	22,2	67,3	10.5	0,124	0,084	0,398	397	332
3 x 185	16,5	23,7	70,7	12.03	0,0991	0,082	0,430	453	374
3 x 240	18,1	25,6	75,4	14.09	0,0754	0,081	0,445	529	431
8.7/15 (17.5) kV
3 x 35	7,2	16,4	53,2	5.71	0,524	0,110	0,188	172	154
3 x 50	8,5	17,7	56,2	6.48	0,387	0,105	0,209	205	181
3 x 70	10,0	19,2	59,8	7.56	0,268	0,100	0,234	253	220
3 x 95	11,1	20,3	62,6	8.685	0,193	0,097	0,252	307	262
3 x 120	12,8	22,0	66,8	9.76	0,153	0,093	0,279	352	298
3 x 150	15,0	24,2	71,8	11.375	0,124	0,089	0,315	397	332
3 x 240	18,1	27,3	80,0	14.97	0,0754	0,085	0,354	529	431
12/20 (24) kV
3 x 35	7,2	18,2	57,5	6.21	0,524	0,117	0,163	172	154
3 x 50	8,5	19,5	60,5	6.96	0,387	0,111	0,181	205	181
3 x 70	10,0	21,0	64,1	8.07	0,268	0,127	0,201	253	220
3 x 95	11,1	22,1	67,5	9.55	0,193	0,102	0,216	307	262
3 x 120	12,8	23,8	70,9	10.41	0,153	0,098	0,239	352	298
3 x 150	15,0	26,0	76,2	12.095	0,124	0,093	0,268	397	332
3 x 185	16,5	27,5	79,9	13.76	0,0991	0,091	0,288	453	374
3 x 240	18,1	29,1	83,9	15.75	0,0754	0,089	0,309	529	431
18/30 (36) kV
3 x 50	8,5	24,1	71,5	8.875	0,387	0,125	0,140	205	181
3 x 150	15,0	30,6	86,7	14.18	0,268	0,104	0,201	397	332
