RHZ1 Cable

RHZ1 Cable Description

RHZ1 uses Category 2 stranded copper or aluminum conductors (AL), cross-linked polyethylene (XLPE) insulation, copper wire and copper tape shielding, and a polyolefin (ST7/ST8) or (DMZ) outer sheath, with optional longitudinal water-blocking (OL) and double water-blocking (2OL) options. (S) cables conform to CPR standard Eca, and (AS) cables conform to Cca level standards.

RHZ1 cables are manufactured according to UNE 21-161-93 and HD 620-10E standards, with voltage specifications of 6/10kV, 8.7/15kV, 12/20kV, and 18/30kV. Suitable for connecting generator sets, factories, and process flows.

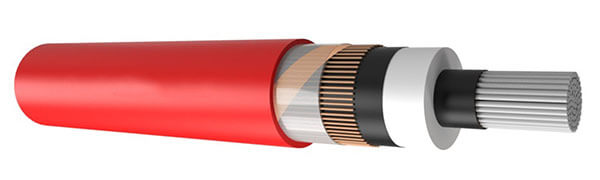

RHZ1 Cable Construction

R: XLPE (Cross-linked Polyethylene) Insulation
H: Semi-conducting screen and metallic screen added
Z1: Polyolefin compound
OL: Longitudinal watertightness over the insulation screen only
2OL: Longitudinal watertightness in conductor and over insulation screen
(S): Type 10E-4 (following HD620 Type 10E -4)
(AS): Type 10E-5 (following HD620 Type 10E -5)
AL: Aluminium Conductor

RHZ1 Cable Characteristics

Temperature Rating
-20°C to +60°C
Permissible Conductor Operating Temperature: +90°C
Permissible Short Circuit Temperature up to 5 sec: 250°C
Minimum Bending Radius
15 x overall diameter

RHZ1 Cable
RHZ1 Cable - 8.7/15 (17.5)KV
RHZ1 (S) Cable
RHZ1 (S) Cable - 8.7/15 (17.5)KV
RHZ1 (AS) Cable
RHZ1 (AS) Cable - 8.7/15 (17.5)KV
RHZ1-AL Cable
RHZ1-OL Cable
RHZ1-OL Cable - 8.7/15 (17.5)KV
RHZ1-OL (S) Cable
RHZ1-OL (S) Cable - 8.7/15 (17.5)KV
RHZ1-OL (AS) Cable
RHZ1-OL (AS) Cable - 8.7/15 (17.5)KV
RHZ1-OL-AL Cable
RHZ1-OL (S)-AL Cable
RHZ1-OL (AS)-AL Cable
RHZ1-2OL-AL Cable
RHZ1-2OL (S)-AL Cable
RHZ1-2OL (AS)-AL Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
6/10 (12)KV
1	500	35	26.5	61 x 3.29	0.5	0.4	3.4	2.96	34.7
1	630	35	30.2	61 x 3.80	0.5	0.4	3.4	2.96	38.9
12/20 (24)KV
1	500	35	26.5	61 x 3.29	0.5	0.4	5.5	4.85	38.7
1	630	35	30.2	61 x 3.80	0.5	0.4	5.5	4.85	42.9
18/30 (36)KV
1	500	35	26.5	61 x 3.29	0.5	0.4	8	7.1	43.5
1	630	35	30.2	61 x 3.80	0.5	0.4	8	7.1	47.7

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL SCREEN CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	500	35	4.5	2.4	43.8	5444
1	630	35	4.5	2.5	48.7	6869

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
6/10 (12)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	3.40	2.96	34.7
1	630	35	30.2	61 x 3.80	0.50	0.40	3.40	2.96	38.9
12/20 (24)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	5.50	4.85	38.7
1	630	35	30.2	61 x 3.80	0.50	0.40	5.50	4.85	42.9
18/30 (36)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	8.00	7.10	43.5
1	630	35	30.2	61 x 3.80	0.50	0.40	8.00	7.10	47.7

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN mm		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	500	26.5	4.5	37.2	50	41.3	46.1	5920	25.0	0.69
1	630	30.3	4.5	41.3	50	45.4	50.3	7290	31.5	0.75

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
6/10 (12)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	3.40	2.96	34.7
1	630	35	30.2	61 x 3.80	0.50	0.40	3.40	2.96	38.9
12/20 (24)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	5.50	4.85	38.7
1	630	35	30.2	61 x 3.80	0.50	0.40	5.50	4.85	42.9
18/30 (36)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	8.00	7.10	43.5
1	630	35	30.2	61 x 3.80	0.50	0.40	8.00	7.10	47.7

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN mm		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	500	26.5	4.5	37.2	50	41.3	46.1	5920	25	0.69
1	630	30.3	4.5	41.3	50	45.4	50.3	7290	31.5	0.75

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL METALLIC SCREEN CROSS SECTION mm²	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OUTER DIAMETER mm	NOMINAL WEIGHT kg/km
8.7/15 (17.5)KV
1	50	8	4.5	18.2	16	2.5	28.1	720
1	95	11.2	4.5	21.4	16	2.5	31.2	1100
1	150	14	4.5	24.2	16	2.7	34.1	1440
1	240	17.9	4.5	28.1	16	3	37.8	1780
1	400	23.1	4.5	33.3	16	3	42.8	2300
1	630	29.1	4.5	39.6	16	3	50.3	3190
12/20 (24)KV
1	50	8.0	5.5	20.2	16	2.5	28	850
1	95	11.2	5.5	23.4	16	2.7	32	1100
1	150	14.0	5.5	26.2	16	3.0	34	1400
1	240	17.9	5.5	30.1	16	3.0	38	1800
1	400	23.1	5.5	35.3	16	3.0	43	2500
1	630	29.1	5.5	41.6	16	3.0	50	3500
18/30 (36)KV
1	50	8.0	8.0	25.2	16	2.7	32	900
1	95	11.2	8.0	28.4	16	3.0	35	1200
1	150	14.0	8.0	31.2	16	3.0	38	1500
1	240	17.9	8.0	35.1	16	3.0	43	1900
1	400	23.1	8.0	40.3	16	3.0	48	2750
1	630	29.1	8.0	46.6	16	3.0	56	3500

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
6/10 (12)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	3.40	2.96	34.7
1	630	35	30.2	61 x 3.80	0.50	0.40	3.40	2.96	38.9
12/20 (24)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	5.50	4.85	38.7
1	630	35	30.2	61 x 3.80	0.50	0.40	5.50	4.85	42.9
18/30 (36)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	8.00	7.10	43.5
1	630	35	30.2	61 x 3.80	0.50	0.40	8.00	7.10	47.7

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL SCREEN CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	500	35	4.5	2.4	45.8	5505
1	630	35	4.5	2.5	50.7	6936

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
6/10 (12)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	3.40	2.96	34.7
1	630	35	30.2	61 x 3.80	0.50	0.40	3.40	2.96	38.9
12/20 (24)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	5.50	4.85	38.7
1	630	35	30.2	61 x 3.80	0.50	0.40	5.50	4.85	42.9
18/30 (36)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	8.00	7.10	43.5
1	630	35	30.2	61 x 3.80	0.50	0.40	8.00	7.10	47.7

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN mm		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	500	26.5	4.5	37.2	50	41.5	47.1	5810	25	0.71
1	630	30.3	4.5	41.3	50	45.6	51.3	7160	31.5	0.77

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²		NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
NO. OF CORES	Conductor	Screen	NOMINAL CONDUCTOR DIAMETER mm	NUMBER WIRES CONDUCTOR mm	INNER mm	OUTER mm	NOMINAL INSULATION THICKNESS mm	MINIMUM INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm
6/10 (12)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	3.40	2.96	34.7
1	630	35	30.2	61 x 3.80	0.50	0.40	3.40	2.96	38.9
12/20 (24)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	5.50	4.85	38.7
1	630	35	30.2	61 x 3.80	0.50	0.40	5.50	4.85	42.9
18/30 (36)KV
1	500	35	26.5	61 x 3.29	0.50	0.40	8.00	7.10	43.5
1	630	35	30.2	61 x 3.80	0.50	0.40	8.00	7.10	47.7

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	INSULATION mm		METALLIC SCREEN mm		NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	Nominal thickness	Nominal diameter over	Nominal cross section mm²	Nominal diameter over mm	NOMINAL OUTER DIAMETER OF CABLE mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE kN	MINIMUM BENDING RADIUS m
1	500	26.5	4.5	37.2	50	41.5	47.1	5810	25	0.71
1	630	30.3	4.5	41.3	50	45.6	51.3	7160	31.5	0.77

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL METALLIC SCREEN CROSS SECTION mm²	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OUTER DIAMETER mm	NOMINAL WEIGHT kg/km
8.7/15 (17.5)KV
1	50	8.0	4.5	18.2	16	2.5	28.1	720
1	95	11.2	4.5	21.4	16	2.5	31.2	1100
1	150	14.0	4.5	24.2	16	2.7	34.1	1440
1	240	17.9	4.5	28.1	16	3.0	37.8	1780
1	400	23.1	4.5	33.3	16	3.0	42.8	2300
1	630	29.1	4.5	39.6	16	3.0	50.3	3190
12/20 (24)KV
1	50	8.0	5.5	20.2	16	2.5	28.0	850
1	95	11.2	5.5	23.4	16	2.7	32.0	1100
1	150	14.0	5.5	26.2	16	3.0	34.0	1400
1	240	17.9	5.5	30.1	16	3.0	38.0	1800
1	400	23.1	5.5	35.3	16	3.0	43.0	2500
1	630	29.1	5.5	41.6	16	3.0	50.0	3500
18/30 (36)KV
1	50	8.0	8.0	25.2	16	2.7	32.0	900
1	95	11.2	8.0	28.4	16	3.0	35.0	1200
1	150	14.0	8.0	31.2	16	3.0	38.0	1500
1	240	17.9	8.0	35.1	16	3.0	43.0	1900
1	400	23.1	8.0	40.3	16	3.0	48.0	2750
1	630	29.1	8.0	46.6	16	3.0	56.0	3500

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL METALLIC SCREEN CROSS SECTION mm²	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OUTER DIAMETER mm	NOMINAL WEIGHT kg/km
8.7/15 (17.5)KV
1	50	8.0	4.5	18.2	16	2.5	28.1	720
1	95	11.2	4.5	21.4	16	2.5	31.2	1100
1	150	14.0	4.5	24.2	16	2.7	34.1	1440
1	240	17.9	4.5	28.1	16	3.0	37.8	1780
1	400	23.1	4.5	33.3	16	3.0	42.8	2300
1	630	29.1	4.5	39.6	16	3.0	50.3	3190
12/20 (24)KV
1	50	8.0	5.5	20.2	16	2.5	28.0	850
1	95	11.2	5.5	23.4	16	2.7	32.0	1100
1	150	14.0	5.5	26.2	16	3.0	34.0	1400
1	240	17.9	5.5	30.1	16	3.0	38.0	1800
1	400	23.1	5.5	35.3	16	3.0	43.0	2500
1	630	29.1	5.5	41.6	16	3.0	50.0	3500
18/30 (36)KV
1	50	8.0	8.0	25.2	16	2.7	32.0	900
1	95	11.2	8.0	28.4	16	3.0	35.0	1200
1	150	14.0	8.0	31.2	16	3.0	38.0	1500
1	240	17.9	8.0	35.1	16	3.0	43.0	1900
1	400	23.1	8.0	40.3	16	3.0	48.0	2750
1	630	29.1	8.0	46.6	16	3.0	56.0	3500

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL METALLIC SCREEN CROSS SECTION mm²	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OUTER DIAMETER mm	NOMINAL WEIGHT kg/km
8.7/15 (17.5)KV
1	50	8.0	4.5	18.2	16	2.5	28.1	720
1	95	11.2	4.5	21.4	16	2.5	31.2	1100
1	150	14.0	4.5	24.2	16	2.7	34.1	1440
1	240	17.9	4.5	28.1	16	3.0	37.8	1780
1	400	23.1	4.5	33.3	16	3.0	42.8	2300
1	630	29.1	4.5	39.6	16	3.0	50.3	3190
12/20 (24)KV
1	50	8.0	5.5	20.2	16	2.5	28.0	850
1	95	11.2	5.5	23.4	16	2.7	32.0	1100
1	150	14.0	5.5	26.2	16	3.0	34.0	1400
1	240	17.9	5.5	30.1	16	3.0	38.0	1800
1	400	23.1	5.5	35.3	16	3.0	43.0	2500
1	630	29.1	5.5	41.6	16	3.0	50.0	3500
18/30 (36)KV
1	50	8.0	8.0	25.2	16	2.7	32.0	900
1	95	11.2	8.0	28.4	16	3.0	35.0	1200
1	150	14.0	8.0	31.2	16	3.0	38.0	1500
1	240	17.9	8.0	35.1	16	3.0	43.0	1900
1	400	23.1	8.0	40.3	16	3.0	48.0	2750
1	630	29.1	8.0	46.6	16	3.0	56.0	3500

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL METALLIC SCREEN CROSS SECTION mm²	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OUTER DIAMETER mm	NOMINAL WEIGHT kg/km
8.7/15 (17.5)KV
1	50	8.0	4.5	18.2	16	2.5	28.1	720
1	95	11.2	4.5	21.4	16	2.5	31.2	1100
1	150	14.0	4.5	24.2	16	2.7	34.1	1440
1	240	17.9	4.5	28.1	16	3.0	37.8	1780
1	400	23.1	4.5	33.3	16	3.0	42.8	2300
1	630	29.1	4.5	39.6	16	3.0	50.3	3190
12/20 (24)KV
1	50	8.0	5.5	20.2	16	2.5	28.0	850
1	95	11.2	5.5	23.4	16	2.7	32.0	1100
1	150	14.0	5.5	26.2	16	3.0	34.0	1400
1	240	17.9	5.5	30.1	16	3.0	38.0	1800
1	400	23.1	5.5	35.3	16	3.0	43.0	2500
1	630	29.1	5.5	41.6	16	3.0	50.0	3500
18/30 (36)KV
1	50	8.0	8.0	25.2	16	2.7	32.0	900
1	95	11.2	8.0	28.4	16	3.0	35.0	1200
1	150	14.0	8.0	31.2	16	3.0	38.0	1500
1	240	17.9	8.0	35.1	16	3.0	43.0	1900
1	400	23.1	8.0	40.3	16	3.0	48.0	2750
1	630	29.1	8.0	46.6	16	3.0	56.0	3500

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL METALLIC SCREEN CROSS SECTION mm²	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OUTER DIAMETER mm	NOMINAL WEIGHT kg/km
8.7/15 (17.5)KV
1	50	8.0	4.5	18.2	16	2.5	28.1	720
1	95	11.2	4.5	21.4	16	2.5	31.2	1100
1	150	14.0	4.5	24.2	16	2.7	34.1	1440
1	240	17.9	4.5	28.1	16	3.0	37.8	1780
1	400	23.1	4.5	33.3	16	3.0	42.8	2300
1	630	29.1	4.5	39.6	16	3.0	50.3	3190
12/20 (24)KV
1	50	8.0	5.5	20.2	16	2.5	28.0	850
1	95	11.2	5.5	23.4	16	2.7	32.0	1100
1	150	14.0	5.5	26.2	16	3.0	34.0	1400
1	240	17.9	5.5	30.1	16	3.0	38.0	1800
1	400	23.1	5.5	35.3	16	3.0	43.0	2500
1	630	29.1	5.5	41.6	16	3.0	50.0	3500
18/30 (36)KV
1	50	8.0	8.0	25.2	16	2.7	32.0	900
1	95	11.2	8.0	28.4	16	3.0	35.0	1200
1	150	14.0	8.0	31.2	16	3.0	38.0	1500
1	240	17.9	8.0	35.1	16	3.0	43.0	1900
1	400	23.1	8.0	40.3	16	3.0	48.0	2750
1	630	29.1	8.0	46.6	16	3.0	56.0	3500

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CONDUCTOR DIAMETER mm	NOMINAL INSULATION THICKNESS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL METALLIC SCREEN CROSS SECTION mm²	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OUTER DIAMETER mm	NOMINAL WEIGHT kg/km
8.7/15 (17.5)KV
1	50	8.0	4.5	18.2	16	2.5	28.1	720
1	95	11.2	4.5	21.4	16	2.5	31.2	1100
1	150	14.0	4.5	24.2	16	2.7	34.1	1440
1	240	17.9	4.5	28.1	16	3.0	37.8	1780
1	400	23.1	4.5	33.3	16	3.0	42.8	2300
1	630	29.1	4.5	39.6	16	3.0	50.3	3190
12/20 (24)KV
1	50	8.0	5.5	20.2	16	2.5	28.0	850
1	95	11.2	5.5	23.4	16	2.7	32.0	1100
1	150	14.0	5.5	26.2	16	3.0	34.0	1400
1	240	17.9	5.5	30.1	16	3.0	38.0	1800
1	400	23.1	5.5	35.3	16	3.0	43.0	2500
1	630	29.1	5.5	41.6	16	3.0	50.0	3500
18/30 (36)KV
1	50	8.0	8.0	25.2	16	2.7	32.0	900
1	95	11.2	8.0	28.4	16	3.0	35.0	1200
1	150	14.0	8.0	31.2	16	3.0	38.0	1500
1	240	17.9	8.0	35.1	16	3.0	43.0	1900
1	400	23.1	8.0	40.3	16	3.0	48.0	2750
1	630	29.1	8.0	46.6	16	3.0	56.0	3500
