TSLF Cable Description
TSLF cables feature a Category 2 stranded aluminum conductor, cross-linked polyethylene (XLPE) insulation, a metallic shield, and a polyethylene (PE) outer sheath. Above and below the metallic shield are expansion tape and polyethylene aluminum foil layers, providing longitudinal and radial waterproofing. This makes the cable suitable for environments where cable conduits are susceptible to freshwater flooding and damp soil.

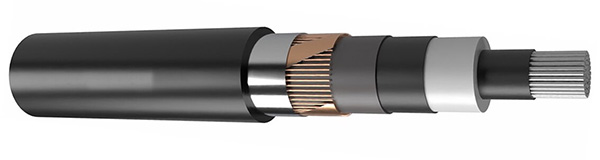

TSLF Cable Construction
- Conductor
- Class 2 stranded Aluminium
- Insulation
- XLPE (Cross-linked polyethylene)
- Water Blocking
- Longitudinal water swellable tape above and below the metallic screen
- Screen
- Copper wires and Polyethylene laminated aluminium foil (CAS). (radial waterblocking)
- Outer Sheath
- PE (Polyethylene)
TSLF Cable Characteristics
- Voltage Rating
- 18/30(36) kV
- Temperature Rating
- -50ºC to +90ºC
- Minimum cable temperature during handling: -20ºC
- Minimum cable temperature during transport: -40ºC
- Maximum conductor temperature short circuit max. 5 s: +250ºC
TSLF Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL DIAMETER OVER INSULATION WITHOUT SCREEN mm | NOMINAL INSULATION THICKNESS mm | NOMINAL SIZE OF METAL SCREEN mm² | NOMINAL THICKNESS OF ALUMINIUM LAMINATED FOIL mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 95 | 11.1 | 26.8 | 8 | 25 | 0.2 | 2.1 | 36 | 1164 |
| 1 | 120 | 12.6 | 28.2 | 8 | 35 | 0.2 | 2.1 | 38 | 1383 |
| 1 | 150 | 13.9 | 29.5 | 8 | 35 | 0.2 | 2.2 | 39 | 1489 |
| 1 | 240 | 18 | 33.6 | 8 | 35 | 0.2 | 2.3 | 44 | 1892 |
| 1 | 300 | 19.8 | 35.4 | 8 | 35 | 0.2 | 2.4 | 45 | 2160 |
| 1 | 400 | 22.4 | 38.1 | 8 | 35 | 0.2 | 2.5 | 48 | 2403 |
| 1 | 630 | 29.3 | 45 | 8 | 35 | 0.2 | 2.7 | 55 | 3433 |
| 1 | 630 | 29.3 | 45.2 | 8 | 50 | 0.2 | 2.7 | 56 | 3574 |
| 1 | 800 | 33.2 | 49.1 | 8 | 50 | 0.2 | 2.9 | 60 | 4252 |
