XHIOE and LXHIOE Cable Description
These cables are available in copper core (XHIOE) and aluminum core (LXHIOE) versions, with multiple voltage specifications. They feature a robust and durable polyethylene sheath suitable for outdoor installation. The cross-linked polyethylene insulation allows for a maximum operating temperature of +90°C. Internal copper wire shielding reduces localized electromagnetic interference.
Additional waterproof layers—”be” (single layer) or “cbe” (double layer) waterproof tape/yarn—are available. Alternatively, a PVC sheath (models XHIOV and LXHIOV) or copper tape shielding (models XHIE and LXHIE) can be used instead of copper wire.

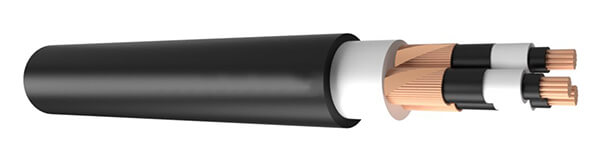

XHIOE and LXHIOE Cable Construction
- Conductor
- Stranded copper/aluminium conductor
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Screen
- Copper wires
- Outer Sheath
- PE (Polyethylene)
XHIOE and LXHIOE Cable Characteristics
- Voltage Rating
- 3.6/6 (7.2)kV,
- 6/10 (12)kV,
- 8.7/15 (17.5)kV,
- 12/20 (24)kV,
- 18/30 (36)kV
- Temperature Range
- Fixed: -20°C to +90°C
- Minimum Bending Radius
- 15 x Overall diameter
- XHIOE Cable
- LXHIOE Cable
| NO. OF CORES | CONDUCTOR NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 3.6/6 (7.2)kV | ||||
| 1 | 25 | 13.0 | 20.0 | 655 |
| 1 | 35 | 14.0 | 21.0 | 770 |
| 1 | 50 | 15.0 | 22.5 | 905 |
| 1 | 70 | 16.5 | 24.0 | 1120 |
| 1 | 95 | 18.5 | 26.0 | 1400 |
| 1 | 120 | 20.0 | 28.0 | 1675 |
| 1 | 150 | 21.0 | 29.0 | 1930 |
| 1 | 185 | 22.5 | 30.5 | 2305 |
| 1 | 240 | 25.5 | 33.5 | 2885 |
| 1 | 300 | 28.5 | 37.0 | 3555 |
| 1 | 400 | 32.0 | 40.5 | 4505 |
| 1 | 500 | 35.5 | 44.0 | 5480 |
| 1 | 630 | 41.0 | 47.5 | 7110 |
| 3 | 25 | 13.0 | 39.5 | 2395 |
| 3 | 35 | 14.0 | 42.0 | 2770 |
| 3 | 50 | 15.0 | 44.5 | 3270 |
| 3 | 70 | 16.5 | 48.5 | 4085 |
| 3 | 95 | 18.5 | 52.5 | 5005 |
| 3 | 120 | 20.0 | 56.5 | 5910 |
| 3 | 150 | 21.0 | 59.0 | 6825 |
| 3 | 185 | 22.5 | 62.0 | 8055 |
| 3 | 240 | 25.5 | 69.0 | 10180 |
| 3 | 300 | 28.5 | 76.0 | 12490 |
| 3 | 400 | 32.0 | 84.0 | 15820 |
| 6/10 (12)kV | ||||
| 1 | 25 | 15.0 | 22.0 | 730 |
| 1 | 35 | 16.0 | 23.0 | 835 |
| 1 | 50 | 17.0 | 24.5 | 985 |
| 1 | 70 | 18.5 | 26.0 | 1210 |
| 1 | 95 | 20.5 | 28.0 | 1500 |
| 1 | 120 | 22.0 | 30.0 | 1760 |
| 1 | 150 | 23.0 | 31.0 | 2040 |
| 1 | 185 | 24.5 | 32.5 | 2405 |
| 1 | 240 | 27.0 | 35.5 | 2990 |
| 1 | 300 | 30.0 | 38.0 | 3640 |
| 1 | 400 | 33.0 | 41.5 | 4580 |
| 1 | 500 | 36.0 | 44.5 | 5530 |
| 1 | 630 | 41.5 | 48.0 | 7140 |
| 3 | 25 | 15.0 | 44.0 | 2715 |
| 3 | 35 | 16.0 | 46.5 | 3115 |
| 3 | 50 | 17.0 | 49.0 | 3640 |
| 3 | 70 | 18.5 | 53.0 | 4480 |
| 3 | 95 | 20.5 | 57.0 | 5460 |
| 3 | 120 | 22.0 | 61.0 | 6395 |
| 3 | 150 | 23.0 | 63.5 | 7335 |
| 3 | 185 | 24.5 | 66.5 | 8590 |
| 3 | 240 | 27.0 | 72.5 | 10605 |
| 3 | 300 | 30.0 | 79.0 | 12880 |
| 3 | 400 | 33.0 | 85.5 | 16050 |
| 8.7/15 (17.5)kV | ||||
| 1 | 25 | 17.0 | 24.5 | 820 |
| 1 | 35 | 18.0 | 25.5 | 930 |
| 1 | 50 | 19.0 | 26.5 | 1075 |
| 1 | 70 | 21.0 | 28.5 | 1320 |
| 1 | 95 | 22.5 | 30.5 | 1595 |
| 1 | 120 | 24.5 | 32.0 | 1880 |
| 1 | 150 | 25.5 | 33.5 | 2145 |
| 1 | 185 | 26.5 | 35.0 | 2535 |
| 1 | 240 | 29.5 | 37.5 | 3130 |
| 1 | 300 | 32.0 | 40.5 | 3775 |
| 1 | 400 | 35.0 | 43.5 | 4720 |
| 1 | 500 | 38.0 | 47.0 | 5685 |
| 1 | 630 | 44.0 | 50.5 | 7315 |
| 3 | 25 | 17.0 | 49.0 | 3125 |
| 3 | 35 | 18.0 | 51.5 | 3540 |
| 3 | 50 | 19.0 | 54.5 | 4135 |
| 3 | 70 | 21.0 | 58.0 | 4965 |
| 3 | 95 | 22.5 | 62.0 | 5950 |
| 3 | 120 | 24.5 | 66.0 | 6915 |
| 3 | 150 | 25.5 | 68.5 | 7940 |
| 3 | 185 | 26.5 | 71.5 | 9160 |
| 3 | 240 | 29.5 | 78.0 | 11265 |
| 3 | 300 | 32.0 | 84.0 | 13595 |
| 3 | 400 | 35.0 | 90.5 | 16825 |
| 12/20 (24)kV | ||||
| 1 | 35 | 20.0 | 27.5 | 1025 |
| 1 | 50 | 21.0 | 29.0 | 1170 |
| 1 | 70 | 23.0 | 31.0 | 1425 |
| 1 | 95 | 24.5 | 32.5 | 1705 |
| 1 | 120 | 26.5 | 34.5 | 2000 |
| 1 | 150 | 27.5 | 35.5 | 2270 |
| 1 | 185 | 28.5 | 37.0 | 2660 |
| 1 | 240 | 31.5 | 39.5 | 3250 |
| 1 | 300 | 34.0 | 42.5 | 3920 |
| 1 | 400 | 37.0 | 45.5 | 4880 |
| 1 | 500 | 40.0 | 49.0 | 5855 |
| 1 | 630 | 46.0 | 52.5 | 7510 |
| 3 | 35 | 20.0 | 56.0 | 3950 |
| 3 | 50 | 21.0 | 59.0 | 4525 |
| 3 | 70 | 23.0 | 63.0 | 5470 |
| 3 | 95 | 24.5 | 67.0 | 6485 |
| 3 | 120 | 26.5 | 70.5 | 7480 |
| 3 | 150 | 27.5 | 73.5 | 8465 |
| 3 | 185 | 28.5 | 76.5 | 9775 |
| 3 | 240 | 31.5 | 82.5 | 11930 |
| 3 | 300 | 34.0 | 88.5 | 14270 |
| 3 | 400 | 37.0 | 95.5 | 17600 |
| 18/30 (36)kV | ||||
| 1 | 50 | 26.0 | 34.5 | 1445 |
| 1 | 70 | 28.0 | 36.0 | 1695 |
| 1 | 95 | 29.5 | 38.0 | 2015 |
| 1 | 120 | 31.5 | 39.5 | 2300 |
| 1 | 150 | 32.5 | 41.0 | 2600 |
| 1 | 185 | 33.5 | 42.0 | 2985 |
| 1 | 240 | 36.5 | 45.0 | 3620 |
| 1 | 300 | 39.0 | 48.0 | 4315 |
| 1 | 400 | 42.0 | 51.0 | 5305 |
| 1 | 500 | 45.0 | 54.5 | 6310 |
| 1 | 630 | 51.0 | 58.0 | 8010 |
| 3 | 50 | 26.0 | 70.5 | 5800 |
| 3 | 70 | 28.0 | 74.5 | 6795 |
| 3 | 95 | 29.5 | 78.5 | 7985 |
| 3 | 120 | 31.5 | 82.5 | 9060 |
| 3 | 150 | 32.5 | 85.0 | 10030 |
| 3 | 185 | 33.5 | 88.0 | 11475 |
| 3 | 240 | 36.5 | 94.0 | 13630 |
| 3 | 300 | 39.0 | 100.0 | 16145 |
| 3 | 400 | 42.0 | 107.0 | 19650 |
| NO. OF CORES | CONDUCTOR NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 3.6/6 (7.2)kV | ||||
| 1 | 25 | 12.5 | 20.0 | 505 |
| 1 | 35 | 13.5 | 21.0 | 560 |
| 1 | 50 | 15.0 | 22.0 | 615 |
| 1 | 70 | 16.5 | 24.0 | 705 |
| 1 | 95 | 18.0 | 25.5 | 830 |
| 1 | 120 | 20.0 | 27.5 | 950 |
| 1 | 150 | 21.0 | 29.0 | 1055 |
| 1 | 185 | 22.5 | 30.5 | 1205 |
| 1 | 240 | 25.5 | 33.5 | 1425 |
| 1 | 300 | 28.5 | 37.0 | 1695 |
| 1 | 400 | 32.0 | 40.0 | 2055 |
| 1 | 500 | 35.0 | 43.5 | 2450 |
| 1 | 630 | 40.0 | 49.0 | 3040 |
| 3 | 25 | 12.5 | 39.0 | 1935 |
| 3 | 35 | 13.5 | 41.5 | 2140 |
| 3 | 50 | 15.0 | 44.0 | 2395 |
| 3 | 70 | 16.5 | 48.0 | 2785 |
| 3 | 95 | 18.0 | 52.0 | 3270 |
| 3 | 120 | 20.0 | 56.0 | 3725 |
| 3 | 150 | 21.0 | 59.0 | 4170 |
| 3 | 185 | 22.5 | 62.5 | 4725 |
| 3 | 240 | 25.5 | 68.5 | 5750 |
| 3 | 300 | 28.5 | 76.0 | 6860 |
| 3 | 400 | 32.0 | 83.5 | 8390 |
| 6/10 (12)kV | ||||
| 1 | 25 | 14.5 | 22.0 | 575 |
| 1 | 35 | 15.5 | 23.0 | 630 |
| 1 | 50 | 17.0 | 24.5 | 700 |
| 1 | 70 | 18.5 | 26.0 | 795 |
| 1 | 95 | 20.0 | 28.0 | 925 |
| 1 | 120 | 22.0 | 29.5 | 1040 |
| 1 | 150 | 23.0 | 31.0 | 1165 |
| 1 | 185 | 24.5 | 32.5 | 1305 |
| 1 | 240 | 27.0 | 35.0 | 1525 |
| 1 | 300 | 30.0 | 38.0 | 1785 |
| 1 | 400 | 32.5 | 41.0 | 2125 |
| 1 | 500 | 35.5 | 44.5 | 2500 |
| 1 | 630 | 40.5 | 49.0 | 3070 |
| 3 | 25 | 14.5 | 43.5 | 2255 |
| 3 | 35 | 15.5 | 46.0 | 2480 |
| 3 | 50 | 17.0 | 49.0 | 2765 |
| 3 | 70 | 18.5 | 52.5 | 3175 |
| 3 | 95 | 20.0 | 56.5 | 3720 |
| 3 | 120 | 22.0 | 60.5 | 4210 |
| 3 | 150 | 23.0 | 63.5 | 4680 |
| 3 | 185 | 24.5 | 67.0 | 5260 |
| 3 | 240 | 27.0 | 72.0 | 6170 |
| 3 | 300 | 30.0 | 79.0 | 7255 |
| 3 | 400 | 32.5 | 85.5 | 8620 |
| 8.7/15 (17.5)kV | ||||
| 1 | 25 | 17.0 | 24.5 | 665 |
| 1 | 35 | 18.0 | 25.5 | 720 |
| 1 | 50 | 19.0 | 26.5 | 785 |
| 1 | 70 | 20.5 | 28.5 | 900 |
| 1 | 95 | 22.5 | 30.0 | 1020 |
| 1 | 120 | 24.0 | 32.0 | 1160 |
| 1 | 150 | 25.5 | 33.5 | 1270 |
| 1 | 185 | 27.0 | 35.0 | 1435 |
| 1 | 240 | 29.0 | 37.5 | 1665 |
| 1 | 300 | 32.0 | 40.5 | 1915 |
| 1 | 400 | 35.0 | 43.5 | 2270 |
| 1 | 500 | 38.0 | 46.5 | 2655 |
| 1 | 630 | 42.5 | 51.5 | 3240 |
| 3 | 25 | 17.0 | 49.0 | 2665 |
| 3 | 35 | 18.0 | 51.5 | 2905 |
| 3 | 50 | 19.0 | 54.0 | 3210 |
| 3 | 70 | 20.5 | 58.0 | 3650 |
| 3 | 95 | 22.5 | 61.5 | 4210 |
| 3 | 120 | 24.0 | 65.5 | 4725 |
| 3 | 150 | 25.5 | 68.5 | 5285 |
| 3 | 185 | 27.0 | 72.0 | 5835 |
| 3 | 240 | 29.0 | 77.5 | 6830 |
| 3 | 300 | 32.0 | 84.0 | 7965 |
| 3 | 400 | 35.0 | 90.5 | 9390 |
| 12/20 (24)kV | ||||
| 1 | 35 | 20.0 | 27.5 | 815 |
| 1 | 50 | 21.0 | 28.5 | 880 |
| 1 | 70 | 22.5 | 30.5 | 1005 |
| 1 | 95 | 24.5 | 32.5 | 1130 |
| 1 | 120 | 26.0 | 34.0 | 1275 |
| 1 | 150 | 27.5 | 35.5 | 1395 |
| 1 | 185 | 29.0 | 37.0 | 1565 |
| 1 | 240 | 31.0 | 39.5 | 1785 |
| 1 | 300 | 34.0 | 42.5 | 2065 |
| 1 | 400 | 37.0 | 45.5 | 2425 |
| 1 | 500 | 40.0 | 48.5 | 2825 |
| 1 | 630 | 44.5 | 53.5 | 3425 |
| 3 | 35 | 20.0 | 56.0 | 3315 |
| 3 | 50 | 21.0 | 58.5 | 3645 |
| 3 | 70 | 22.5 | 62.5 | 4145 |
| 3 | 95 | 24.5 | 66.5 | 4740 |
| 3 | 120 | 26.0 | 70.5 | 5285 |
| 3 | 150 | 27.5 | 73.5 | 5810 |
| 3 | 185 | 29.0 | 76.5 | 6450 |
| 3 | 240 | 31.0 | 82.0 | 7495 |
| 3 | 300 | 34.0 | 88.5 | 8640 |
| 3 | 400 | 37.0 | 95.0 | 10165 |
| 18/30 (36)kV | ||||
| 1 | 50 | 26.0 | 34.0 | 1155 |
| 1 | 70 | 27.5 | 36.0 | 1275 |
| 1 | 95 | 29.5 | 37.5 | 1435 |
| 1 | 120 | 31.0 | 39.5 | 1575 |
| 1 | 150 | 32.5 | 41.0 | 1725 |
| 1 | 185 | 34.0 | 42.5 | 1890 |
| 1 | 240 | 36.0 | 45.0 | 2150 |
| 1 | 300 | 39.0 | 48.0 | 2460 |
| 1 | 400 | 42.0 | 51.0 | 2850 |
| 1 | 500 | 45.0 | 54.0 | 3275 |
| 1 | 630 | 49.5 | 59.0 | 3920 |
| 3 | 50 | 26.0 | 70.0 | 4915 |
| 3 | 70 | 27.5 | 74.0 | 5520 |
| 3 | 95 | 29.5 | 78.0 | - |
| 3 | 120 | 31.0 | 82.0 | - |
| 3 | 150 | 32.5 | 85.0 | - |
| 3 | 185 | 34.0 | 88.5 | - |
| 3 | 240 | 36.0 | 93.5 | - |
| 3 | 300 | 39.0 | 100.0 | - |
| 3 | 400 | 42.0 | 106.5 | - |
