XHIORV and LXHIORV Cable Description

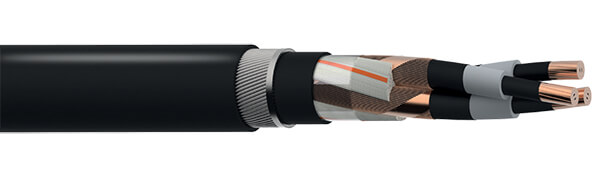

XHIORV copper core cables and LXHIORV aluminum core cables are three-core cables with cross-linked polyethylene (XLPE) insulation, copper wire shielding, polyvinyl chloride (PVC) inner and outer sheaths, and steel wire armor (SWA). Their single-core models XHIO1RV and LXHIO1RV use aluminum wire armor (AWA).
These cables offer strong mechanical protection and flame retardant/UV resistant properties, making them suitable for indoor and outdoor fixed installations as well as direct burial.
XHIORV and LXHIORV Cable Construction
- Conductor
- Class 2 stranded Copper/Aluminium
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Screen
- Copper wire screen
- Inner Sheath
- PVC (Polyvinyl Chloride)
- Armour
- SWA (Galvanized Steel Wire Armoured)
- Outer Sheath
- PVC (Polyvinyl Chloride)
XHIORV and LXHIORV Cable Characteristics
- Voltage Rating
- 3.6/6 (7.2)kV,
- 6/10 (12)kV,
- 8.7/15 (17.5)kV,
- 12/20 (24)kV,
- 18/30 (36)kV
- Temperature Rating
- Conductor maximum operating temperature: 90°C
- Maximum short-circuit temperature: 250°C
- Minimum Bending Radius
- During installation: 15 x overall diameter
- After installation: 10 x overall diameter
- XHIORV Cable
- LXHIORV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Over Insulation | Overall | |||
| 3.6/6 (7.2)kV | ||||
| 3 | 25 | 13 | 44.5 | 3220 |
| 3 | 35 | 14 | 47 | 3775 |
| 3 | 50 | 15 | 49.5 | 4340 |
| 3 | 70 | 16.5 | 54 | 5280 |
| 3 | 95 | 18.5 | 58 | 6325 |
| 3 | 120 | 20 | 61.5 | 7290 |
| 3 | 150 | 21 | 64.5 | 8300 |
| 3 | 185 | 22.5 | 67.5 | 9640 |
| 3 | 240 | 25.5 | 75 | 11985 |
| 3 | 300 | 28.5 | 82 | 14475 |
| 6/10 (12)kV | ||||
| 3 | 25 | 15 | 49 | 3775 |
| 3 | 35 | 16 | 51.5 | 4255 |
| 3 | 50 | 17 | 54.5 | 4850 |
| 3 | 70 | 18.5 | 58.5 | 5815 |
| 3 | 95 | 20.5 | 62.5 | 6830 |
| 3 | 120 | 22 | 66.5 | 7885 |
| 3 | 150 | 23 | 69.5 | 8960 |
| 3 | 185 | 24.5 | 72.5 | 10290 |
| 3 | 240 | 27 | 78.5 | 12455 |
| 3 | 300 | 30 | 85 | 14935 |
| 8.7/15 (17.5)kV | ||||
| 3 | 25 | 17 | 54.5 | 4335 |
| 3 | 35 | 18 | 57 | 4835 |
| 3 | 50 | 19 | 59.5 | 5470 |
| 3 | 70 | 21 | 63.5 | 6425 |
| 3 | 95 | 22.5 | 67.5 | 7505 |
| 3 | 120 | 24.5 | 71.5 | 8600 |
| 3 | 150 | 25.5 | 74.5 | 9730 |
| 3 | 185 | 26.5 | 77.5 | 10985 |
| 3 | 240 | 29.5 | 83.5 | 13290 |
| 12/20 (24)kV | ||||
| 3 | 35 | 20 | 61.5 | 5325 |
| 3 | 50 | 21 | 64.5 | 6000 |
| 3 | 70 | 23 | 68.5 | 7045 |
| 3 | 95 | 24.5 | 72.5 | 8190 |
| 3 | 120 | 26.5 | 76.5 | 9280 |
| 3 | 150 | 27.5 | 79 | 10330 |
| 3 | 185 | 28.5 | 82 | 11780 |
| 18/30 (36)kV | ||||
| 3 | 50 | 26 | 76 | 7595 |
| 3 | 70 | 28 | 80.5 | 8730 |
| 3 | 95 | 29.5 | 86 | 10845 |
| 3 | 120 | 31.5 | 90 | 12105 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Over Insulation | Overall | |||
| 3.6/6 (7.2)kV | ||||
| 3 | 25 | 12.5 | 44 | 3 320 |
| 3 | 35 | 13.5 | 46.5 | 3 775 |
| 3 | 50 | 15 | 49.5 | 4 340 |
| 3 | 70 | 16.5 | 53.5 | 5 280 |
| 3 | 95 | 18 | 57.5 | 6 325 |
| 3 | 120 | 20 | 61 | 7 290 |
| 3 | 150 | 21 | 64.5 | 8 300 |
| 3 | 185 | 22.5 | 68 | 9 640 |
| 3 | 240 | 25.5 | 74.5 | 11 985 |
| 3 | 300 | 28.5 | 82 | 14 475 |
| 6/10 (12)kV | ||||
| 3 | 25 | 14.5 | 49 | 3310 |
| 3 | 35 | 15.5 | 51.5 | 3620 |
| 3 | 50 | 17 | 54 | 3965 |
| 3 | 70 | 18.5 | 58 | 4500 |
| 3 | 95 | 20 | 62 | 5075 |
| 3 | 120 | 22 | 66 | 5690 |
| 3 | 150 | 23 | 69.5 | 6305 |
| 3 | 185 | 24.5 | 72.5 | 6975 |
| 3 | 240 | 27 | 78 | 8015 |
| 3 | 300 | 30 | 85 | 9305 |
| 8.7/15 (17.5)kV | ||||
| 3 | 25 | 17 | 54.5 | 3870 |
| 3 | 35 | 18 | 57 | 4200 |
| 3 | 50 | 19 | 59 | 4530 |
| 3 | 70 | 20.5 | 63.5 | 5100 |
| 3 | 95 | 22.5 | 67 | 5750 |
| 3 | 120 | 24 | 71.5 | 6405 |
| 3 | 150 | 25.5 | 74.5 | 7075 |
| 3 | 185 | 27 | 77.5 | 7670 |
| 3 | 240 | 29 | 83.5 | 8845 |
| 12/20 (24)kV | ||||
| 3 | 35 | 20 | 61 | 4685 |
| 3 | 50 | 21 | 64 | 5110 |
| 3 | 70 | 22.5 | 68 | 5710 |
| 3 | 95 | 24.5 | 72 | 6435 |
| 3 | 120 | 26 | 76 | 7080 |
| 3 | 150 | 27.5 | 79 | 7680 |
| 3 | 185 | 29 | 82.5 | 8445 |
| 18/30 (36)kV | ||||
| 3 | 50 | 26 | 76 | 6700 |
| 3 | 70 | 27.5 | 80 | 7445 |
| 3 | 95 | 29.5 | 85.5 | 9015 |
| 3 | 120 | 31 | 89.5 | 9895 |
