XHIOV and LXHIOV Cable Description

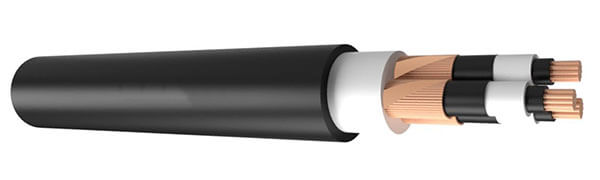

These cables are manufactured according to the international medium-voltage cable standards IEC 60502-2 and HD620, but are named in Portuguese and are available in multiple voltage ratings. They feature cross-linked polyethylene (XLPE) insulation, a polyvinyl chloride (PVC) outer sheath, and copper wire shielding. The core conductors are either copper (XHIOV) or aluminum (LXHIOV).
XHIOV and LXHIOV cables are also available with copper tape shielding (XHIV) and aluminum or steel wire armor (XHIORV) for additional mechanical protection. The product line also includes equivalent-gauge cables with PE sheaths, such as XHIOE and LXHIOE.
XHIOV and LXHIOV Cable Construction
- Conductor
- Class 2 stranded Copper/Aluminium
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Screen
- Copper wires
- Outer Sheath
- PVC (Polyvinyl Chloride)
XHIOV and LXHIOV Cable Characteristics
- Voltage Rating
- 3.6/6 (7.2)kV,
- 6/10 (12)kV,
- 8.7/15 (17.5)kV,
- 12/20 (24)kV,
- 18/30 (36)kV
- Temperature Range
- Fixed: -20°C to +90°C
- Minimum Bending Radius
- 15 x overall diameter
- XHIOV Cable
- LXHIOV Cable
| NO. OF CORES | CONDUCTOR NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 3.6/6 (7.2)kV | ||||
| 1 | 25 | 13 | 20 | 655 |
| 1 | 35 | 14 | 21 | 770 |
| 1 | 50 | 15 | 22.5 | 905 |
| 1 | 70 | 16.5 | 24 | 1120 |
| 1 | 95 | 18.5 | 26 | 1400 |
| 1 | 120 | 20 | 28 | 1675 |
| 1 | 150 | 21 | 29 | 1930 |
| 1 | 185 | 22.5 | 30.5 | 2305 |
| 1 | 240 | 25.5 | 33.5 | 2885 |
| 1 | 300 | 28.5 | 37 | 3555 |
| 1 | 400 | 32 | 40.5 | 4505 |
| 1 | 500 | 35.5 | 44 | 5480 |
| 1 | 630 | 41 | 47.5 | 7110 |
| 3 | 25 | 13 | 39.5 | 2395 |
| 3 | 35 | 14 | 42 | 2770 |
| 3 | 50 | 15 | 44.5 | 3270 |
| 3 | 70 | 16.5 | 48.5 | 4085 |
| 3 | 95 | 18.5 | 52.5 | 5005 |
| 3 | 120 | 20 | 56.5 | 5910 |
| 3 | 150 | 21 | 59 | 6825 |
| 3 | 185 | 22.5 | 62 | 8055 |
| 3 | 240 | 25.5 | 69 | 10180 |
| 3 | 300 | 28.5 | 76 | 12490 |
| 3 | 400 | 32 | 84 | 15820 |
| 6/10 (12)kV | ||||
| 1 | 25 | 15 | 22 | 730 |
| 1 | 35 | 16 | 23 | 835 |
| 1 | 50 | 17 | 24.5 | 985 |
| 1 | 70 | 18.5 | 26 | 1210 |
| 1 | 95 | 20.5 | 28 | 1500 |
| 1 | 120 | 22 | 30 | 1760 |
| 1 | 150 | 23 | 31 | 2040 |
| 1 | 185 | 24.5 | 32.5 | 2405 |
| 1 | 240 | 27 | 35.5 | 2990 |
| 1 | 300 | 30 | 38 | 3640 |
| 1 | 400 | 33 | 41.5 | 4580 |
| 1 | 500 | 36 | 44.5 | 5530 |
| 1 | 630 | 41.5 | 48 | 7140 |
| 3 | 25 | 15 | 44 | 2715 |
| 3 | 35 | 16 | 46.5 | 3115 |
| 3 | 50 | 17 | 49 | 3640 |
| 3 | 70 | 18.5 | 53 | 4480 |
| 3 | 95 | 20.5 | 57 | 5460 |
| 3 | 120 | 22 | 61 | 6395 |
| 3 | 150 | 23 | 63.5 | 7335 |
| 3 | 185 | 24.5 | 66.5 | 8590 |
| 3 | 240 | 27 | 72.5 | 10605 |
| 3 | 300 | 30 | 79 | 12880 |
| 3 | 400 | 33 | 85.5 | 16050 |
| 8.7/15 (17.5)kV | ||||
| 1 | 25 | 17 | 24.5 | 820 |
| 1 | 35 | 18 | 25.5 | 930 |
| 1 | 50 | 19 | 26.5 | 1075 |
| 1 | 70 | 21 | 28.5 | 1320 |
| 1 | 95 | 22.5 | 30.5 | 1595 |
| 1 | 120 | 24.5 | 32 | 1880 |
| 1 | 150 | 25.5 | 33.5 | 2145 |
| 1 | 185 | 26.5 | 35 | 2535 |
| 1 | 240 | 29.5 | 37.5 | 3130 |
| 1 | 300 | 32 | 40.5 | 3775 |
| 1 | 400 | 35 | 43.5 | 4720 |
| 1 | 500 | 38 | 47 | 5685 |
| 1 | 630 | 44 | 50.5 | 7315 |
| 3 | 25 | 17 | 49 | 3125 |
| 3 | 35 | 18 | 51.5 | 3540 |
| 3 | 50 | 19 | 54.5 | 4135 |
| 3 | 70 | 21 | 58 | 4965 |
| 3 | 95 | 22.5 | 62 | 5 950 |
| 3 | 120 | 24.5 | 66 | 6 915 |
| 3 | 150 | 25.5 | 68.5 | 7 940 |
| 3 | 185 | 26.5 | 71.5 | 9 160 |
| 3 | 240 | 29.5 | 78 | 11 265 |
| 3 | 300 | 32 | 84 | 13 595 |
| 3 | 400 | 35 | 90.5 | 16 825 |
| 12/20 (24)kV | ||||
| 1 | 35 | 20 | 27.5 | 1025 |
| 1 | 50 | 21 | 29 | 1170 |
| 1 | 70 | 23 | 31 | 1425 |
| 1 | 95 | 24.5 | 32.5 | 1705 |
| 1 | 120 | 26.5 | 34.5 | 2000 |
| 1 | 150 | 27.5 | 35.5 | 2270 |
| 1 | 185 | 28.5 | 37 | 2660 |
| 1 | 240 | 31.5 | 39.5 | 3250 |
| 1 | 300 | 34 | 42.5 | 3920 |
| 1 | 400 | 37 | 45.5 | 4880 |
| 1 | 500 | 40 | 49 | 5855 |
| 1 | 630 | 46 | 52.5 | 7510 |
| 3 | 35 | 20 | 56 | 3950 |
| 3 | 50 | 21 | 59 | 4525 |
| 3 | 70 | 23 | 63 | 5470 |
| 3 | 95 | 24.5 | 67 | 6485 |
| 3 | 120 | 26.5 | 70.5 | 7480 |
| 3 | 150 | 27.5 | 73.5 | 8465 |
| 3 | 185 | 28.5 | 76.5 | 9775 |
| 3 | 240 | 31.5 | 82.5 | 11930 |
| 3 | 300 | 34 | 88.5 | 14270 |
| 3 | 400 | 37 | 95.5 | 17600 |
| 18/30 (36)kV | ||||
| 1 | 50 | 26 | 34.5 | 1445 |
| 1 | 70 | 28 | 36 | 1695 |
| 1 | 95 | 29.5 | 38 | 2015 |
| 1 | 120 | 31.5 | 39.5 | 2300 |
| 1 | 150 | 32.5 | 41 | 2600 |
| 1 | 185 | 33.5 | 42 | 2985 |
| 1 | 240 | 36.5 | 45 | 3620 |
| 1 | 300 | 39 | 48 | 4315 |
| 1 | 400 | 42 | 51 | 5305 |
| 1 | 500 | 45 | 54.5 | 6310 |
| 1 | 630 | 51 | 58 | 8010 |
| 3 | 50 | 26 | 70.5 | 5800 |
| 3 | 70 | 28 | 74.5 | 6795 |
| 3 | 95 | 29.5 | 78.5 | 7985 |
| 3 | 120 | 31.5 | 82.5 | 9060 |
| 3 | 150 | 32.5 | 85 | 10030 |
| 3 | 185 | 33.5 | 88 | 11475 |
| 3 | 240 | 36.5 | 94 | 13630 |
| 3 | 300 | 39 | 100 | 16145 |
| 3 | 400 | 42 | 107 | 19650 |
| NO. OF CORES | CONDUCTOR NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 3.6/6 (7.2)kV | ||||
| 1 | 25 | 12.5 | 20 | 505 |
| 1 | 35 | 13.5 | 21 | 560 |
| 1 | 50 | 15 | 22 | 615 |
| 1 | 70 | 16.5 | 24 | 705 |
| 1 | 95 | 18 | 25.5 | 830 |
| 1 | 120 | 20 | 27.5 | 950 |
| 1 | 150 | 21 | 29 | 1055 |
| 1 | 185 | 22.5 | 30.5 | 1205 |
| 1 | 240 | 25.5 | 33.5 | 1425 |
| 1 | 300 | 28.5 | 37 | 1695 |
| 1 | 400 | 32 | 40 | 2055 |
| 1 | 500 | 35 | 43.5 | 2450 |
| 1 | 630 | 40 | 49 | 3040 |
| 3 | 25 | 12.5 | 39 | 1935 |
| 3 | 35 | 13.5 | 41.5 | 2140 |
| 3 | 50 | 15 | 44 | 2395 |
| 3 | 70 | 16.5 | 48 | 2785 |
| 3 | 95 | 18 | 52 | 3270 |
| 3 | 120 | 20 | 56 | 3725 |
| 3 | 150 | 21 | 59 | 4170 |
| 3 | 185 | 22.5 | 62.5 | 4725 |
| 3 | 240 | 25.5 | 68.5 | 5750 |
| 3 | 300 | 28.5 | 76 | 6860 |
| 3 | 400 | 32 | 83.5 | 8390 |
| 6/10 (12)kV | ||||
| 1 | 25 | 14.5 | 22 | 505 |
| 1 | 35 | 15.5 | 23 | 560 |
| 1 | 50 | 17 | 24.5 | 615 |
| 1 | 70 | 18.5 | 26 | 705 |
| 1 | 95 | 20 | 28 | 830 |
| 1 | 120 | 22 | 29.5 | 950 |
| 1 | 150 | 23 | 31 | 1055 |
| 1 | 185 | 24.5 | 32.5 | 1205 |
| 1 | 240 | 27 | 35 | 1425 |
| 1 | 300 | 30 | 38 | 1695 |
| 1 | 400 | 32.5 | 41 | 2055 |
| 1 | 500 | 35.5 | 44.5 | 2450 |
| 1 | 630 | 40.5 | 49 | 3040 |
| 3 | 25 | 14.5 | 43.5 | 1935 |
| 3 | 35 | 15.5 | 46 | 2140 |
| 3 | 50 | 17 | 49 | 2395 |
| 3 | 70 | 18.5 | 52.5 | 2785 |
| 3 | 95 | 20 | 56.5 | 3270 |
| 3 | 120 | 22 | 60.5 | 3725 |
| 3 | 150 | 23 | 63.5 | 4170 |
| 3 | 185 | 24.5 | 67 | 4725 |
| 3 | 240 | 27 | 72 | 5750 |
| 3 | 300 | 30 | 79 | 6860 |
| 3 | 400 | 32.5 | 85.5 | 8390 |
| 8.7/15 (17.5)kV | ||||
| 1 | 25 | 17 | 24.5 | 665 |
| 1 | 35 | 18 | 25.5 | 720 |
| 1 | 50 | 19 | 26.5 | 785 |
| 1 | 70 | 20.5 | 28.5 | 900 |
| 1 | 95 | 22.5 | 30 | 1020 |
| 1 | 120 | 24 | 32 | 1160 |
| 1 | 150 | 25.5 | 33.5 | 1270 |
| 1 | 185 | 27 | 35 | 1435 |
| 1 | 240 | 29 | 37.5 | 1665 |
| 1 | 300 | 32 | 40.5 | 1915 |
| 1 | 400 | 35 | 43.5 | 2270 |
| 1 | 500 | 38 | 46.5 | 2655 |
| 1 | 630 | 42.5 | 51.5 | 3240 |
| 3 | 25 | 17 | 49 | 2665 |
| 3 | 35 | 18 | 51.5 | 2905 |
| 3 | 50 | 19 | 54 | 3210 |
| 3 | 70 | 20.5 | 58 | 3650 |
| 3 | 95 | 22.5 | 61.5 | 4210 |
| 3 | 120 | 24 | 65.5 | 4725 |
| 3 | 150 | 25.5 | 68.5 | 5285 |
| 3 | 185 | 27 | 72 | 5835 |
| 3 | 240 | 29 | 77.5 | 6830 |
| 3 | 300 | 32 | 84 | 7965 |
| 3 | 400 | 35 | 90.5 | 9390 |
| 12/20 (24)kV | ||||
| 1 | 35 | 20 | 27.5 | 815 |
| 1 | 50 | 21 | 28.5 | 880 |
| 1 | 70 | 22.5 | 30.5 | 1005 |
| 1 | 95 | 24.5 | 32.5 | 1130 |
| 1 | 120 | 26 | 34 | 1275 |
| 1 | 150 | 27.5 | 35.5 | 1395 |
| 1 | 185 | 29 | 37 | 1565 |
| 1 | 240 | 31 | 39.5 | 1785 |
| 1 | 300 | 34 | 42.5 | 2065 |
| 1 | 400 | 37 | 45.5 | 2425 |
| 1 | 500 | 40 | 48.5 | 2825 |
| 1 | 630 | 44.5 | 53.5 | 3425 |
| 3 | 35 | 20 | 56 | 3315 |
| 3 | 50 | 21 | 58.5 | 3645 |
| 3 | 70 | 22.5 | 62.5 | 4145 |
| 3 | 95 | 24.5 | 66.5 | 4740 |
| 3 | 120 | 26 | 70.5 | 5285 |
| 3 | 150 | 27.5 | 73.5 | 5810 |
| 3 | 185 | 29 | 76.5 | 6450 |
| 3 | 240 | 31 | 82 | 7495 |
| 3 | 300 | 34 | 88.5 | 8640 |
| 3 | 400 | 37 | 95 | 10165 |
| 18/30 (36)kV | ||||
| 1 | 50 | 26 | 34 | 1155 |
| 1 | 70 | 27.5 | 36 | 1275 |
| 1 | 95 | 29.5 | 37.5 | 1435 |
| 1 | 120 | 31 | 39.5 | 1575 |
| 1 | 150 | 32.5 | 41 | 1725 |
| 1 | 185 | 34 | 42.5 | 1890 |
| 1 | 240 | 36 | 45 | 2150 |
| 1 | 300 | 39 | 48 | 2460 |
| 1 | 400 | 42 | 51 | 2850 |
| 1 | 500 | 45 | 54 | 3275 |
| 1 | 630 | 49.5 | 59 | 3920 |
| 3 | 50 | 26 | 70 | 4915 |
| 3 | 70 | 27.5 | 74 | 5520 |
| 3 | 95 | 29.5 | 78 | - |
| 3 | 120 | 31 | 82 | - |
| 3 | 150 | 32.5 | 85 | - |
| 3 | 185 | 34 | 88.5 | - |
| 3 | 240 | 36 | 93.5 | - |
| 3 | 300 | 39 | 100 | - |
| 3 | 400 | 42 | 106.5 | - |
