YMeKrvasdlwd Cable Description
YMeKrvasdlwd cables feature a medium-density polyethylene (MDPE) outer sheath, offering UV resistance and abrasion resistance, effectively protecting against various harsh environments. The cable also incorporates longitudinal and radial water-blocking layers to prevent water ingress.
This cable conforms to Dutch standard HD 620 S2 – Part 10J and IEC 60502-2. It is available in single-core and multi-core configurations, with conductor materials selectable from copper or aluminum (solid or stranded). It is commonly used in onshore and offshore industrial facilities in the oil, gas, and petrochemical industries.

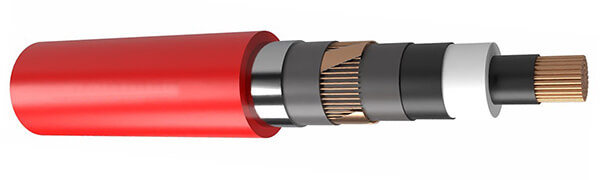

YMeKrvasdlwd Cable Construction
| YMeKrvasdlwd Aluminium MDPE 3-Core Cable | YMeKrvasdlwd Aluminium MDPE Single Core Cable | YMeKrvasdlwd Copper MDPE Single Core Cable | |
|---|---|---|---|
| Conductor | 8.7/15 kV: Class 1 solid Aluminium Conductor 18/30 kV: Class 2 Aluminium Stranded Conductor | Class 1 solid Aluminium | Class 2 stranded compacted copper |
| Insulation | XLPE (Cross-Linked Polyethylene) | ||
| Screen | Copper wires and tape | ||
| Waterblocking Tape | Longitudinal swellable tape | ||
| Waterblocking Tape 2 | Al/PET (Aluminium/Polyester) Radial Water Blocking | ||
| Outer Sheath | MDPE (Medium Density Polyethylene) | ||
YMeKrvasdlwd Cable Characteristics
- Temperature Rating
- Maximum conductor temperature: +90ºC
- YMeKrvasdlwd Aluminium MDPE 3-Core Cable
- YMeKrvasdlwd Aluminium MDPE Single Core Cable
- YMeKrvasdlwd Copper MDPE Single Core Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CROSS SECTIONAL AREA OF SCREEN mm² | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 8.7/15 (17.5)KV | ||||
| 3 | 95 | 50 | 57.9 | 3.778 |
| 3 | 150 | 70 | 64 | 4.862 |
| 18/30 (36)KV | ||||
| 3 | 50 | 35 | 67.4 | 4.534 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/m |
|---|---|---|---|---|
| 6/10 (12) KV | ||||
| 1 | 150 | 25 | 31.3 | 1140 |
| 1 | 240 | 25 | 34.3 | 1433 |
| 1 | 400 | 70 | 39.8 | 2356 |
| 1 | 630 | 70 | 45.6 | 3157 |
| 1 | 800 | 70 | 49.1 | 3720 |
| 1 | 1000 | 70 | 53.8 | 4394 |
| 8.7/15 (17.5) KV | ||||
| 1 | 150 | 25 | 33.6 | 1239 |
| 1 | 240 | 25 | 37.3 | 1583 |
| 1 | 300 | 50 | 39.3 | 2000 |
| 1 | 400 | 50 | 41.9 | 2298 |
| 1 | 630 | 50 | 48.1 | 3128 |
| 1 | 800 | 50 | 51.9 | 3699 |
| 12/20 (24) KV | ||||
| 1 | 150 | 25 | 35.5 | 1329 |
| 1 | 150 | 70 | 35.5 | 1732 |
| 1 | 240 | 25 | 39.2 | 1688 |
| 1 | 240 | 35 | 39.2 | 1766 |
| 1 | 240 | 50 | 39.2 | 1908 |
| 1 | 240 | 70 | 39.2 | 2097 |
| 1 | 300 | 50 | 41.4 | 2120 |
| 1 | 400 | 35 | 43.8 | 2281 |
| 1 | 400 | 50 | 43.8 | 2415 |
| 1 | 630 | 35 | 50.4 | 3148 |
| 1 | 630 | 50 | 50.4 | 3281 |
| 1 | 800 | 50 | 54.1 | 3866 |
| 1 | 1000 | 35 | 58.3 | 4220 |
| 1 | 1000 | 50 | 58.3 | 4556 |
| 18/30 (36) KV | ||||
| 1 | 95 | 25 | 37.9 | 1353 |
| 1 | 150 | 25 | 40.4 | 1592 |
| 1 | 240 | 25 | 44.2 | 1975 |
| 1 | 300 | 25 | 46.2 | 2205 |
| 1 | 400 | 25 | 48.7 | 2509 |
| 1 | 400 | 50 | 48.7 | 2729 |
| 1 | 630 | 25 | 55.7 | 3492 |
| 1 | 630 | 35 | 55.7 | 3549 |
| 1 | 630 | 50 | 55.7 | 3674 |
| 1 | 800 | 50 | 59.6 | 4289 |
| 1 | 800 | 80 | 59.6 | 4565 |
| 1 | 1000 | 50 | 63.6 | 5003 |
| 1 | 1000 | 80 | 63.6 | 5288 |
| 1 | 1200 | 50 | 66.6 | 5676 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL SCREEN CROSS SECTIONAL AREA mm² | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 6/10 (12)KV | ||||
| 1 | 150 | 25 | 32.5 | 2071 |
| 1 | 185 | 25 | 34.4 | 2457 |
| 1 | 240 | 25 | 36.7 | 3051 |
| 1 | 300 | 25 | 38.8 | 3546 |
| 1 | 400 | 50 | 41.6 | 4595 |
| 1 | 500 | 50 | 45.4 | 5892 |
| 1 | 630 | 50 | 49.6 | 7090 |
| 8.7/15 (17.5)KV | ||||
| 1 | 25 | 25 | 26.7 | 888 |
| 1 | 50 | 25 | 28.7 | 1140 |
| 1 | 70 | 35 | 30.3 | 1452 |
| 1 | 95 | 25 | 31.9 | 1638 |
| 1 | 120 | 35 | 33.4 | 1981 |
| 1 | 150 | 25 | 34.9 | 2176 |
| 1 | 240 | 25 | 38.9 | 3165 |
| 1 | 400 | 50 | 44.3 | 4737 |
| 1 | 500 | 50 | 47.6 | 6035 |
| 1 | 630 | 50 | 51.8 | 7247 |
| 12/20 (24)KV | ||||
| 1 | 50 | 25 | 30.2 | 1214 |
| 1 | 95 | 50 | 33.9 | 1947 |
| 1 | 630 | 50 | 54.1 | 7410 |
| 18/30 (36)KV | ||||
| 1 | 150 | 25 | 41.8 | 2544 |
| 1 | 240 | 25 | 44.9 | 3572 |
| 1 | 240 | 35 | 44.9 | 3658 |
| 1 | 300 | 50 | 48.2 | 4325 |
| 1 | 400 | 50 | 51.5 | 5208 |
| 1 | 500 | 50 | 55 | 6568 |
| 1 | 630 | 50 | 59.4 | 7842 |
