YMz1Krvasdlwd-AL Cable Description
YMz1Krvasdlwd-AL cable is the aluminum core version of YMz1Krvasdlwd cable, available in single-core and three-core versions, typically manufactured according to HD 620-10J and NEN3620 standards.
YMz1Krvasdlwd-AL cable features radial and longitudinal water-blocking tapes to prevent water infiltration and damage to the internal insulation and conductors. It uses a low-smoke halogen-free (LSZH) UV-resistant sheath and can be directly buried or laid in cable conduits within power grids.

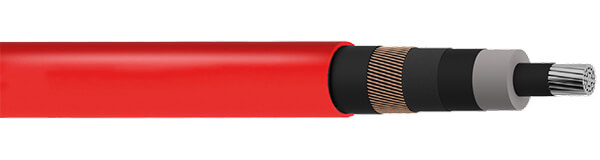

YMz1Krvasdlwd-AL Cable Construction
- Conductor
- Class 2 Stranded Aluminium
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Screen
- Copper wires and tape
- Tape
- Longitudinal and Radial Water Blocking
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
YMz1Krvasdlwd-AL Cable Characteristics
- Temperature Rating
- Fixed: 0°C to +90°C
- Maximum Conductor Short-Circuit Temp up to 5 sec: 250°C
- Minimum Bending Radius
- Single Core: 15 x overall diameter
- Multi Core: 12 x overall diameter
- YMz1Krvasdlwd-AL 8.7/15kV
- YMz1Krvasdlwd-AL 12/20kV
- YMz1Krvasdlwd-AL 18/30kV
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CROSS SECTIONAL AREA OF SCREEN mm² | NOMINAL DIAMETER OVER CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SEMI-CONDUCTIVE LAYER mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|---|
| Inner | Outer | ||||||||
| 1 | 50 | 25 | 8.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 28 | 1000 |
| 1 | 70 | 25 | 9.7 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 29 | 1100 |
| 1 | 95 | 25 | 11.4 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 31 | 1200 |
| 1 | 120 | 25 | 12.6 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 32 | 1300 |
| 1 | 150 | 25 | 14.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 34 | 1400 |
| 1 | 185 | 25 | 15.8 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 35 | 1600 |
| 1 | 240 | 25 | 18.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 38 | 1800 |
| 1 | 300 | 25 | 20.2 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 40 | 2000 |
| 1 | 400 | 50 | 23 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 43 | 2600 |
| 1 | 500 | 50 | 26 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 47 | 3000 |
| 1 | 630 | 50 | 30.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 51 | 3500 |
| 3 | 50 | 70 | 8.1 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 54 | 3000 |
| 3 | 70 | 70 | 9.7 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 58 | 3250 |
| 3 | 95 | 70 | 11.4 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 62 | 3750 |
| 3 | 120 | 70 | 12.6 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 65 | 4000 |
| 3 | 150 | 70 | 14.1 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 68 | 4400 |
| 3 | 185 | 70 | 15.8 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 72 | 4900 |
| 3 | 240 | 70 | 18.1 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 77 | 5750 |
| 3 | 300 | 70 | 20.2 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 81 | 6400 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CROSS SECTIONAL AREA OF SCREEN mm² | NOMINAL DIAMETER OVER CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SEMI-CONDUCTIVE LAYER mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|---|
| Inner | Outer | ||||||||
| 1 | 50 | 25 | 8.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 30 | 1100 |
| 1 | 70 | 25 | 9.7 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 31 | 1200 |
| 1 | 95 | 25 | 11.4 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 33 | 1300 |
| 1 | 120 | 25 | 12.6 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 34 | 1400 |
| 1 | 150 | 25 | 14.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 36 | 1500 |
| 1 | 185 | 25 | 15.8 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 37 | 1700 |
| 1 | 240 | 25 | 18.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 40 | 1900 |
| 1 | 300 | 25 | 20.2 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 42 | 2200 |
| 1 | 400 | 50 | 23 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 45 | 2750 |
| 1 | 500 | 50 | 26 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 48 | 3250 |
| 1 | 630 | 50 | 30.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 52 | 3750 |
| 3 | 50 | 70 | 8.1 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 60 | 3250 |
| 3 | 70 | 70 | 9.7 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 63 | 3700 |
| 3 | 95 | 70 | 11.4 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 67 | 4000 |
| 3 | 120 | 70 | 12.6 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 70 | 4500 |
| 3 | 150 | 70 | 14.1 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 73 | 4900 |
| 3 | 185 | 70 | 15.8 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 77 | 5400 |
| 3 | 240 | 70 | 18.1 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 82 | 6200 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CROSS SECTIONAL AREA OF SCREEN mm² | NOMINAL DIAMETER OVER CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SEMI-CONDUCTIVE LAYER mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|---|
| Inner | Outer | ||||||||
| 1 | 50 | 25 | 8.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 35 | 1300 |
| 1 | 70 | 25 | 9.7 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 36 | 1400 |
| 1 | 95 | 25 | 11.4 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 38 | 1600 |
| 1 | 120 | 25 | 12.6 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 39 | 1700 |
| 1 | 150 | 25 | 14.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 41 | 1800 |
| 1 | 185 | 25 | 15.8 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 42 | 2000 |
| 1 | 240 | 25 | 18.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 45 | 2250 |
| 1 | 300 | 25 | 20.2 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 47 | 2500 |
| 1 | 400 | 50 | 23 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 50 | 3100 |
| 1 | 500 | 50 | 26 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 54 | 3500 |
| 1 | 630 | 50 | 30.1 | 4.5 | 0.5 | 0.40(fully bonded) | 2.5 | 58 | 4000 |
| 3 | 50 | 70 | 8.1 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 70 | 4250 |
| 3 | 70 | 70 | 9.7 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 74 | 4750 |
| 3 | 95 | 70 | 11.4 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 78 | 5200 |
| 3 | 120 | 70 | 12.6 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 80 | 5500 |
| 3 | 150 | 70 | 14.1 | 4.5 | 0.5 | 0.40(fully bonded) | 3.2 | 83 | 6100 |
