YMz1Krvasdlwd Cable

YMz1Krvasdlwd Cable Description

YMz1Krvasdlwd cable is available in single-core and three-core versions, and in various voltage ratings (8.7/15kV, 12/20kV, 18/30kV). The cable utilizes double-layered radial and longitudinal waterproof tape, providing additional protection for the internal insulation and conductors.

YMz1Krvasdlwd cables feature a low-smoke, halogen-free outer sheath, making them suitable for interior installations in public buildings and facilities, especially in locations where a fire could endanger lives or damage sensitive equipment. They are typically used for dedicated power grid connections in data centers, life science facilities, and other large-scale construction projects and their associated infrastructure.

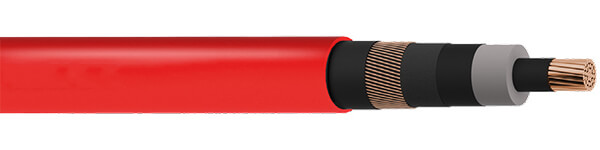

YMz1Krvasdlwd Cable Construction

Conductor
Class 2 Stranded Copper
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper wires and tape
Water Blocking
Radial and Longitudinal Waterblocking Tape
Outer Sheath
LSZH (Low Smoke Zero Halogen) UV Resistant

YMz1Krvasdlwd Cable Characteristics

Temperature Rating
Fixed: 0°C to +90°C
Maximum Conductor Short-Circuit Temp up to 5 sec: 250°C
Minimum Bending Radius
15 x overall diameter

YMz1Krvasdlwd 8.7/15kV
YMz1Krvasdlwd 12/20kV
YMz1Krvasdlwd 18/30kV

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CROSS SECTIONAL AREA OF SCREEN mm²	NOMINAL DIAMETER OVER CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SEMI-CONDUCTIVE LAYER mm		NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CROSS SECTIONAL AREA OF SCREEN mm²	NOMINAL DIAMETER OVER CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	Inner	Outer	NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	50	25	8.1	4.5	0.5	0.40(fully bonded)	2.5	28	1250
1	70	25	9.7	4.5	0.5	0.40(fully bonded)	2.5	29	1500
1	95	25	11.4	4.5	0.5	0.40(fully bonded)	2.5	31	1800
1	120	25	12.65	4.5	0.5	0.40(fully bonded)	2.5	32	2000
1	150	25	14.4	4.5	0.5	0.40(fully bonded)	2.5	34	2300
1	185	25	15.75	4.5	0.5	0.40(fully bonded)	2.5	35	2700
1	240	25	18.2	4.5	0.5	0.40(fully bonded)	2.5	38	3300
1	300	25	20.5	4.5	0.5	0.40(fully bonded)	2.5	40	4000
1	400	50	23	4.5	0.5	0.40(fully bonded)	2.5	43	5000
1	500	50	26	4.5	0.5	0.40(fully bonded)	2.5	47	6100
1	630	50	29.7	4.5	0.5	0.40(fully bonded)	2.5	51	7400

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CROSS SECTIONAL AREA OF SCREEN mm²	NOMINAL DIAMETER OVER CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SEMI-CONDUCTIVE LAYER mm		NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CROSS SECTIONAL AREA OF SCREEN mm²	NOMINAL DIAMETER OVER CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	Inner	Outer	NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	50	25	8.1	5.5	0.5	0.40(fully bonded)	2.5	30	1300
1	70	25	9.7	5.5	0.5	0.40(fully bonded)	2.5	31	1600
1	95	25	11.4	5.5	0.5	0.40(fully bonded)	2.5	33	1900
1	120	25	12.65	5.5	0.5	0.40(fully bonded)	2.5	34	2200
1	150	25	14.4	5.5	0.5	0.40(fully bonded)	2.5	36	2500
1	185	25	15.75	5.5	0.5	0.40(fully bonded)	2.5	37	2800
1	240	25	18.2	5.5	0.5	0.40(fully bonded)	2.5	40	3500
1	300	25	20.5	5.5	0.5	0.40(fully bonded)	2.5	42	4000
1	400	50	23	5.5	0.5	0.40(fully bonded)	2.5	45	5100
1	500	50	26	5.5	0.5	0.40(fully bonded)	2.5	48	6250
1	630	50	29.7	5.5	0.5	0.40(fully bonded)	2.5	52	7500

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CROSS SECTIONAL AREA OF SCREEN mm²	NOMINAL DIAMETER OVER CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SEMI-CONDUCTIVE LAYER mm		NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL CROSS SECTIONAL AREA OF SCREEN mm²	NOMINAL DIAMETER OVER CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	Inner	Outer	NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	50	25	8.1	8	0.5	0.40(fully bonded)	2.5	35	1600
1	70	25	9.7	8	0.5	0.40(fully bonded)	2.5	36	1800
1	95	25	11.4	8	0.5	0.40(fully bonded)	2.5	38	2200
1	120	25	12.65	8	0.5	0.40(fully bonded)	2.5	39	2400
1	150	25	14.4	8	0.5	0.40(fully bonded)	2.5	41	2750
1	185	25	15.75	8	0.5	0.40(fully bonded)	2.5	42	3100
1	240	25	18.2	8	0.5	0.40(fully bonded)	2.5	45	3750
1	300	25	20.5	8	0.5	0.40(fully bonded)	2.5	47	4400
1	400	50	23	8	0.5	0.40(fully bonded)	2.5	50	5500
1	500	50	26	8	0.5	0.40(fully bonded)	2.5	54	6600
1	630	50	29.7	8	0.5	0.40(fully bonded)	2.5	58	8000
