FG7H1OAR Cable Description
FG7H1OAR cable conductor is typically tinned copper, with insulation made of HEPR (rigid ethylene propylene rubber) for high performance and reduced partial discharge. A separate copper braid is used, protective earthing is provided, and there are three control conductors. The jacket is typically PVC (polyvinyl chloride), and a low-smoke zero halogen (LSZH) version of the cable is available on request.

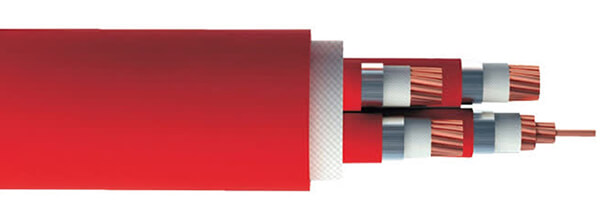

FG7H1OAR Cable Construction
| FG7H1OAR - 3.6/6kV and 6/10kV Cable | FG7H1OAR - 8.7/15kV and 12/20kV Cable | |
|---|---|---|
| VOLTAGE | 3.6/6kV, 6/10kV | 8.7/15kV, 12/20kV |
| PHASE CONDUCTOR | Class 5 Flexible Stranded Copper | |
| INSULATION | HEPR (Hard Ethylene Propylene Rubber) | |
| SEMI-CONDUCTIVE LAYERS | Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation | |
| PROTECTIVE EARTH CONDUCTOR | Individual Copper Wire Braid | |
| CONTROL CONDUCTOR | Class 5 Flexible Stranded Tinned Copper | |
| CENTRAL FILLER | Rubber Compound on a Textile Polyester Support | |
| INNER SHEATH | PVC (Polyvinyl Chloride) | |
| ARMOUR | Steel Wire Braid over the Inner Sheath | |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | |
FG7H1OAR Cable Characteristics
- Ambient Temperature
- Fixed: -40°C to +80°C
- Flexed: +5°C to +80°C
- Maximum Short Circuit Temperature
- +250°C
- Minimum Bending Radius
- Fixed: 6 x overall diameter
- Flexed: 10 x overall diameter
- FG7H1OAR - 3.6/6kV and 6/10kV Cable

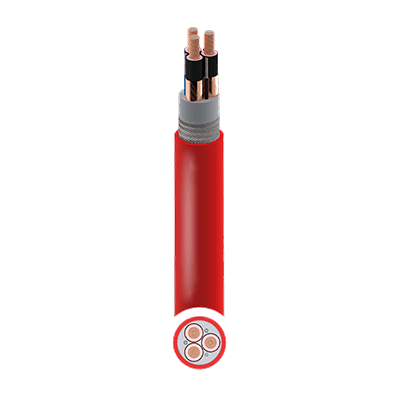

- FG7H1OAR - 8.7/15kV and 12/20kV Cable
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||||
| 3.6/6 | 3+3 | 25 | 2.5ST | 6.1 | 36.3 | 40.2 | 1125 | 2250 |
| 3.6/6 | 3+3 | 35 | 2.5ST | 7.2 | 38.8 | 43 | 1575 | 3200 |
| 3.6/6 | 3+3 | 50 | 2.5ST | 8.9 | 42.5 | 47 | 2250 | 3860 |
| 3.6/6 | 3+3 | 70 | 2.5ST | 10.6 | 46.1 | 50.8 | 3150 | 4630 |
| 3.6/6 | 3+3 | 95 | 2.5ST | 12.3 | 49.9 | 55 | 4275 | 5680 |
| 3.6/6 | 3+3 | 120 | 2.5ST | 13.8 | 56.8 | 62.5 | 5400 | 7010 |
| 3.6/6 | 3+3 | 150 | 2.5ST | 15.5 | 57.8 | 63.5 | 6750 | 7910 |
| 3.6/6 | 3+3 | 185 | 2.5ST | 17 | 61.2 | 67.1 | 8325 | 9060 |
| 6/10 | 3+3 | 25 | 2.5ST | 6.1 | 36.3 | 40.8 | 1125 | 2290 |
| 6/10 | 3+3 | 35 | 2.5ST | 7.2 | 38.8 | 43.6 | 1575 | 3240 |
| 6/10 | 3+3 | 50 | 2.5ST | 8.9 | 42.5 | 47.6 | 2250 | 3900 |
| 6/10 | 3+3 | 70 | 2.5ST | 10.6 | 46.1 | 51.4 | 3150 | 4670 |
| 6/10 | 3+3 | 95 | 2.5ST | 12.3 | 49.9 | 55.6 | 4275 | 5720 |
| 6/10 | 3+3 | 120 | 2.5ST | 13.8 | 56.8 | 63.2 | 5400 | 7050 |
| 6/10 | 3+3 | 150 | 2.5ST | 15.5 | 57.8 | 64.2 | 6750 | 7950 |
| 6/10 | 3+3 | 185 | 2.5ST | 17 | 61.2 | 67.8 | 8325 | 9100 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||||
| 8.7/15 | 3+3 | 25 | 2.5ST | 6.1 | 40.9 | 45.2 | 1125 | 3040 |
| 8.7/15 | 3+3 | 35 | 2.5ST | 7.2 | 42.9 | 47.4 | 1575 | 3470 |
| 8.7/15 | 3+3 | 50 | 2.5ST | 8.9 | 46.9 | 51.8 | 2250 | 4280 |
| 8.7/15 | 3+3 | 70 | 2.5ST | 10.6 | 51.5 | 56.7 | 3150 | 5300 |
| 8.7/15 | 3+3 | 95 | 2.5ST | 12.3 | 55.2 | 60.7 | 4275 | 6420 |
| 8.7/15 | 3+3 | 120 | 2.5ST | 13.8 | 57.1 | 62.8 | 5400 | 7120 |
| 8.7/15 | 3+3 | 150 | 2.5ST | 15.5 | 62.1 | 68.2 | 6750 | 8600 |
| 12/20 | 3+3 | 25 | 2.5ST | 6.1 | 43.8 | 48.4 | 1125 | 3410 |
| 12/20 | 3+3 | 35 | 2.5ST | 7.2 | 45.7 | 50.4 | 1575 | 3830 |
| 12/20 | 3+3 | 50 | 2.5ST | 8.9 | 49.3 | 54.4 | 2250 | 4570 |
| 12/20 | 3+3 | 70 | 2.5ST | 10.6 | 54.1 | 59.6 | 3150 | 5760 |
| 12/20 | 3+3 | 95 | 2.5ST | 12.3 | 57.8 | 63.5 | 4275 | 6890 |
| 12/20 | 3+3 | 120 | 2.5ST | 13.8 | 61 | 66.9 | 5400 | 7650 |
