(N)3GHSSHCH Cable

(N)3GHSSHCH Cable Description

(N)3GHSSHCH features a low-smoke zero halogen (LSZH) inner and outer sheath for use in environments where there is a potential fire hazard. The cable is designed to withstand the stresses of underground and mining environments, including chemical and climatic stresses.

(N)3GHSSHCH cable voltage ratings include 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV. Compliant with RoHS Directive 2015/65/EU and REACH Directive EC 1907/2006.

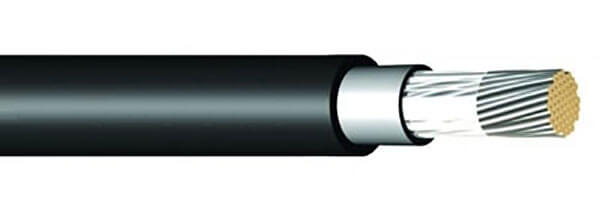

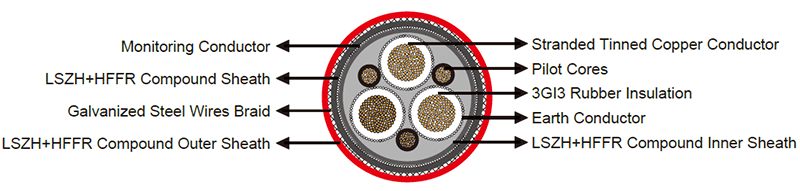

(N)3GHSSHCH Cable Construction

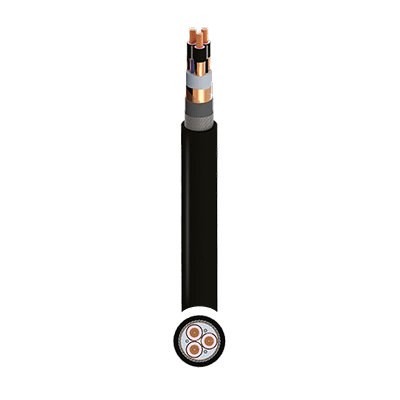

	(N)3GHSSHCH - 3.6/6kV and 6/10kV Cable	(N)3GHSSHCH - 8.7/15kV and 12/20kV Cable
VOLTAGE	3.6/6kV & 6/10kV	8.7/15kV & 12/20kV
PHASE CONDUCTOR	Class 5 Flexible Stranded Copper
INSULATION	Rubber Compound
SEMI-CONDUCTIVE LAYERS	Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation
PROTECTIVE EARTH CONDUCTOR	Individual Copper Wire Screen
CONTROL CONDUCTOR	Class 5 Flexible Stranded Tinned Copper
CENTRAL FILLER	Rubber Compound on a Textile Polyester Support
INNER SHEATH	LSZH (Low Smoke Zero Halogen)
MONITORING CONDUCTOR	Copper Wire Screen over the First Inner Sheath
INNER SHEATH 2	LSZH (Low Smoke Zero Halogen)
ARMOUR	Steel Wire Braid over the Second Inner Sheath
OUTER SHEATH	LSZH (Low Smoke Zero Halogen)

(N)3GHSSHCH Cable Characteristics

	(N)3GHSSHCH - 3.6/6kV and 6/10kV Cable	(N)3GHSSHCH - 8.7/15kV and 12/20kV Cable
Voltage Rating Uo/U	3.6/6kV \| 6/10kV	8.7/15kV \| 12/20kV
Test Voltage	3.6/6kV: 11kV \| 6/10kV: 17kV	8.7/15kV: 24kV \| 12/20kV: 29kV
Ambient Temperature	Fixed: -40°C to +80°C Flexed: +5°C to +80°C
Minimum Bending Radius	Fixed: 6 x overall diameter Flexed: 10 x overall diameter

(N)3GHSSHCH Cable Applications

Mining and Tunneling
(N)3GHSSHCH cables are commonly used for powering mobile equipment in mining operations, including tunnels and underground excavations.
Hazardous Environments
They are designed for use in environments where there may be chemical or climate-related hazards.
Mobile Equipment
These cables are suitable for connecting equipment that moves or is shifted during operations.

(N)3GHSSHCH - 3.6/6kV and 6/10kV Cable
(N)3GHSSHCH - 8.7/15kV and 12/20kV Cable

VOLTAGE kV	NO. OF CORES (PHASE + EARTH + CONTROL+ÜL)	NOMINAL CROSS SECTIONAL AREA mm²			CONDUCTOR DIAMETER mm	MINIMUM OVERALL DIAMETER mm	MAXIMUM OVERALL DIAMETER mm	MAXIMUM TENSILE LOAD N	NOMINAL WEIGHT kg/km
VOLTAGE kV	NO. OF CORES (PHASE + EARTH + CONTROL+ÜL)	Phase N Conductor	Earth Conductor	Control Conductor	CONDUCTOR DIAMETER mm	MINIMUM OVERALL DIAMETER mm	MAXIMUM OVERALL DIAMETER mm	MAXIMUM TENSILE LOAD N	NOMINAL WEIGHT kg/km
3.6/6	3+3+3+ÜL	25	25/3E	2.5ST	6.1	47.2	52.1	1125	4120
3.6/6	3+3+3+ÜL	35	25/3E	2.5ST	7.2	49	54	1575	4570
3.6/6	3+3+3+ÜL	50	25/3E	2.5ST	8.9	52.5	57.8	2250	5300
3.6/6	3+3+3+ÜL	70	35/3E	2.5ST	10.6	56.1	61.6	3150	6370
3.6/6	3+3+3+ÜL	95	50/3E	2.5ST	12.3	60.3	66.2	4275	7600
3.6/6	3+3+3+ÜL	120	70/3E	2.5ST	13.8	63.8	70	5400	8990
3.6/6	3+3+3+ÜL	150	70/3E	2.5ST	15.5	67.2	73.7	6750	10130
6/10	3+3+3+ÜL	25	25/3E	2.5ST	6.1	47.2	52.7	1125	4160
6/10	3+3+3+ÜL	35	25/3E	2.5ST	7.2	49	54.6	1575	4610
6/10	3+3+3+ÜL	50	25/3E	2.5ST	8.9	52.5	58.4	2250	5340
6/10	3+3+3+ÜL	70	35/3E	2.5ST	10.6	56.1	62.2	3150	6410
6/10	3+3+3+ÜL	95	50/3E	2.5ST	12.3	60.3	66.8	4275	7640
6/10	3+3+3+ÜL	120	70/3E	2.5ST	13.8	63.8	70.7	5400	9030
6/10	3+3+3+ÜL	150	70/3E	2.5ST	15.5	67.2	74.4	6750	10170

VOLTAGE kV	NO. OF CORES (PHASE + EARTH + CONTROL+ÜL)	NOMINAL CROSS SECTIONAL AREA mm²			CONDUCTOR DIAMETER mm	MINIMUM OVERALL DIAMETER mm	MAXIMUM OVERALL DIAMETER mm	MAXIMUM TENSILE LOAD N	NOMINAL WEIGHT kg/km
VOLTAGE kV	NO. OF CORES (PHASE + EARTH + CONTROL+ÜL)	Phase Conductor	Earth Conductor	Control Conductor	CONDUCTOR DIAMETER mm	MINIMUM OVERALL DIAMETER mm	MAXIMUM OVERALL DIAMETER mm	MAXIMUM TENSILE LOAD N	NOMINAL WEIGHT kg/km
8.7/15	3+3+3+ÜL	25	25/3E	2.5ST	6.1	50.5	55.6	1125	4030
8.7/15	3+3+3+ÜL	35	25/3E	2.5ST	7.2	52.3	57.6	1575	4480
8.7/15	3+3+3+ÜL	50	25/3E	2.5ST	8.9	55.8	61.3	2250	5210
8.7/15	3+3+3+ÜL	70	35/3E	2.5ST	10.6	59.3	65.2	3150	6230
8.7/15	3+3+3+ÜL	95	50/3E	2.5ST	12.3	62.8	68.9	4275	7350
8.7/15	3+3+3+ÜL	120	70/3E	2.5ST	13.8	66.2	72.6	5400	8540
12/20	3+3+3+ÜL	25	25/3E	2.5ST	6.1	52.9	58.2	1125	4330
12/20	3+3+3+ÜL	35	25/3E	2.5ST	7.2	54.7	60.2	1575	4780
12/20	3+3+3+ÜL	50	25/3E	2.5ST	8.9	58.3	64	2250	5540
12/20	3+3+3+ÜL	70	35/3E	2.5ST	10.6	61.7	67.8	3150	6570
12/20	3+3+3+ÜL	95	50/3E	2.5ST	12.3	65.2	71.5	4275	7690
12/20	3+3+3+ÜL	120	70/3E	2.5ST	13.8	68.7	75.3	5400	8920
