(N)3GHSSYCY Cable Description

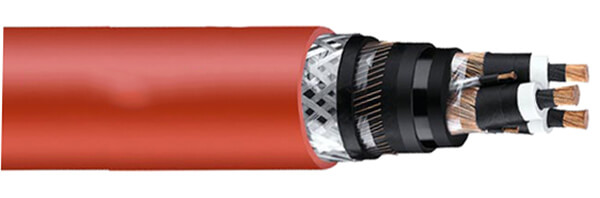

(N)3GHSSYCY cables feature flexible copper conductors, EPR insulation and protective conductors, as well as inner and outer sheaths (usually PVC), and sometimes steel wire braid armor.
The cable is manufactured according to VDE 0250 standard. One of the main applications is the connection of mobile equipment in hazardous environments in mines and underground excavation operations. In addition to this, these cables are widely used in fixed installations such as high-voltage transformers in mining and tunnel construction.

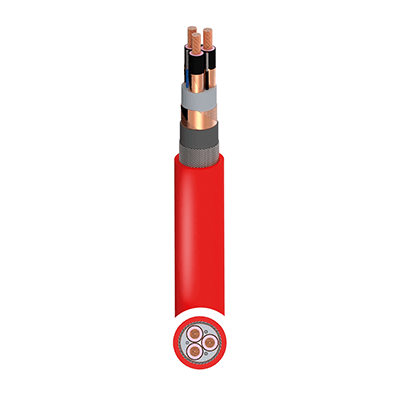

(N)3GHSSYCY Cable Construction

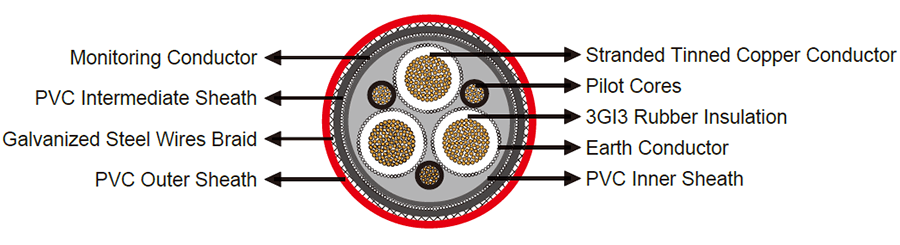

| (N)3GHSSHCH - 3.6/6kV and 6/10kV Cable | (N)3GHSSHCH - 8.7/15kV and 12/20kV Cable | |
|---|---|---|
| VOLTAGE | 3.6/6kV & 6/10kV | 8.7/15kV & 12/20kV |
| PHASE CONDUCTOR | Class 5 Flexible Stranded Copper | |
| INSULATION | Rubber Compound | |
| SEMI-CONDUCTIVE LAYERS | Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation | |
| PROTECTIVE EARTH CONDUCTOR | Individual Copper Wire Screen | |
| CONTROL CONDUCTOR | Class 5 Flexible Stranded Tinned Copper | |
| CENTRAL FILLER | Rubber Compound on a Textile Polyester Support | |
| INNER SHEATH | PVC (Polyvinyl Chloride) | |
| MONITORING CONDUCTOR | Copper Wire | |
| INNER SHEATH 2 | PVC (Polyvinyl Chloride) | |
| ARMOUR | Steel Wire Braid over the Second Inner Sheath | |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | |
(N)3GHSSYCY Cable Characteristics
| (N)3GHSSHCH - 3.6/6kV and 6/10kV Cable | (N)3GHSSHCH - 8.7/15kV and 12/20kV Cable | |
|---|---|---|
| Voltage Rating Uo/U | 3.6/6kV | 6/10kV | 8.7/15kV | 12/20kV |
| Test Voltage | 3.6/6kV: 11kV | 6/10kV: 17kV | 8.7/15kV: 24kV | 12/20kV: 29kV |
| Temperature Range | - | Maximum Short Circuit Temperature: +250°C Maximum Working Temperature on the Conductor: +90°C |
| Ambient Temperature | Fixed: -40°C to +80°C Flexed: +5°C to +80°C |
|
| Minimum Bending Radius | Fixed: 6 x overall diameter Flexed: 10 x overall diameter |
|
(N)3GHSSYCY Cable Features
- Flexibility
- The cable’s flexible design allows it to be moved and used in various locations within the mining or tunneling environment.
- Flame retardancy
- They are flame-retardant, meeting the requirements of VDE 0482-332-1-2/IEC 60332-1-2.
- UV resistance
- They are UV-resistant, making them suitable for both indoor and outdoor applications.
- Temperature Range
- They can withstand a wide range of temperatures, both fixed and moved installations.
- (N)3GHSSYCY - 3.6/6kV and 6/10kV Cable
- (N)3GHSSYCY - 8.7/15kV and 12/20kV Cable
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH + CONTROL+ÜL) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Control Conductor | |||||||
| 3.6/6 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.1 | 47.2 | 52.1 | 1125 | 4160 |
| 3.6/6 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.2 | 49 | 54 | 1575 | 4610 |
| 3.6/6 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 8.9 | 52.5 | 57.8 | 2250 | 5340 |
| 3.6/6 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 10.6 | 56.1 | 61.6 | 3150 | 6410 |
| 3.6/6 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.3 | 60.3 | 66.2 | 4275 | 7650 |
| 3.6/6 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 13.8 | 63.8 | 70 | 5400 | 9040 |
| 3.6/6 | 3+3+3+ÜL | 150 | 70/3E | 2.5ST | 15.5 | 67.2 | 73.7 | 6750 | 10190 |
| 6/10 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.1 | 47.2 | 52.7 | 1125 | 4200 |
| 6/10 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.2 | 49 | 54.6 | 1575 | 4650 |
| 6/10 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 8.9 | 52.5 | 58.4 | 2250 | 5380 |
| 6/10 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 10.6 | 56.1 | 62.2 | 3150 | 6450 |
| 6/10 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.3 | 60.3 | 66.8 | 4275 | 7690 |
| 6/10 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 13.8 | 63.8 | 70.7 | 5400 | 9080 |
| 6/10 | 3+3+3+ÜL | 150 | 70/3E | 2.5ST | 15.5 | 67.2 | 74.4 | 6750 | 10230 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH + CONTROL+ÜL) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Control Conductor | ||||||
| 8.7/15 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.1 | 50.5 | 55.6 | 4530 |
| 8.7/15 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.2 | 52.3 | 57.6 | 5000 |
| 8.7/15 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 8.9 | 55.8 | 61.3 | 5740 |
| 8.7/15 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 10.6 | 59.3 | 65.2 | 6840 |
| 8.7/15 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.3 | 62.8 | 68.9 | 8020 |
| 8.7/15 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 13.8 | 66.2 | 72.6 | 9270 |
| 12/20 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.1 | 52.9 | 58.2 | 4820 |
| 12/20 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.2 | 54.7 | 60.2 | 5290 |
| 12/20 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 8.9 | 58.3 | 64 | 6120 |
| 12/20 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 10.6 | 61.7 | 67.8 | 7210 |
| 12/20 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.3 | 65.2 | 71.5 | 8410 |
| 12/20 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 13.8 | 68.7 | 75.3 | 9700 |
