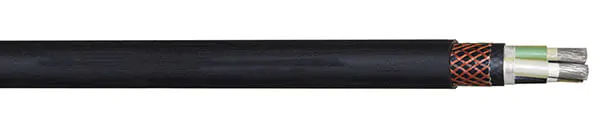

NSHTÖU Cable Description
NSHTÖU cable series includes NSHTÖU-O and (N)SHTÖU-O cables (without earth wire) as well as NSHTÖU-J and (N)SHTÖU-J cables (without green/yellow earth wire), which are oil and UV resistant.
In addition, there is the NSHTÖU-V version for vertical drum applications. For applications such as electric tire gantry cranes (ERTG), the low-voltage drum cable NSHTÖU-FO, which requires integrated optical fibers, is available with 6, 12, 18, or 24 fibers.
NSHTÖU Cable Construction
| (N)SHTÖU-J + FO 0.6/1kV Cable | NSHTÖU-O/J 0.6/1kV Cable | (N)SHTOU-O/J PUR 0.6/1kV Cable | (N)SHTOU-V Vertical Reeling Cable | (N)SHTÖU-K 0.6/1kV Cable | (N)SHTOU-FO L~WL Reeling Cable | |
|---|---|---|---|---|---|---|
| VOLTAGE | 0.6/1kV | |||||
| CONDUCTOR | Class 5 Flexible Stranded Tinned or Bare Copper | Class 5 Flexible Stranded Tinned Copper | Class 5 tinned Copper | Class 5 flexible stranded tinned Copper | ||
| INSULATION | Rubber Compound | HEPR (Hard Ethylene Propylene Rubber) | ||||
| EARTH CONDUCTOR | Tinned Copper Conductor, Rubber Insulated | - | ||||
| FIBRE OPTIC MODULE | A-D(ZN)13Y 6, 12, 18 or 24 fibres G50/125, G62,5/125 or E9/125 | - | ||||
| INNER SHEATH | Rubber Compound | Halogen Free PUR (Polyurethane) | Rubber compound | |||
| BRAID | Anti-Twist Polyester | Anti-torsion textile braid embedded in sheath | ||||
| OUTER SHEATH | Rubber | Halogen-Free PUR (Polyurethane) | Rubber compound | |||
| OUTER SHEATH COLOUR | Yellow | - | ||||
| OPTICAL FIBRES | - | 6, 12, 18 or 24 fibres laid up around a central support element | ||||
NSHTÖU Cable Characteristics
| (N)SHTÖU-J + FO 0.6/1kV Cable | NSHTÖU-O/J 0.6/1kV Cable | (N)SHTOU-O/J PUR 0.6/1kV Cable | (N)SHTOU-V Vertical Reeling Cable | (N)SHTÖU-K 0.6/1kV Cable | (N)SHTOU-FO L~WL Reeling Cable | |
|---|---|---|---|---|---|---|
| Voltage Rating Uo/U | 0.6/1kV | |||||
| Temperature Rating | Max. conductor operating temperature: +90°C Max. conductor temperature during short circuit: +250°C Minimum ambient temperature for fixed installation: -40°C Minimum ambient temperature for mobile installation: -25°C | Fixed: -40°C to +60°C Flexed: -25°C to +60°C | Flexing: -40°C to 90°C Flexed: -50°C to 90°C | Fixed: -40°C to +80°C Flexed: -25°C to +80°C | Fixed: -45°C to +60°C Flexed: -25°C to +60°C | Fixed: -40°C to +80°C Flexed: -25°C to +80°C |
| Minimum Bending Radius | - | Fixed: 4 x overall diameter Flexed: 5 x overall diameter |
||||
| Maximum Tensile Load | - | 20 N/mm² | 30 N/mm² | |||
| Travel Speed | - | In festoon: up to 180m/min horizontal / 120m/min main gantry | In festoon: up to 240m/min In reeling: up to 120m/min horizontal | In festoon: up to 180m/min horizontal / 120m/min vertical | ||
NSHTÖU Cable Reeling Speeds
- NSHTÖU: Maximum working speed 120m/min
- (N)SHTÖU PUR: Maximum working speed 180m/min
- (N)SHTÖU-K: Festoon: up to 240m/min / Reeling: up to 120m/min horizontal
- (N)SHTÖU-V: Up to 180m/min horizontal / 120m/min main gantry
- (N)SHTÖU-FO: Up to 180m/min horizontal / 120m/min vertical
NSHTÖU Cable Applications
- Construction machinery, conveying and lifting equipment, and crane systems.
- Harsh operating environments such as mobile transport equipment, railway locomotives, and mining.
- Dry, damp, and wet indoor as well as outdoor installations.

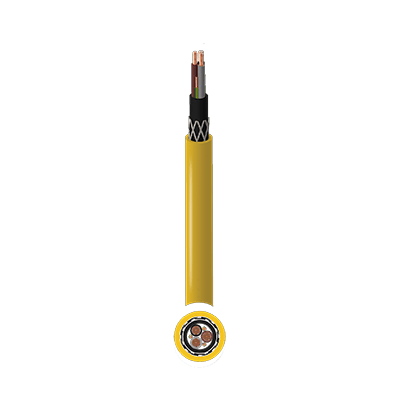

- (N)SHTÖU-J + FO 0.6/1kV Cable
- NSHTÖU-O/J 0.6/1kV Cable

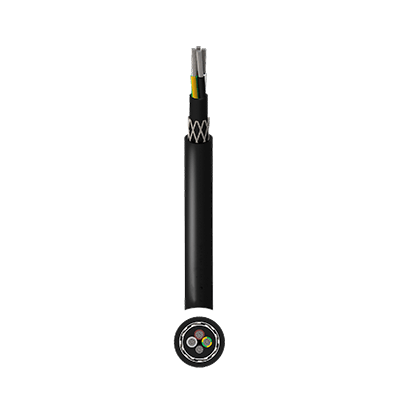

- (N)SHTÖU-O/J PUR 0.6/1kV Cable
- (N)SHTÖU-V Vertical Reeling Cable

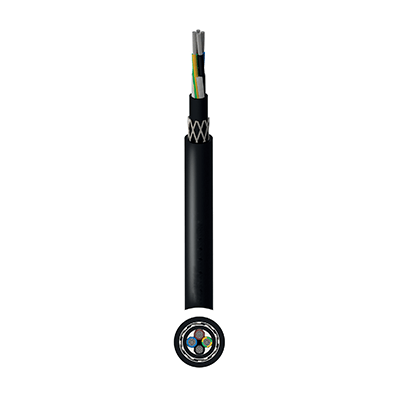

- (N)SHTÖU-K 0.6/1kV Cable

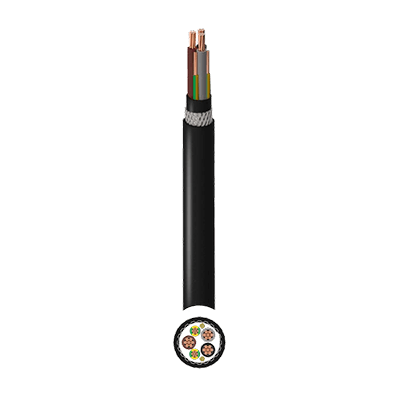

- (N)SHTOU-FO L~WL Reeling Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CONDUCTOR DIAMETER mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MAXIMUM TENSILE LOAD N |
|---|---|---|---|---|---|
| 3+2+FO | 35+16/2 | 7.5 | 41.4 | 2987 | 2100 |
| 3+2+FO | 50+25/2 | 9.3 | 41.7 | 3395 | 3000 |
| 3+2+FO | 70+35/2 | 11.1 | 45.5 | 4318 | 4200 |
| 3+2+FO | 95+50/2 | 13 | 49.6 | 5372 | 5700 |
| 3+2+FO | 120+70/2 | 14.5 | 57.2 | 7131 | 7200 |
| 3+2+FO | 150+70/2 | 16.2 | 57.4 | 7849 | 9000 |
| 3+2+FO | 185+95/2 | 18.3 | 66.8 | 10006 | 11100 |
| 3+2+FO | 240+120/2 | 20.7 | 72.8 | 12649 | 14400 |
| 3+2+FO | 300+150/2 | 24.2 | 81.7 | 15382 | 18000 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 4 | 1.5 | 14.6 | 295 |
| 4 | 2.5 | 16.2 | 370 |
| 4 | 4 | 29.3 | 520 |
| 4 | 6 | 21.7 | 690 |
| 4 | 10 | 25.9 | 1025 |
| 4 | 16 | 29.1 | 1305 |
| 4 | 25 | 34.4 | 2070 |
| 4 | 35 | 38.6 | 2740 |
| 4 | 50 | 45 | 3790 |
| 4 | 70 | 51 | 5356 |
| 4 | 95 | 60.6 | 7018 |
| 4 | 120 | 63.5 | 8220 |
| 4 | 150 | 66.5 | 8905 |
| 5 | 4 | 20.5 | 640 |
| 5 | 6 | 23.2 | 855 |
| 5 | 10 | 27.8 | 1200 |
| 5 | 1.5 | 15.6 | 340 |
| 5 | 2.5 | 18.6 | 490 |
| 5 | 16 | 31.7 | 1745 |
| 7 | 1.5 | 17.6 | 420 |
| 7 | 2.5 | 20.8 | 615 |
| 12 | 1.5 | 21.3 | 630 |
| 12 | 2.5 | 24.9 | 895 |
| 18 | 1.5 | 24.8 | 895 |
| 18 | 2.5 | 28.2 | 1195 |
| 24 | 1.5 | 28 | 1100 |
| 24 | 2.5 | 33 | 1565 |
| 30 | 1.5 | 30.3 | 1345 |
| 30 | 2.5 | 34.6 | 183 |
| 42 | 1.5 | 35.2 | 1773 |
| 45 | 2.5 | 43.8 | 2863 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 3 | 25+16 | 6.9 | 27.3 | 2250 | 1390 |
| 3 | 35+16 | 7.8 | 29.8 | 3150 | 1740 |
| 3 | 50+25 | 9.3 | 35 | 4500 | 2470 |
| 3 | 70+35 | 11.1 | 38.9 | 6300 | 3290 |
| 3 | 95+50 | 12.7 | 43.2 | 8550 | 4090 |
| 3 | 120+70 | 14.5 | 47.1 | 10800 | 5220 |
| 3 | 150+70 | 16.7 | 53.7 | 13500 | 6460 |
| 3 | 185+95 | 17.6 | 57.3 | 16650 | 7720 |
| 4G | 1.5 | 1.5 | 11.7 | 2180 | 170 |
| 4G | 2.5 | 1.9 | 19.9 | 2300 | 220 |
| 4G | 4 | 2.4 | 16.7 | 480 | 380 |
| 4G | 6 | 2.9 | 18.2 | 720 | 490 |
| 4G | 10 | 3.8 | 21.5 | 1200 | 720 |
| 4G | 16 | 4.8 | 24 | 1920 | 990 |
| 4G | 25 | 6.9 | 30.7 | 3000 | 1610 |
| 4G | 35 | 7.8 | 33.7 | 4200 | 2090 |
| 4G | 50 | 9.3 | 38.2 | 6000 | 2830 |
| 4G | 70 | 11.1 | 43.6 | 8400 | 3720 |
| 4G | 95 | 12.7 | 47.5 | 11400 | 4770 |
| 4G | 120 | 14.5 | 52.7 | 14400 | 6040 |
| 4G | 150 | 16.7 | 59 | 18000 | 7520 |
| 5G | 1.5 | 1.5 | 12.3 | 225 | 190 |
| 5G | 2.5 | 1.9 | 13.7 | 2375 | 260 |
| 5G | 4 | 2.4 | 18 | 600 | 460 |
| 5G | 6 | 2.9 | 19.6 | 900 | 590 |
| 5G | 10 | 3.8 | 23.4 | 1500 | 870 |
| 5G | 16 | 4,8 | 36 | 2400 | 1200 |
| 5G | 25 | 6.9 | 33.4 | 3750 | 1970 |
| 5G | 35 | 7.8 | 36.5 | 5250 | 2560 |
| 7G | 1.5 | 1.5 | 14.1 | 2315 | 260 |
| 7G | 2.5 | 1.9 | 15.8 | 2525 | 360 |
| 12G | 1.5 | 1.5 | 17.9 | 2540 | 450 |
| 12G | 2.5 | 1.9 | 20.4 | 2900 | 590 |
| 18G | 1.5 | 1.5 | 18.3 | 2810 | 480 |
| 18G | 2.5 | 1.9 | 20.8 | 3350 | 660 |
| 24G | 1.5 | 1.5 | 20.9 | 3080 | 630 |
| 24G | 2.5 | 1.9 | 24 | 3800 | 910 |
| 30G | 1.5 | 1.5 | 22.9 | 3350 | 770 |
| 30G | 2.5 | 1.9 | 26,4 | 4250 | 1120 |
| 36G | 1.5 | 1.5 | 23.3 | 3620 | 800 |
| 36G | 2.5 | 1.9 | 26.8 | 4700 | 1170 |
| 42G | 1.5 | 1.5 | 24.8 | 3890 | 910 |
| 42G | 2.5 | 1.9 | 29.3 | 5150 | 1390 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Minimum | Maximum | |||
| 4 | 10 | 21.7 | 27.8 | 1020 |
| 4 | 16 | 25.4 | 32.3 | 1380 |
| 4 | 25 | 29.6 | 39.8 | 1980 |
| 4 | 35 | 32.6 | 43.6 | 2620 |
| 4 | 50 | 40.8 | 51 | 3610 |
| 4 | 70 | 46.5 | 58.6 | 5300 |
| 4 | 95 | 52.7 | 66.2 | 7010 |
| 6 | 2.5 | 18.6 | 21.3 | 590 |
| 7 | 1.5 | 16.9 | 19.2 | 430 |
| 7 | 4 | 21.4 | 23.5 | 820 |
| 12 | 1.5 | 23 | 25.4 | 810 |
| 12 | 2.5 | 25.5 | 28.8 | 1050 |
| 12 | 4 | 29.8 | 33 | 1550 |
| 18 | 1.5 | 23.1 | 25.6 | 870 |
| 18 | 2.5 | 25.7 | 29.2 | 1130 |
| 18 | 4 | 30 | 33.2 | 1680 |
| 20 | 6 | 39 | 42.5 | 2800 |
| 24 | 1.5 | 26.5 | 29.2 | 1100 |
| 24 | 2.5 | 29.8 | 33.2 | 1560 |
| 30 | 2.5 | 34 | 37.2 | 2000 |
| 30 | 1.5 | 29.6 | 33.1 | 1420 |
| 36 | 2.5 | 34.2 | 37.4 | 2070 |
| 36 | 1.5 | 29.8 | 34 | 1460 |
| 42 | 2.5 | 35 | 38 | 2160 |
| 44 | 2.5 | 36.1 | 39 | 2300 |
| 45 | 2.5 | 39 | 41 | 2400 |
| 49 | 1 | 27 | 30 | 1300 |
| 56 | 2.5 | 42.1 | 45.2 | 3040 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Minimum | Maximum | |||
| 3 | 1.5 | 11.2 | 14.4 | 236 |
| 3 | 2.5 | 12.6 | 16.1 | 305 |
| 3 | 4 | 15.3 | 19.6 | 395 |
| 3 | 6 | 16.4 | 20.9 | 525 |
| 3 | 10 | 20.2 | 25.7 | 765 |
| 3 | 16 | 22.5 | 28.6 | 1080 |
| 3 | 25 | 27.7 | 35 | 1470 |
| 3 | 35 | 31.7 | 40 | 2030 |
| 3 | 50 | 37.1 | 46.8 | 2680 |
| 3 | 70 | 42.5 | 53.5 | 3530 |
| 3 | 95 | 48.2 | 60.6 | 4400 |
| 3 | 120 | 51.6 | 64.9 | 5250 |
| 3 | 150 | 56.2 | 70.7 | 7040 |
| 3 | 185 | 63.3 | 79.4 | 8320 |
| 3 | 240 | 69.9 | 87.7 | 5730 |
| 3 | 25 + 16 | 30.4 | 38.4 | 2720 |
| 3 | 35 + 16 | 34 | 42.8 | 3010 |
| 3 | 50 + 25 | 38.6 | 48.6 | 3430 |
| 3 | 95 + 50 | 53.1 | 66.7 | 5405 |
| 3 | 120 + 70 | 55.5 | 69.7 | 6818 |
| 3 | 150 + 70 | 64 | 80.4 | 9190 |
| 3 | 185 + 95 | 68.8 | 86.4 | 9850 |
| 3 + 3 | 50 + 25 / 3 | 37.1 | 46.8 | 2730 |
| 3 + 3 | 70 + 35 / 3 | 42.5 | 53.5 | 3740 |
| 3 + 3 | 120 + 70 / 3 | 51.6 | 64.9 | 6220 |
| 3 + 3 | 150 + 70 / 3 | 56.2 | 70.7 | 7480 |
| 3 + 3 | 185+ x 95 / 3 | 63.3 | 79.4 | 9020 |
| 3 + 3 | 240 + 120 / 3 | 69.9 | 87.7 | 11760 |
| 4 | 1.5 | 12.1 | 15.5 | 274 |
| 4 | 2.5 | 14.7 | 18.7 | 416 |
| 4 | 4 | 16.6 | 21.1 | 550 |
| 4 | 6 | 17.7 | 22.6 | 683 |
| 4 | 10 | 22 | 27.8 | 1018 |
| 4 | 16 | 25.5 | 32.3 | 1370 |
| 4 | 25 | 31.6 | 39.8 | 1970 |
| 4 | 35 | 34.5 | 43.6 | 2610 |
| 4 | 50 | 40.5 | 51 | 3600 |
| 4 | 70 | 46.5 | 58.6 | 5356 |
| 4 | 95 | 52.7 | 66.2 | 7018 |
| 4 | 120 | 58.4 | 73.3 | 8220 |
| 4 | 150 | 63.4 | 79.7 | 8905 |
| 4 | 185 | 71.2 | 89.4 | 10730 |
| 4 | 240 | 78.2 | 98.2 | 13560 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|
| Minimum | Maximum | |||
| 3 + 2 + FO | 35 + 16 / 2 | 35.7 | 38.7 | 2400 |
| 3 + 2 + FO | 50 + 25 / 2 | 37.1 | 46.8 | 3200 |
| 3 + 2 + FO | 70 + 35 / 2 | 42.5 | 53.5 | 4120 |
| 3 + 2 + FO | 95 + 50 / 2 | 48.2 | 60.6 | 4990 |
| 3 + 2 + FO | 120 + 70 / 2 | 51.6 | 64.9 | 6370 |
| 3 + 2 + FO | 150 + 70 / 2 | 56.2 | 70.7 | 7480 |
| 3 + 2 + FO | 185 + 95 / 2 | 63.3 | 79.4 | 9020 |
| 3 + 2 + FO | 240 + 120 / 2 | 69.7 | 87.7 | 12320 |
